Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

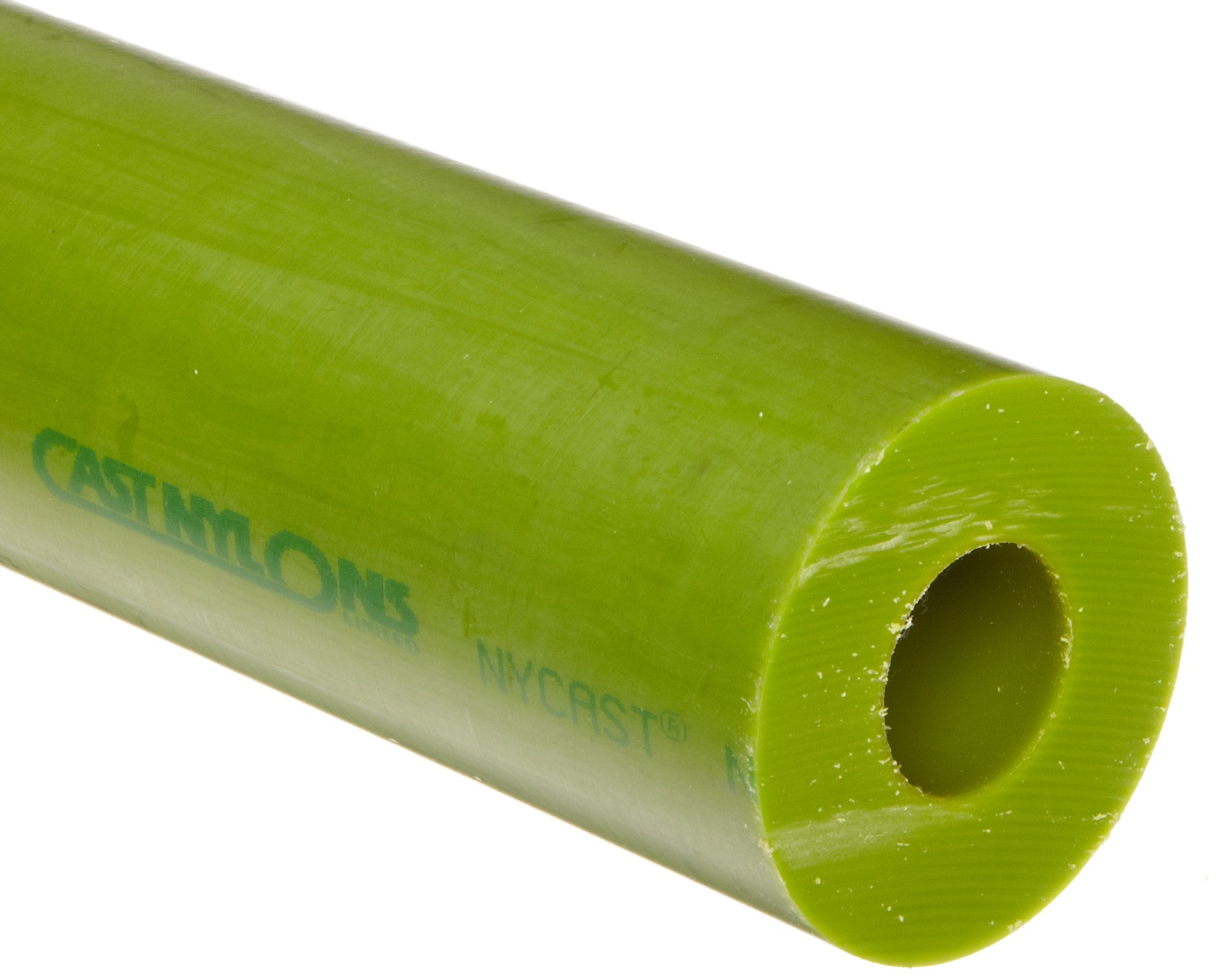

Oil-Filled Cast Nylon 6 Round Rod, Green, Smooth Finish, ASTM D5989

Be the first to review this item

Product Specifications
Item Shape
Hollow Round Rod
Tolerance Held
Standard
Color Name
Green
Brand Name
Small Parts
Length Tolerance
±3/16  inches
Upper Temperature Range
230  Degrees Fahrenheit
Exterior Finish
Smooth
Hardness
Rockwell R100-R115
Specification Met
ASTM D5989
UNSPSC Code
40183000
LowerTemperature Range
32  Degrees Fahrenheit
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Jul 30? Order in-stock items in the next 14 hrs 9 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 29 Next 9 »
Inside Diameter Outside Diameter Wall Thickness Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-20 of 29 Next 9 »
3-1/2" 5-1/2" 1" 1 ft 1 B0070ZMKJC Temporarily out of stock. Order now and we'll deliver when available. $105.44 Buy Options
3-1/2" 5" 3/4" 1 ft 1 B0070ZMIJE Temporarily out of stock. Order now and we'll deliver when available. $86.08 Buy Options
1" 2-1/4" 5/8" 1 ft 1 B0070ZLWVY 2 $33.74 Buy Options
1-1/2" 3" 3/4" 1 ft 1 B0070ZM4H0 Temporarily out of stock. Order now and we'll deliver when available. $45.86 Buy Options
1-1/2" 2-1/2" 1/2" 1 ft 1 B0070ZLZZC 2 $32.00 Buy Options
1-1/4" 2-1/4" 1/2" 1 ft 1 B0070ZLXY0 1 $30.80 Buy Options
4-1/2" 5-1/2" 1/2" 1 ft 1 B0070ZMMJA Temporarily out of stock. Order now and we'll deliver when available. $77.16 Buy Options
3" 6" 1-1/2" 1 ft 1 B0070ZMNK8 2 $145.77 Buy Options
3-1/2" 4-1/2" 1/2" 1 ft 1 B0070ZMGKA 2 $58.72 Buy Options
2-1/2" 4-1/2" 1" 1 ft 1 B0070ZMECK Temporarily out of stock. Order now and we'll deliver when available. $88.80 Buy Options
1-1/2" 2" 1/4" 1 ft 1 B0070ZLVU6 2 $19.26 Buy Options
1" 2" 1/2" 1 ft 1 B0070ZLV1K 2 $25.14 Buy Options
1-1/2" 2-3/4" 5/8" 1 ft 1 B0070ZM10U 2 $44.15 Buy Options
1" 3" 1" 1 ft 1 B0070ZM33K Temporarily out of stock. Order now and we'll deliver when available. $53.08 Buy Options
4" 5" 1/2" 1 ft 1 B0070ZMJHA 1 $67.74 Buy Options
3" 4-1/2" 3/4" 1 ft 1 B0070ZMFCO Temporarily out of stock. Order now and we'll deliver when available. $76.98 Buy Options
3" 5" 1" 1 ft 1 B0070ZMHO0 Temporarily out of stock. Order now and we'll deliver when available. $98.63 Buy Options
2-1/4" 3-1/4" 1/2" 1 ft 1 B0070ZM8RG 2 $44.90 Buy Options
3" 4" 1/2" 1 ft 1 B0070ZMDCQ 2 $52.01 Buy Options
1" 2-1/2" 3/4" 1 ft 1 B0070ZLZ84 2 $39.68 Buy Options

Key Features

  • Smooth finish
  • Ultra slippery oil filled cast nylon 6
  • Meets ASTM D4066 specification
  • Meets ASTM D5989 specification

Product Description

Cast Nylon Oil Filled Sheet was developed to extend the wear-resistant properties of un-lubricated or dry lubricated materials such as MoS2 filled nylons. Will last 5 to 7 times longer than un-lubricated or MoS2 dry lubricated cast nylons.
