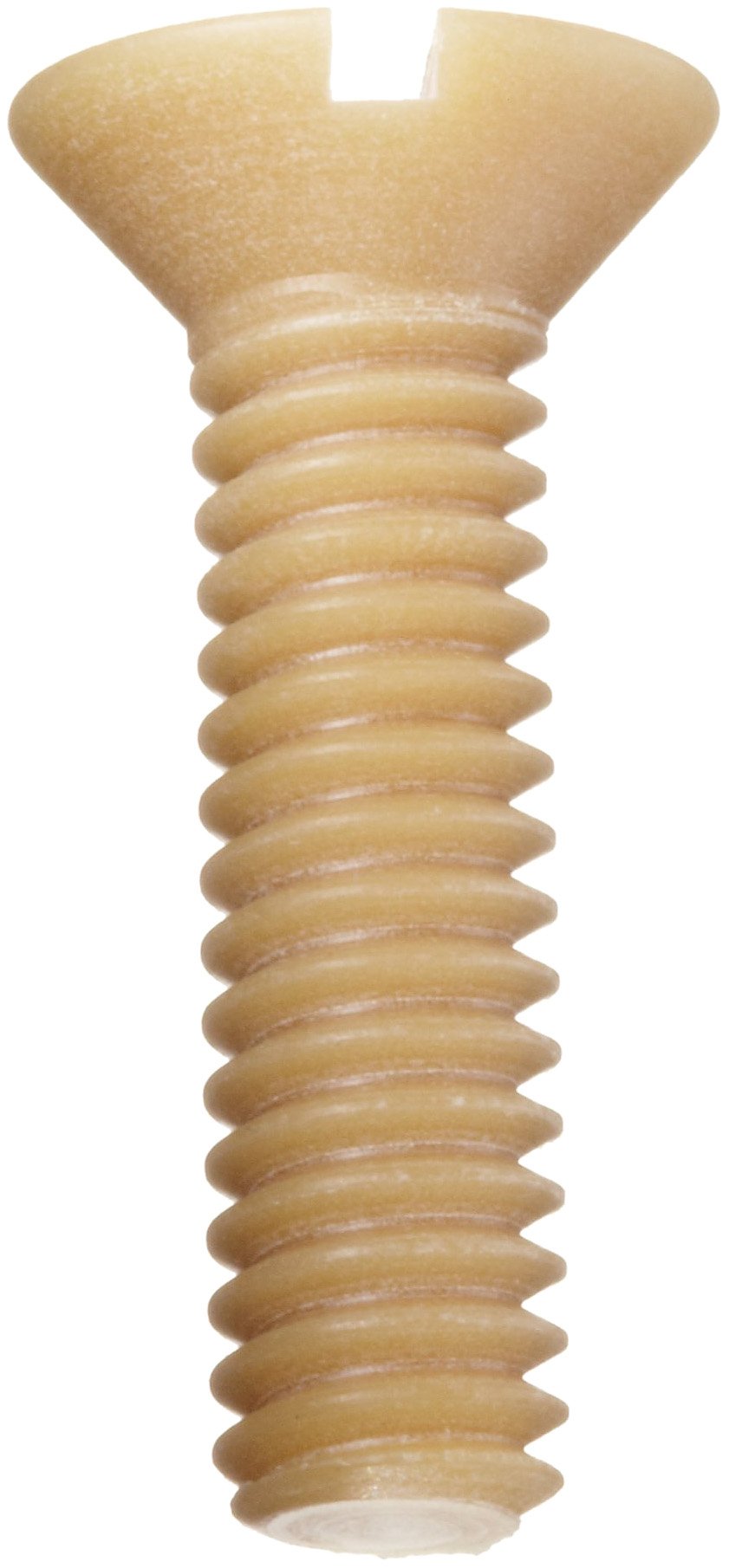

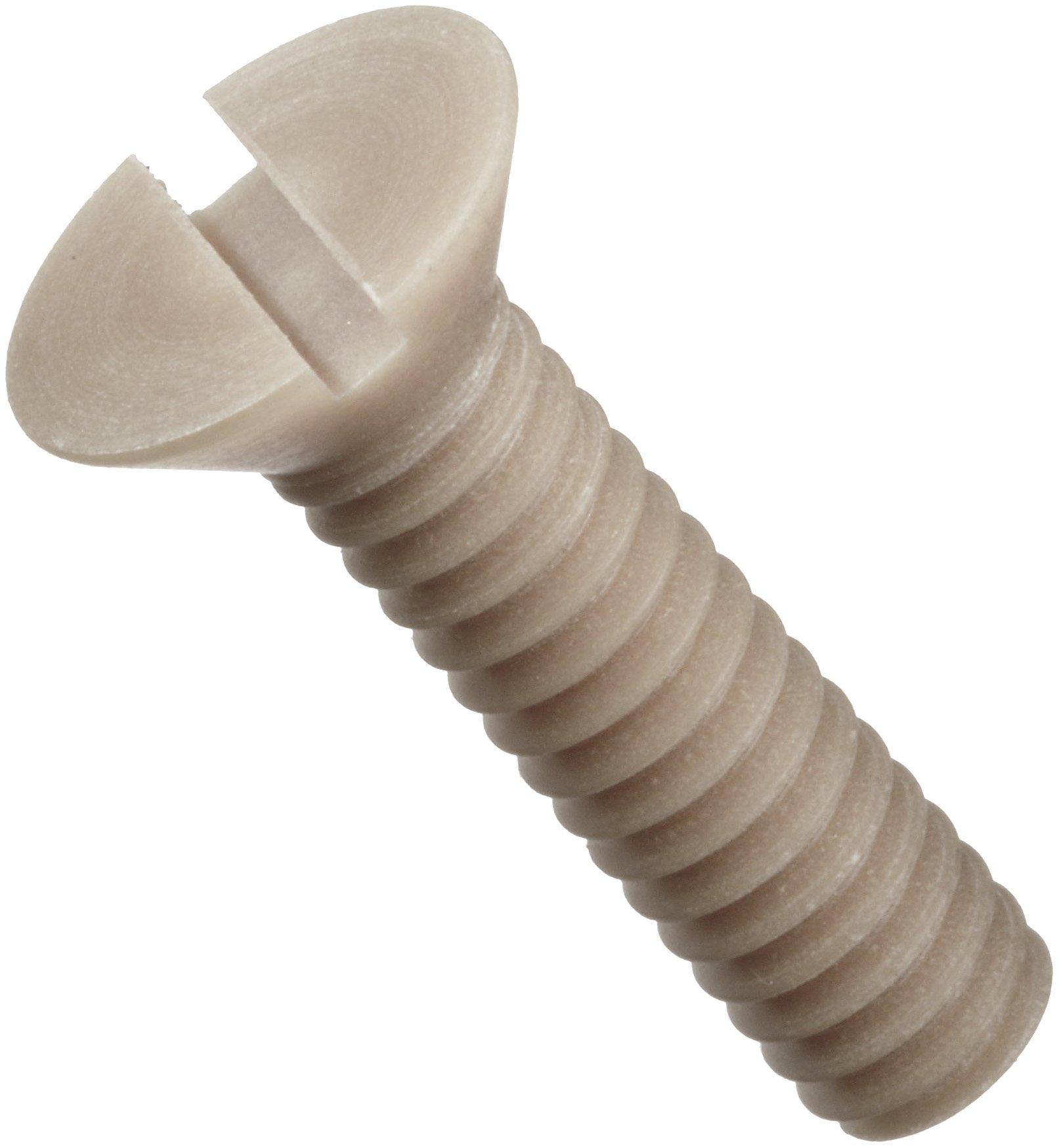

Ultem 2300 Machine Screw, Flat Head, Slotted Drive
Be the first to review this item
Product Specifications
- Brand Name
- Small Parts
- Drive Style
- Slotted
- Exterior Finish
- Plain
- Head Angle
- 82 Degrees
- Head Style
- Flat
- Material Type
- PEI (Polyetherimide)
- Part Number
- B003R7JEYQ
- Self Locking Mechanism
- None
- System of Measurement
- Inch
- Thread Style
- Right Hand
These items ship for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Wednesday, May 29? Order in-stock items in the next 2 days 15 hours 26 minutes and choose One-Day Shipping at checkout.
Key Features
- Machine Screws are often used with nuts or driven into tapped holes
- Ultem 2300 is suited for applications that require high tensile strength, hardness and microwave transparency
- Flat head style allows fastener to sit flush to the surface
- Driven by a flat-bladed driver
Product Description
Machine Screws, also referred to as Machine Bolts, are often used with nuts or driven into tapped holes. They come in a variety of head types and drive styles, but are generally available in smaller sizes.
Ultem 2300 is a glass reinforced polyetherimide which maintains its hardness and mechanical properties from -40 to 356 degrees Fahrenheit. Ultem 2300 is radiation resistant, microwave transparent and is naturally flame retardant. Ultem has a high dielectric strength, rated at 770 volts per millimeter, which indicates good insulating properties. Ultem 2300 is as strong or stronger than glass-filled PEEK, with a tensile strength of 24,500 psi (pounds per square inch). Ultem resists water absorption, absorbing 0.16% of its weight in water after 24 hours of exposure.
Flat head fasteners are designed to fit flush to the surface when used with countersunk holes. Length is measured from the top of the head. Common applications for slotted screws include woodworking, although the drive style is not designed to be used with power drivers.
A threaded fastener's size name includes information about the major external diameter, followed by the threads per inch, which indicates if it is coarse or fine.
