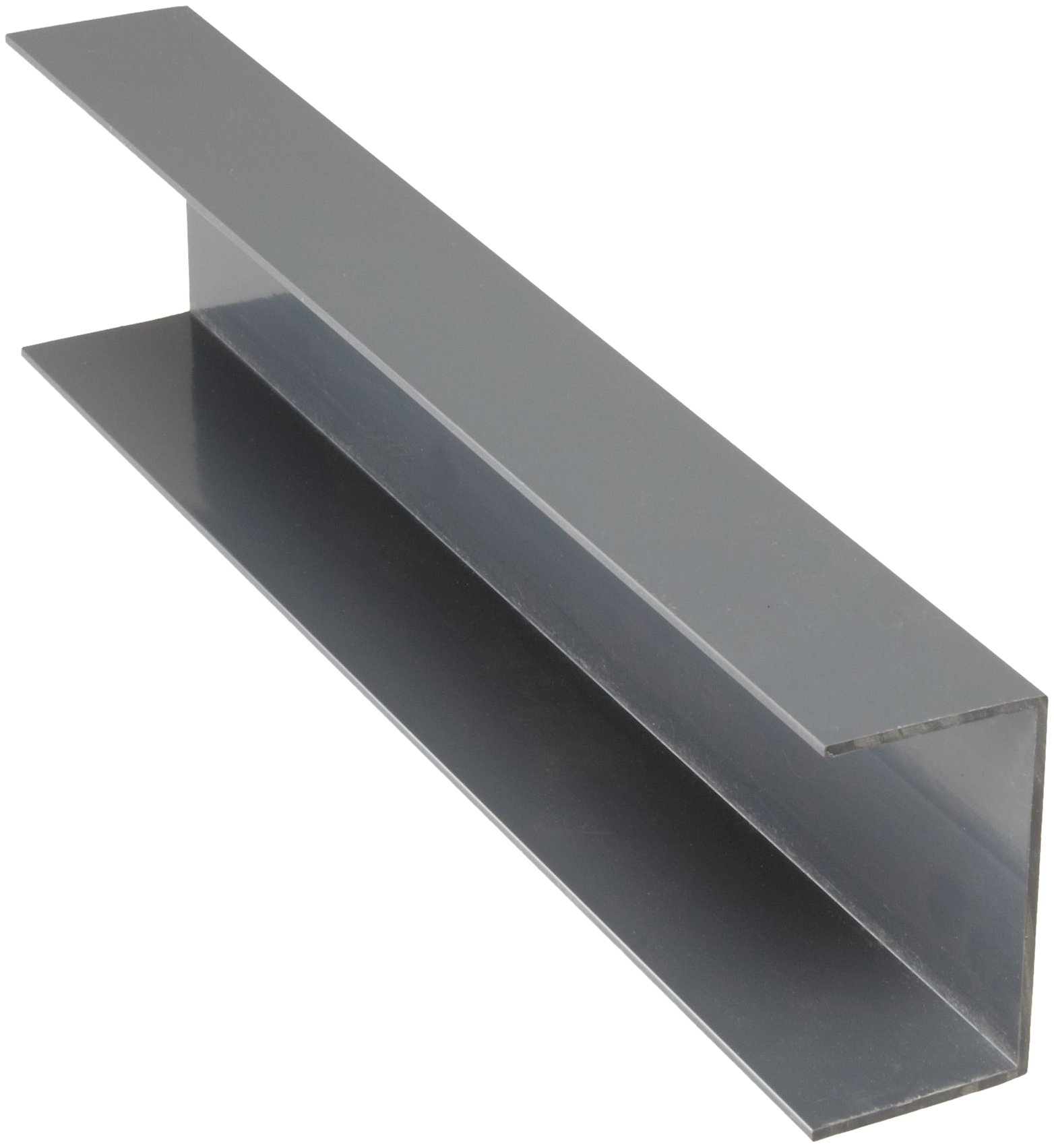

PVC (Polyvinyl Chloride) U-Channel, Opaque Gray, Equal Leg Length, Rounded Corners, UL 94/ASTM D1784, 1.456" Leg Lengths, 2.51" Width, 0.08" Wall Thickness, 12" Length

Be the first to review this item

ASIN B000RFU2O2

Product Specifications
Brand Name
Small Parts
Part Number
PVCU-006-12
Overall Length
12  inches
Length Tolerance
+0.000/-0.187  inches
LowerTemperature Range
-10  Degrees Fahrenheit
Upper Temperature Range
155  Degrees Fahrenheit
Base Width
2.51  inches
Finish
Smooth
Indentation Hardness
80-89 shore_d
Leg Length
1.456  inches
Pkg Qty
1
Tensile Strength Max
6600  PSI
Wall Thickness
0.08  inches
Specification for this product family (See all  products)
Item Shape
U-Channel
Material Type
PVC (Polyvinyl Chloride)
Color Name
Gray
Coefficient of Friction
0.6
Specification Met
UL 94 , ASTM D1748
Material Composition
Solid
Opacity
Opaque
Style Name
Equal Leg Length
UNSPSC Code
30000000
System of Measurement
Inch
Corner Style
Rounded

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Jul 30? Order in-stock items in the next 13 hrs 12 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • PVC offers an excellent balance of strength and weight, and is typically resistant to acids, alkalis, and most other inorganic chemicals
  • Color is opaque gray
  • Meets UL 94 and ASTM D1784 specifications
  • Legs are equal length
  • Corners are rounded

Package Details

Shipping Weight: 0.25 pounds
Package Size: 12 x 2.5 x 1.5 inches

Product Description

The opaque gray PVC U-channel has equal leg length and rounded corners and meets Underwriters Laboratories UL 94 and American Society for Testing and Materials ASTM D1784 specifications. PVC (polyvinyl chloride), also known as vinyl, is a durable plastic that provides an excellent balance of strength and weight, and is typically resistant to acids, alkalis, and most other inorganic chemicals. The material is also dimensionally stable, due in part to its low moisture absorption.

Plastic refers to a group of synthetic or semi-synthetic materials that have been engineered to achieve specific properties. The most notable characteristics of plastics are its low weight, machinability, corrosion resistance, and typically good thermal and electrical insulating properties. Certain plastic grades also offer optical transparency similar to glass, low-friction or self-lubricating surfaces, and exceptional impact resistance. Depending on their properties, certain plastic grades can be used as alternatives to metal, glass, and ceramic. Unlike metal, plastic may experience creep, which is deformation caused by longtime exposure to a constant load.

Tensile strength, used to indicate the material’s overall strength, is the peak stress it can withstand before it breaks. Corrosion resistance describes the material's ability to prevent deterioration caused by atmosphere, moisture, or other medium. Wear resistance indicates the ability to prevent surface damage caused by contact with other surfaces. Toughness describes the material's ability to absorb energy before breaking, while hardness (commonly measured as indentation hardness) describes its resistance to permanent surface deformation. Impact resistance is the measure of a material’s ability to absorb a shock of energy before breaking.
