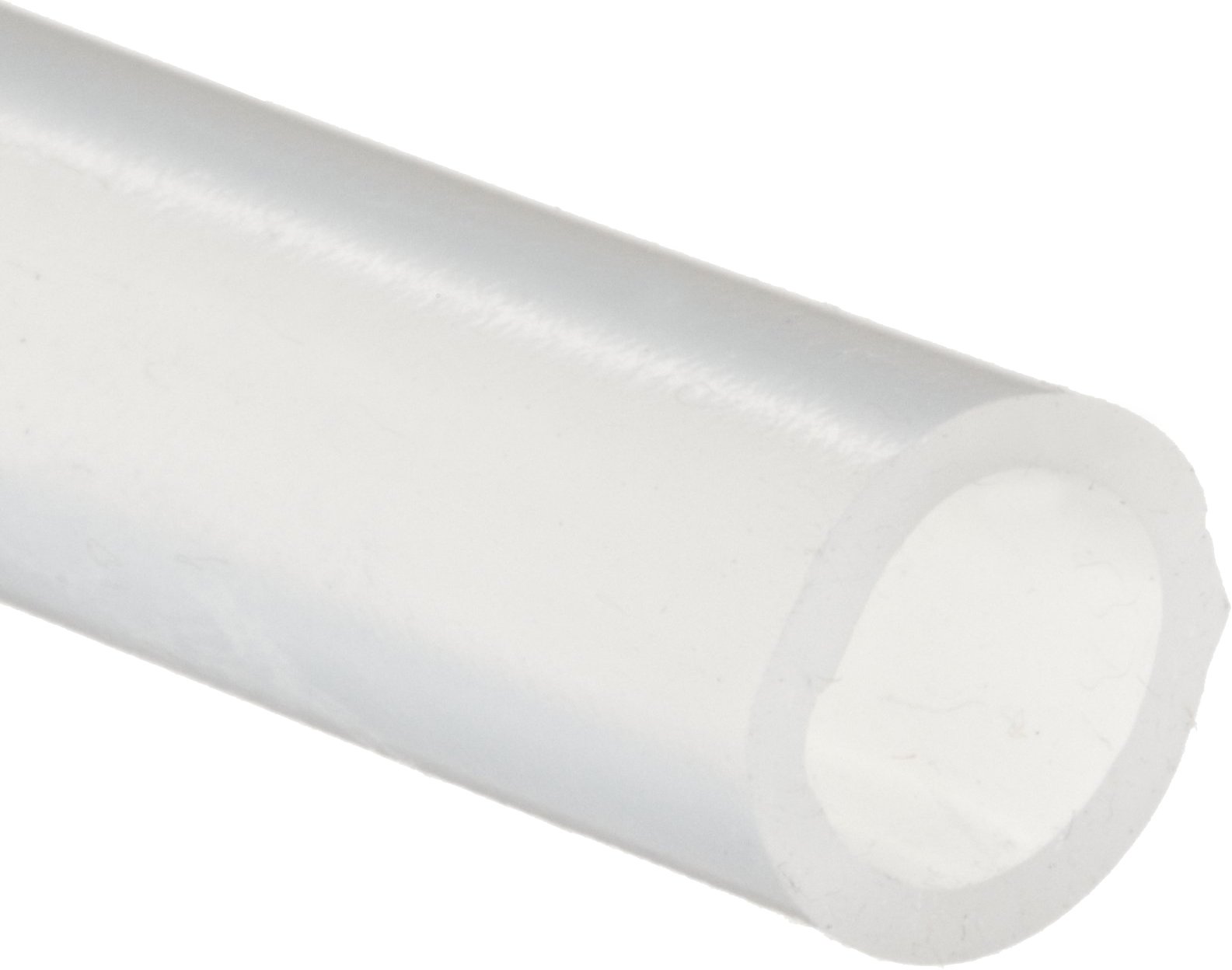

Tygon Versilic SPX-50 High Strength Silicone Tubing, Translucent

Be the first to review this item

Product Specifications
Item Shape
Round
Durometer
50A
Material Type
Silicone Rubber
Color Name
Translucent Amber
Structure Description
Very Flexible
Brand Name
Tygon
Specification Met
FDA 3-A , FDA NSF , USP Class VI
Hardness
50A
UNSPSC Code
40183000

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Nov 3? Order in-stock items in the next 1 day 6 hrs 27 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 23 Next 3 »
Item diameter string Inside diameter string Item length string ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-20 of 23 Next 3 »
1/2 inches 3/8 inches 10 feet B000FOYKTS yes $33.09 Buy Options
1/2 inches 3/8 inches 25 feet B000FOV078 yes $69.64 Buy Options
1/2 inches 3/8 inches 50 feet B000FN160U yes $84.57 Buy Options
1/4 inches 3/16 inches 25 feet B000FP0IEI yes $34.01 Buy Options
1/4 inches 3/16 inches 50 feet B000FN15ZQ yes $35.54 Buy Options
1/8 inches 1/16 inches 10 feet B000FOYKQQ yes $20.79 Buy Options
1/8 inches 1/16 inches 25 feet B000FOYKRK yes $37.20 Buy Options
1/8 inches 1/16 inches 50 feet B000FMWW40 yes $32.31 Buy Options
3/16 inches 1/8 inches 10 feet B000FOV05U yes $22.91 Buy Options
3/16 inches 1/8 inches 25 feet B000FOWFXQ yes $39.36 Buy Options
3/16 inches 1/8 inches 50 feet B000FMWW72 Usually ships in 1 to 3 months $37.54 Buy Options
3/32 inches 1/32 inches 10 feet B000FOYKQ6 yes $17.68 Buy Options
3/32 inches 1/32 inches 25 feet B000FN1I3A yes $42.23 Buy Options
3/32 inches 1/32 inches 50 feet B000FMWW36 yes $30.91 Buy Options
5/16 inches 1/4 inches 10 feet B000FP0IES yes $24.07 Buy Options
5/16 inches 1/4 inches 25 feet B000FP0IF2 yes $46.50 Buy Options
5/16 inches 1/4 inches 50 feet B000FN1I80 yes $44.37 Buy Options
5/32 inches 3/32 inches 10 feet B000FP0IDE Usually ships in 1 to 2 months $21.00 Buy Options
5/32 inches 3/32 inches 25 feet B000FP0IDO yes $38.56 Buy Options
5/32 inches 3/32 inches 50 feet B000FMYZ0O yes $34.61 Buy Options

Key Features

  • High strength silicone tubing for flexibility and durability in medical, veterinary, and pharmaceutical applications
  • Translucent Versilic formulation SPX-50 silicone to allow visual flow monitoring with reduced exposure to ozone and UV light
  • Smooth bore to allow full drainage and prevent particulate build-up and odor and flavor transmission
  • Working temperature range of -75 to 350 degrees F and durometer (hardness) of 50A
  • Meets USP Class VI, FDA CFR21 177.2600, NSF 51, and 3-A standards for quality assurance

Product Description

This translucent silicone tubing is made of Versilic formulation SPX-50 silicone and is designed for long-term use in medical, veterinary, and pharmaceutical applications. The translucent tubing permits limited light filtration while still allowing visual flow monitoring. The Tygon Versilic formulation SPX-50 silicone construction uses a combination of silicone elastomers to provide flexibility and greater durability than typical silicone tubing. Resistant to high heats, the tubing is non-toxic and non-hemolytic to reduce the risk of inflammation in surgical applications. A smooth inner bore prevents particulate build-up and limits absorption and adsorption to help preserve fluid integrity. The tubing has a working temperature range of -75 to 350 degrees F, a durometer (hardness) of 50A, and working pressure ratings that vary by tube size. It meets U.S. Pharmacopoeia (USP) Class VI criteria for medical grade plastic materials, and U.S. Food and Drug Administration (FDA) 21 CFR 177.2600, National Sanitation Foundation (NSF) 51, and 3-A Sanitary Standards criteria for food and dairy contact for quality assurance. This silicone tubing is not designed for use as an implant material, but it is suitable for use with anesthesia and respiratory equipment, sterile filling systems, electronics equipment, appliance manufacturing, and dairy processing, among other applications.

Plastic tubing is used to transfer liquids, air, or solids, and it is characterized by a round, rectangular, or square shape and a hollow center. Plastic tubing is crimp-resistant and varies in bend radius (flexibility), chemical resistance, wall thickness, durometer hardness, and temperature and pressure handling abilities. The clarity of plastic tubing may be transparent (clear), translucent (semi-clear), or opaque (solid), and the tubing's coloring may indicate suitable applications. Barbed fittings are used to connect tubing or redirect flow in a fluid handling system. Plastic tubing is used in a wide variety of industries, such as agriculture, automotive, laboratory, and medicine. Applications for plastic tubing include blood and fluid handling, peristaltic pumps, electrical and thermal insulation, analytical systems, and food and beverage handling, among others.

Saint-Gobain Corporation manufactures plastic tubing for the food and beverage, chemical processing, industrial, laboratory, medical, pharmaceutical, and semiconductor processing industries under the Tygon brand in the Saint-Gobain Performance Plastics sector. Founded in 1665, the company is headquartered in Courbevoie, France, and operates 45 plastics manufacturing sites worldwide.
