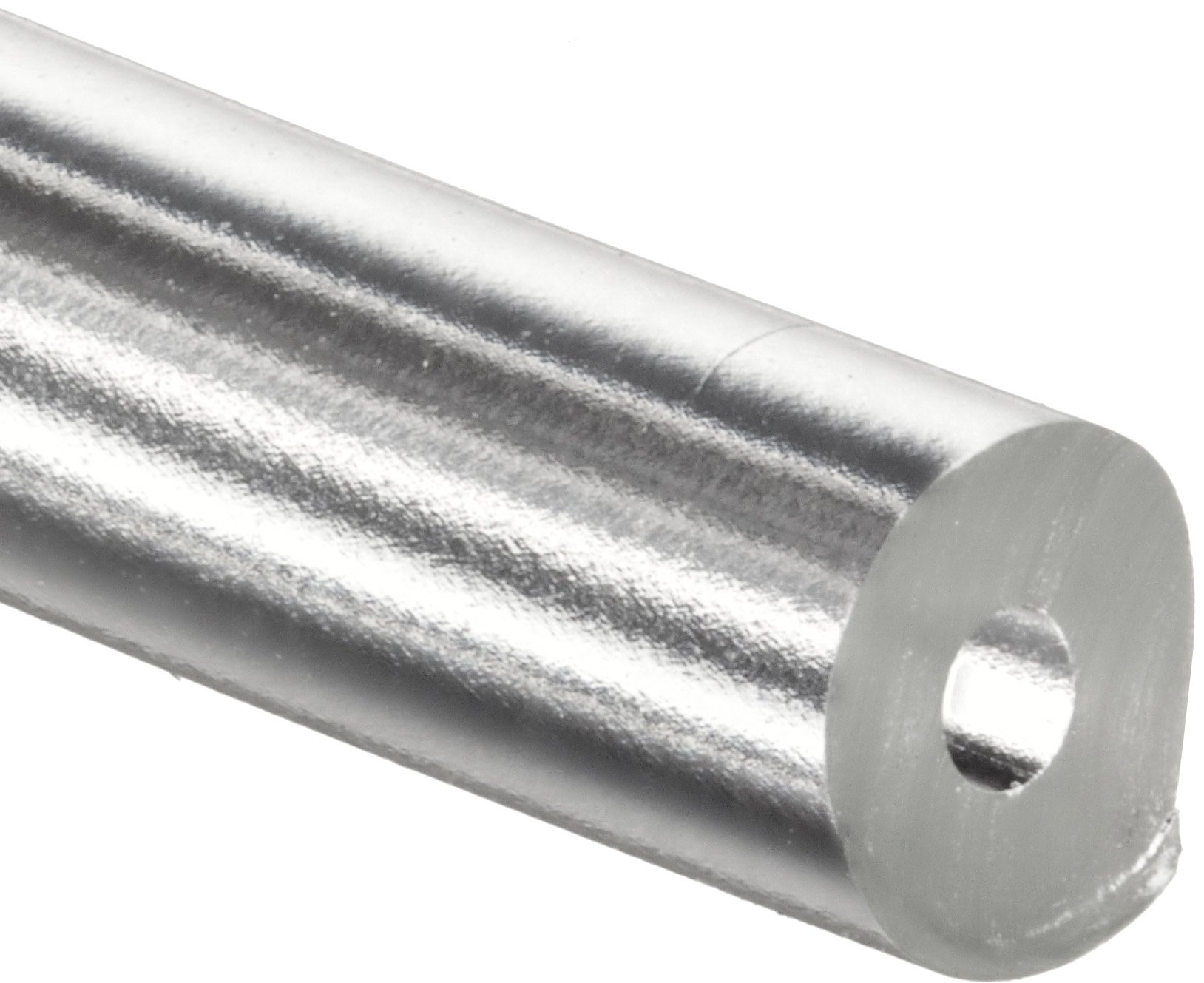

Tygon S-54-HL PVC Medical Tubing, Clear

Be the first to review this item

Product Specifications
Upper Temperature Range
185  Degrees Fahrenheit
Item Shape
Round
Hardness
80A
Durometer
80A
Material Type
PVC (Polyvinyl Chloride)
Color Name
Clear
Structure Description
Very Flexible
Brand Name
Tygon
LowerTemperature Range
-25  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Apr 18? Order in-stock items in the next 10 hrs 10 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-13 of 13
Inside Diameter Outside Diameter Wall Thickness Length Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All All
Currently showing 1-13 of 13
0.010" 0.030" 0.010" 500 ft 1 B001M4HG2I 10 $149.14 Buy Options
0.020" 0.060" 0.020" 25 ft 1 B000PHCDEY 15 $14.89 Buy Options
0.020" 0.060" 0.020" 500 ft 1 B0028MBU3E 18 $155.93 Buy Options
0.040" 0.070" 0.015" 10 ft 1 B000PHCDHQ 7 $13.12 Buy Options
0.040" 0.070" 0.015" 100 ft 1 B000PHCDIK Usually ships in 1 to 3 months $73.03 Buy Options
0.040" 0.070" 0.015" 25 ft 1 B000PHDL7M 3 $16.64 Buy Options
0.040" 0.070" 0.015" 500 ft 1 B001G4Y5VY 2 $226.93 Buy Options
0.030" 0.090" 0.030" 10 ft 1 B000PHCDFS 59 $6.79 Buy Options
0.030" 0.090" 0.030" 100 ft 1 B000PHCDGW 2 $48.12 Buy Options
0.030" 0.090" 0.030" 25 ft 1 B000PHGY0I 4 $15.89 Buy Options
0.030" 0.090" 0.030" 500 ft 1 B001GMWZMM 1 $214.62 Buy Options
0.050" 0.090" 0.020" 10 ft 1 B000PHF05S 10 $12.15 Buy Options
0.050" 0.090" 0.020" 25 ft 1 B000PHF076 Temporarily out of stock. Order now and we'll deliver when available. $17.79 Buy Options

Key Features

  • Biocompatible plastic tubing for intravenous use in medical and surgical applications
  • Clear Tygon formulation S-54-HL polyvinyl chloride (PVC) for strength and resistance to kinks, chemicals, and corrosion
  • Non-wetting microbore fits onto syringe needles and prevents particulate build-up
  • Working temperature range of -25 to 185 degrees F and durometer (hardness) of 80A
  • Meets USP Class VI criteria for quality assurance

Product Description

This clear plastic tubing is made of Tygon formulation S-54-HL polyvinyl chloride (PVC) and is biocompatible for intravenous use in medical and surgical applications. The clear tubing allows unobstructed visual monitoring of flow. The stiff Tygon formulation S-54-HL polyvinyl chloride (PVC) construction resists punctures and kinks to permit free flow, and it is non-toxic to reduce the risk of inflammation in intravenous applications. It comes in microbore sizes to allow the tubing to fit onto syringe needles. The bore is non-wetting for full drainage and limited particulate build-up to further ensure fluid integrity. It can be sterilized with ethylene oxide (ETO), steam, or radiation. The tubing has a working temperature range of -25 to 185 degrees F, a durometer (hardness) of 80A, and working pressure ratings that vary by tube size. It meets U.S. Pharmacopoeia (USP) Class VI criteria for medical grade plastic materials for quality assurance. This plastic tubing is not designed for potable fluid service or use as an implant material, but it is suitable for use with catheters and in intravenous or intra-arterial infusions, among other surgical and medical applications.

Plastic tubing is used to transfer liquids, air, or solids, and it is characterized by a round, rectangular, or square shape and a hollow center. Plastic tubing is crimp-resistant and varies in bend radius (flexibility), chemical resistance, wall thickness, durometer hardness, and temperature and pressure handling abilities. The clarity of plastic tubing may be transparent (clear), translucent (semi-clear), or opaque (solid), and the tubing's coloring may indicate suitable applications. Barbed fittings are used to connect tubing or redirect flow in a fluid handling system. Plastic tubing is used in a wide variety of industries, such as agriculture, automotive, laboratory, and medicine. Applications for plastic tubing include blood and fluid handling, peristaltic pumps, electrical and thermal insulation, analytical systems, and food and beverage handling, among others.

Saint-Gobain Corporation manufactures plastic tubing for the food and beverage, chemical processing, industrial, laboratory, medical, pharmaceutical, and semiconductor processing industries under the Tygon brand in the Saint-Gobain Performance Plastics sector. Founded in 1665, the company is headquartered in Courbevoie, France, and operates 45 plastics manufacturing sites worldwide.
