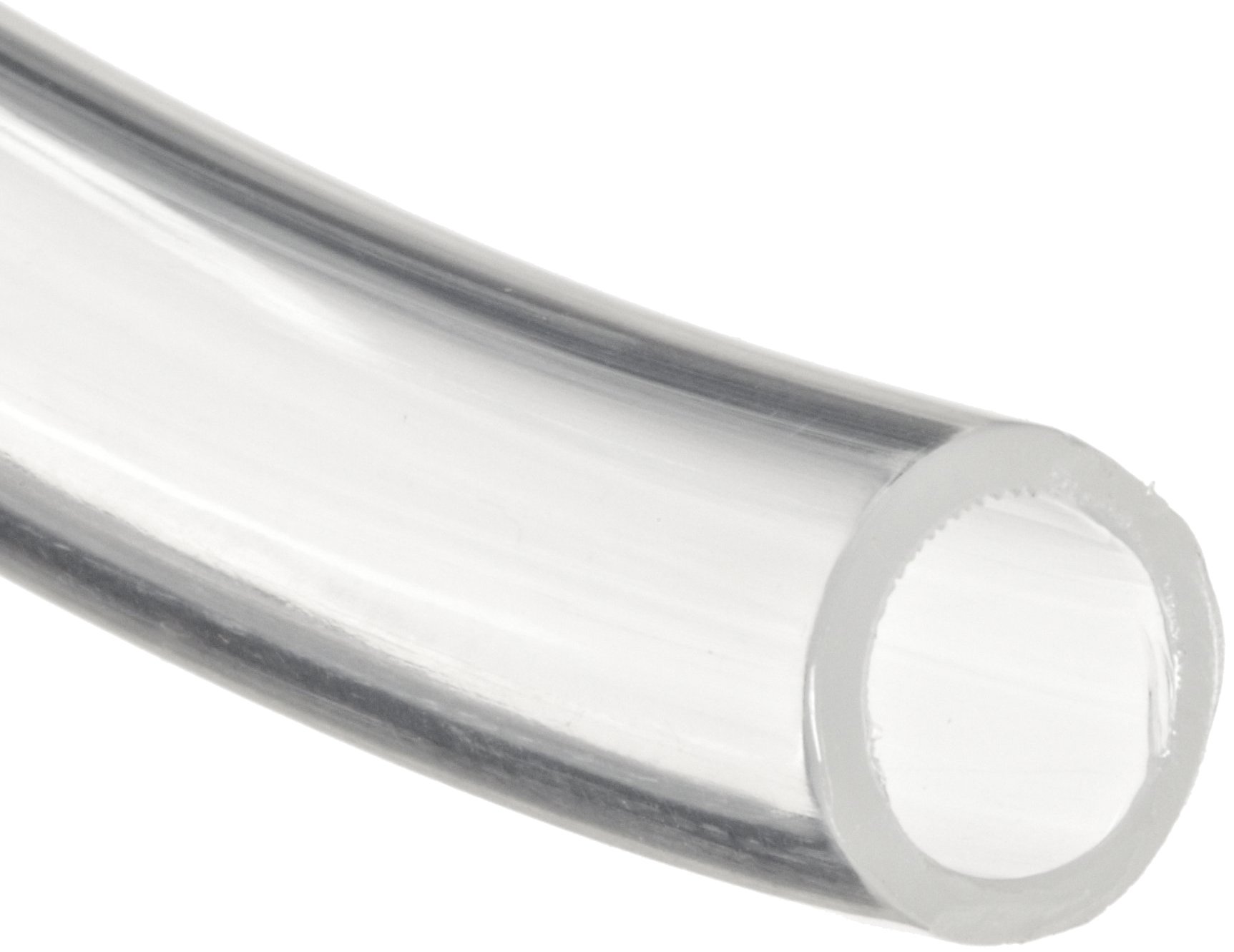

Tygon 2275 High Purity PVC Tubing, Clear

Be the first to review this item

Product Specifications
Item Shape
Round
Durometer
72A
Material Type
PVC (Polyvinyl Chloride)
Color Name
Clear
Structure Description
Very Flexible
Brand Name
Tygon
Maximum Temperature
125  Degrees Fahrenheit
Upper Temperature Range
125  Degrees Fahrenheit
Hardness
72A
Specification Met
USP Class VI
UNSPSC Code
40183000
LowerTemperature Range
-94  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Dec 23? Order in-stock items in the next 1 day 6 hrs 24 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-12 of 12
Item diameter string Inside diameter string Item length string ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-12 of 12
1/2 inches 3/8 inches 10 feet B000FOV0KA yes $41.52 Buy Options
1/2 inches 3/8 inches 25 feet B000FOYL92 yes $91.18 Buy Options
1/2 inches 3/8 inches 50 feet B000FN13VM yes $124.94 Buy Options
1/4 inches 1/8 inches 10 feet B000FOV0J6 yes $29.31 Buy Options
1/4 inches 1/8 inches 25 feet B000FOYL7O yes $71.54 Buy Options
3/16 inches 1/16 inches 10 feet B000FOV0IW yes $18.84 Buy Options
3/16 inches 1/16 inches 25 feet B000FOWGB2 yes $13.42 Buy Options
3/4 inches 1/2 inches 10 feet B000FP0IT8 yes $179.60 Buy Options
3/4 inches 1/2 inches 25 feet B000FOYL9M yes $88.59 Buy Options
3/8 inches 1/4 inches 25 feet B000FOWGC6 yes $82.74 Buy Options
5/16 inches 3/16 inches 10 feet B000FOV0JQ yes $27.62 Buy Options
5/16 inches 3/16 inches 25 feet B000FOYL8I yes $63.79 Buy Options

Key Features

  • Plasticizer-free plastic tubing for preserving fluid purity in medical, pharmaceutical, and biotechnological applications
  • Clear Tygon formulation 2275 plastic for visually monitoring transfer of fluids
  • Safe for incineration disposal and for ethylene oxide (ETO), steam, and chemical, and radiation sterilization
  • Working temperature range of -94 to 125 degrees F and durometer (hardness) of 72A
  • Meets USP Class VI and FDA CRF21 177.1520 criteria for quality assurance

Product Description

This plastic tubing is made of plasticizer-free Tygon formulation 2275 plastic and is suitable for transferring sensitive fluids, such as pharmaceutical solutions, without compromising the fluid's purity. The Tygon formulation 2275 plastic tubing is clear for visual monitoring of fluids. This construction also provides chemical resistance to acids, bases, salts, alcohols, and ketones, and contains no plasticizers such as Di(2-ethlhexyl)phthalate (DEHP), which could leach out and contaminate transferred fluids. A smooth, non-wetting inner surface limits particulate build-up and limits absorption and adsorption to further preserve fluid integrity. Whereas some types of tubing release hazardous byproducts like chlorine when incinerated, this tubing releases only carbon dioxide and water when incinerated for a less-toxic means of disposal. It can be used in single- or repeat-use applications, and sterilized with ethylene oxide (ETO), steam, chemicals, or radiation. The tubing has a working temperature range of -94 to 125 degrees F and a durometer (hardness) of 72 A. This plastic tubing is rated as very flexible as it bends more easily than flexible or rigid tubing. It meets U.S. Pharmacopoeia (USP) Class VI and U.S. Food and Drug Administration (FDA) CRF21 177.1520 criteria for medical grade plastic materials for quality assurance. The plastic tubing is not designed for use as an implant material, but is suitable for transferring water, air, food and beverages, and ethylene glycol, and for use in parenteral and drug infusion sets, sterile filling and dispensing, and cell and tissue culture transporting, among other applications.

Plastic tubing is used to transfer liquids, air, or solids, and it is characterized by a round, rectangular, or square shape and a hollow center. Plastic tubing is crimp-resistant and varies in bend radius (flexibility), chemical resistance, wall thickness, durometer hardness, and temperature and pressure handling abilities. The clarity of plastic tubing may be transparent (clear), translucent (semi-clear), or opaque (solid), and the tubing's coloring may indicate suitable applications. Barbed fittings are used to connect tubing or redirect flow in a fluid handling system. Plastic tubing is used in a wide variety of industries, such as agriculture, automotive, laboratory, and medicine. Applications for plastic tubing include blood and fluid handling, peristaltic pumps, electrical and thermal insulation, analytical systems, and food and beverage handling, among others.

Saint-Gobain Corporation manufactures plastic tubing for the food and beverage, chemical processing, industrial, laboratory, medical, pharmaceutical, and semiconductor processing industries under the Tygon brand in the Saint-Gobain Performance Plastics sector. Founded in 1665, the company is headquartered in Courbevoie, France, and operates 45 plastics manufacturing sites worldwide.
