Triplett 8000 CamView PTZ Multi-Function Test Tool for CCTV and Security Installation Professionals

Be the first to review this item

ASIN B002RM1C6A

Specifications for this item
Number of Items
1
Part Number
8000
Item Weight
0.63 pounds
UPC
151903564189 , 163120433728 , 999994817025 , 614395001346 , 999994608173
Brand Name
Triplett
EAN
0999994817025 , 0163120433728 , 0999994608173 , 0151903564189 , 0614395001346
Voltage
5  Volts
UNSPSC Code
32000000
Style Name
LCD

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

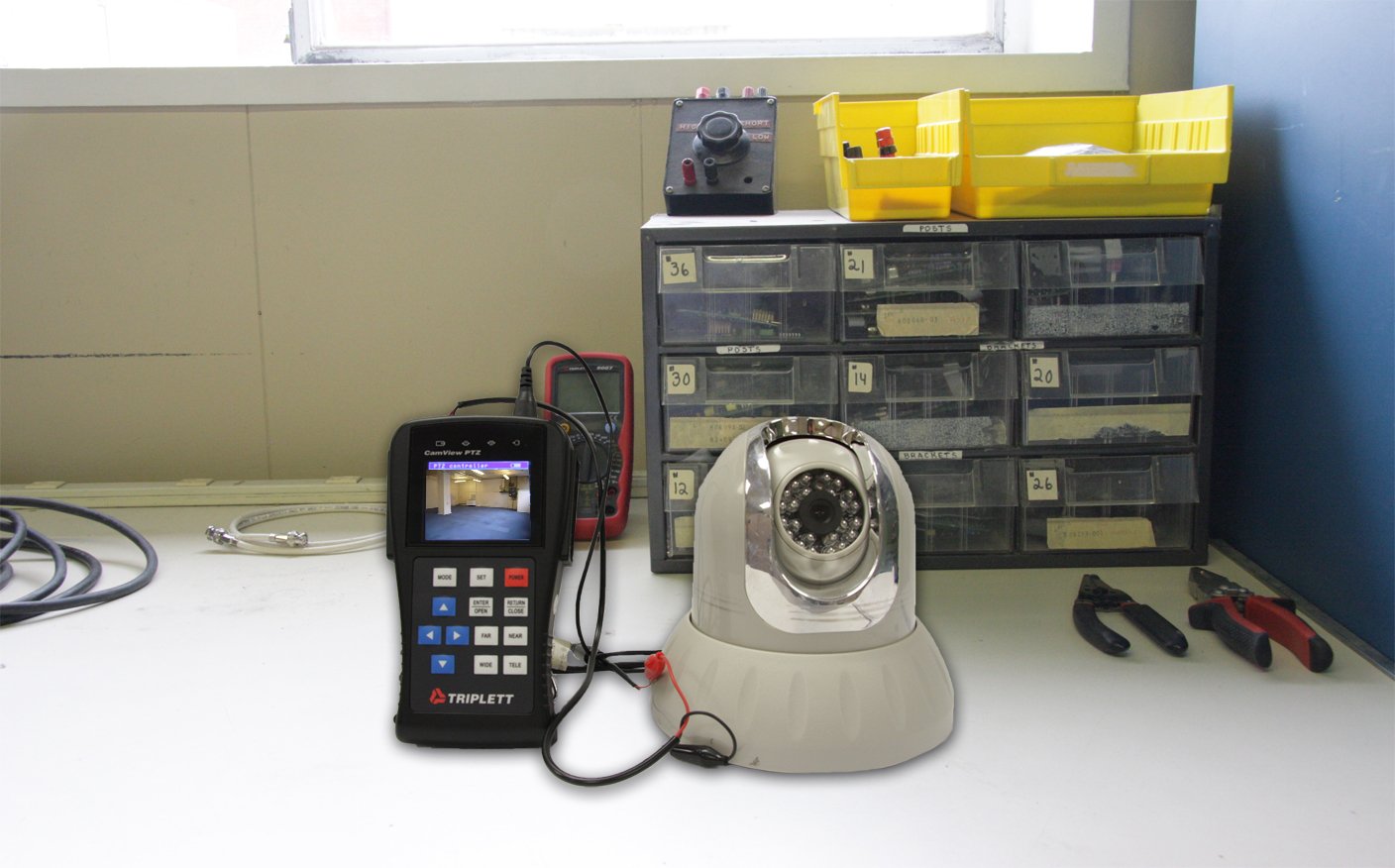

  • Multi-function test tool with full loop-through or simultaneous viewing modes for adjusting PTZ security cameras, and testing video cables, monitors, and recorders
  • Supports more than 30 PTZ protocols as well as RS-485, RS-422, or RS-232 PTZ interfaces

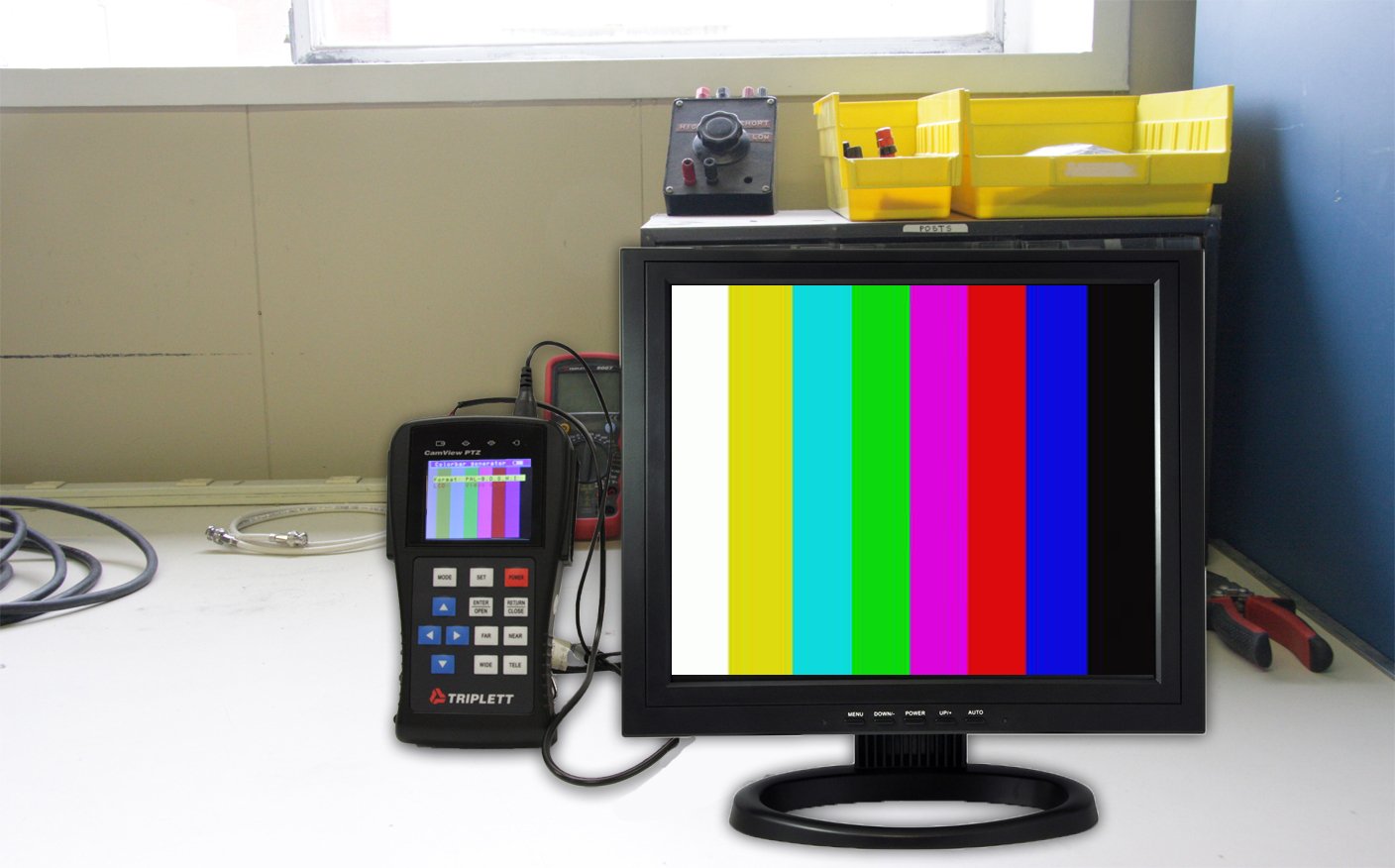

  • Color bar generator produces NTSC and PAL formats to check video cables, recorders, and monitors, and a LAN cable test identifies open circuits, short circuits, and miswires
  • Continuous pan test helps identify camera panning problems, and an automatic address search finds the address of a camera

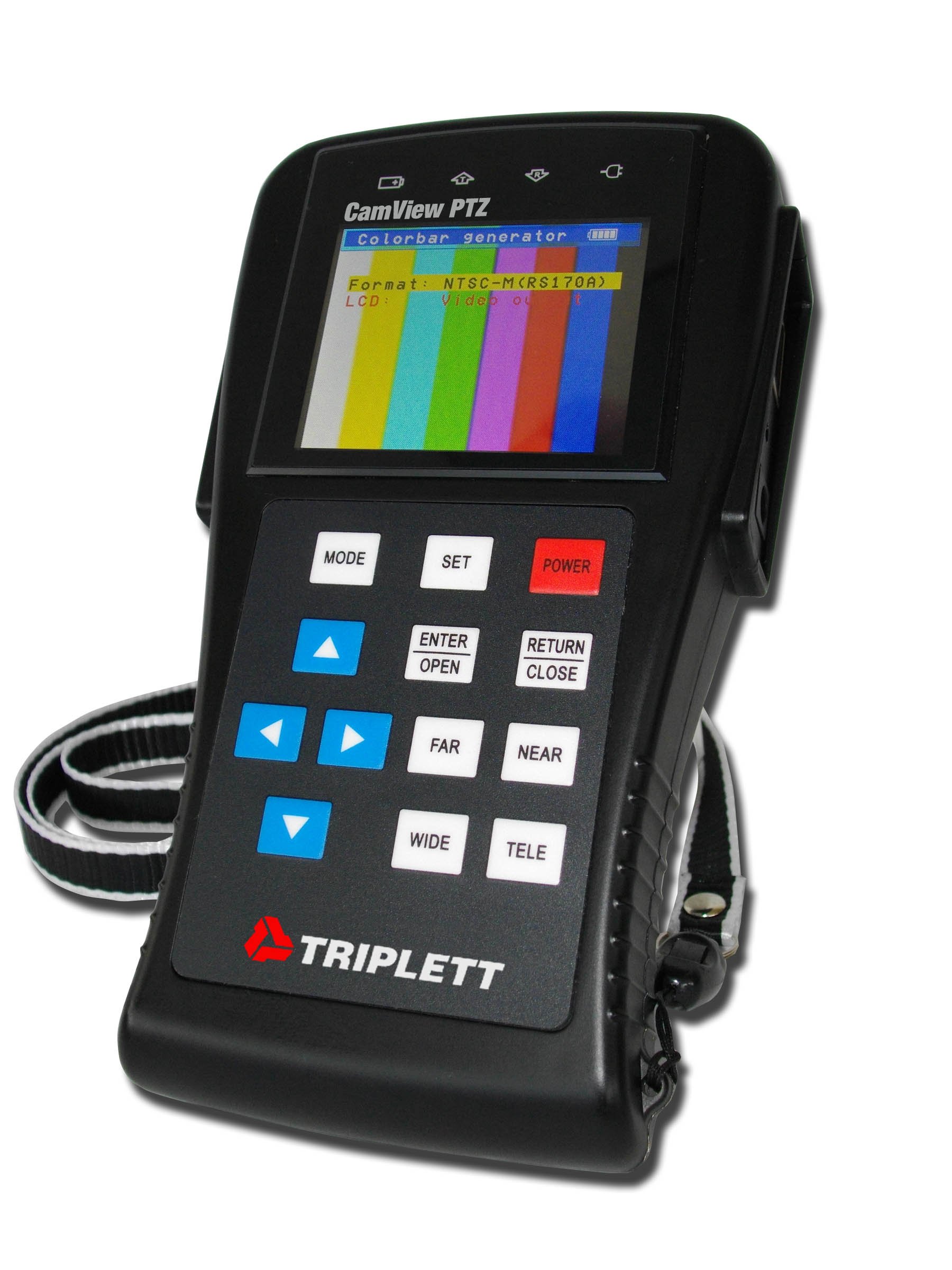

  • 2.6" color TFT-LCD monitor for viewing camera images and a keypad for navigating menus and controlling camera settings

Package Details

Shipping Weight: 2.3 pounds
Package Size: 10.7 x 8 x 3.8 inches

Product Description

The Triplett 8000 CamView PTZ is a CCTV multi-function test tool with full loop-through or simultaneous viewing modes for adjusting the pan, tilt, zoom, and focus of security cameras and other video devices, and testing video cables, monitors, and DVRs; and supports more than 30 PTZ (pan, tilt, zoom) protocols as well as RS-485, RS-422, or RS-232 PTZ interfaces. The test tool's color bar generator produces NTSC and PAL formats to check video cables, recorders, and monitors, and its cable test identifies open circuits, short circuits, and miswires of two- to eight-wire LAN cabling with male RJ-45 connectors. A continuous pan test helps identify camera panning problems, and an automatic address search finds the address of a camera. The test tool has a 2.6" color TFT (thin film transistor) LCD monitor for viewing camera images and a keypad for navigating menus and controlling camera settings. The brightness, contrast, and color saturation of the LCD can be adjusted. The unit can be programmed to turn off automatically after 5 to 60 minutes of inactivity. It comes with an RJ-45 cable test dongle; a BNC patch cable; an RS-232, RS-422, and RS-485 PTZ adapter cable; an AC adapter/charger; a neck strap; a carrying case with shoulder strap; and instructions. CCTV (closed circuit television) test tools are used by security electronics installers and maintenance technicians to adjust and troubleshoot security cameras and video monitoring devices.

Specifications
Display2.6" color TFT-LCD, 960 x 240 resolution
Video input and output connectorsBNC and mini-plug
Video formats supportedNTSC and PAL
Video level impedance1.0V peak-to-peak into 75Ω
Interfaces supportedRS-485, RS-422, and RS-232
Cable test jackRJ45
PTZ protocols supportedPelco D, Pelco P, YAAN, YAAN-O, Samsung, Panasonic, Lilin-FAST, Lilin-MLP2, Molynx, Minking A01, AD, Fastrax, CBC, LC-NEW, WV-CS850, SONY-EVI, LG-MULTIX, Da Hua, PEARMAIN, Minking B01, ALEC, DAT-SD, Vicon, Vcltp, DH-YC06, Sabyo-SSP, Santachi, o s h OBSRD, TeleEye DM6, HD600, Hikvision, Kalatel 304, Kalatel ASC
Baud rates150 to 19,200 bps
Power sourceRechargeable lithium ion polymer battery and AC adapter (both included)
Dimensions6 x 4 x 2 inches (H x W x D)
Weight10 oz.

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Triplett manufactures test equipment for electricians, home security installers, and telecommunications technicians. The company, founded in 1904, is headquartered in Manchester, NH.

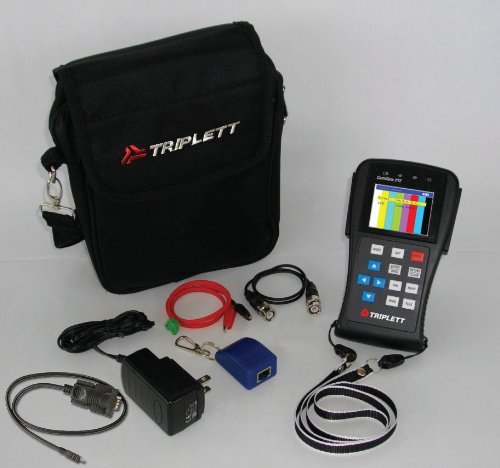

What's in the Box?
  • Triplett 8000 CamView PTZ
  • RJ45 cable test dongle
  • BNC patch cable
  • RS-232, RS-422, and RS-485 PTZ adapter cable
  • AC adapter/charger
  • Neck strap
  • Carrying case with shoulder strap
  • Instructions
