Triplett 9055 Auto-Ranging, Average-Sensing Digital Multimeter with Sound Meter, Light Meter, Humidity and Ambient Temperature Meter, and Temperature Probe, 10 Amp, 600V, 40 Megaohms, 100 Microfarads, 10 MHz

Be the first to review this item

ASIN B004TVNHV0

Specifications for this item
Number of Items
1
Part Number
9055
UPC
072090490399 , 163120434336 , 614395001445 , 688450070172 , 132017641287 , 151903565629
Brand Name
Triplett
EAN
0132017641287 , 0688450070172 , 0163120434336 , 0072090490399 , 0614395001445 , 0151903565629
UNSPSC Code
41113600

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 1? Order in-stock items in the next 2 days 12 hrs 50 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Digital multimeter measures voltage, current, resistance, capacitance, frequency, duty cycles, sound levels, light levels, and humidity

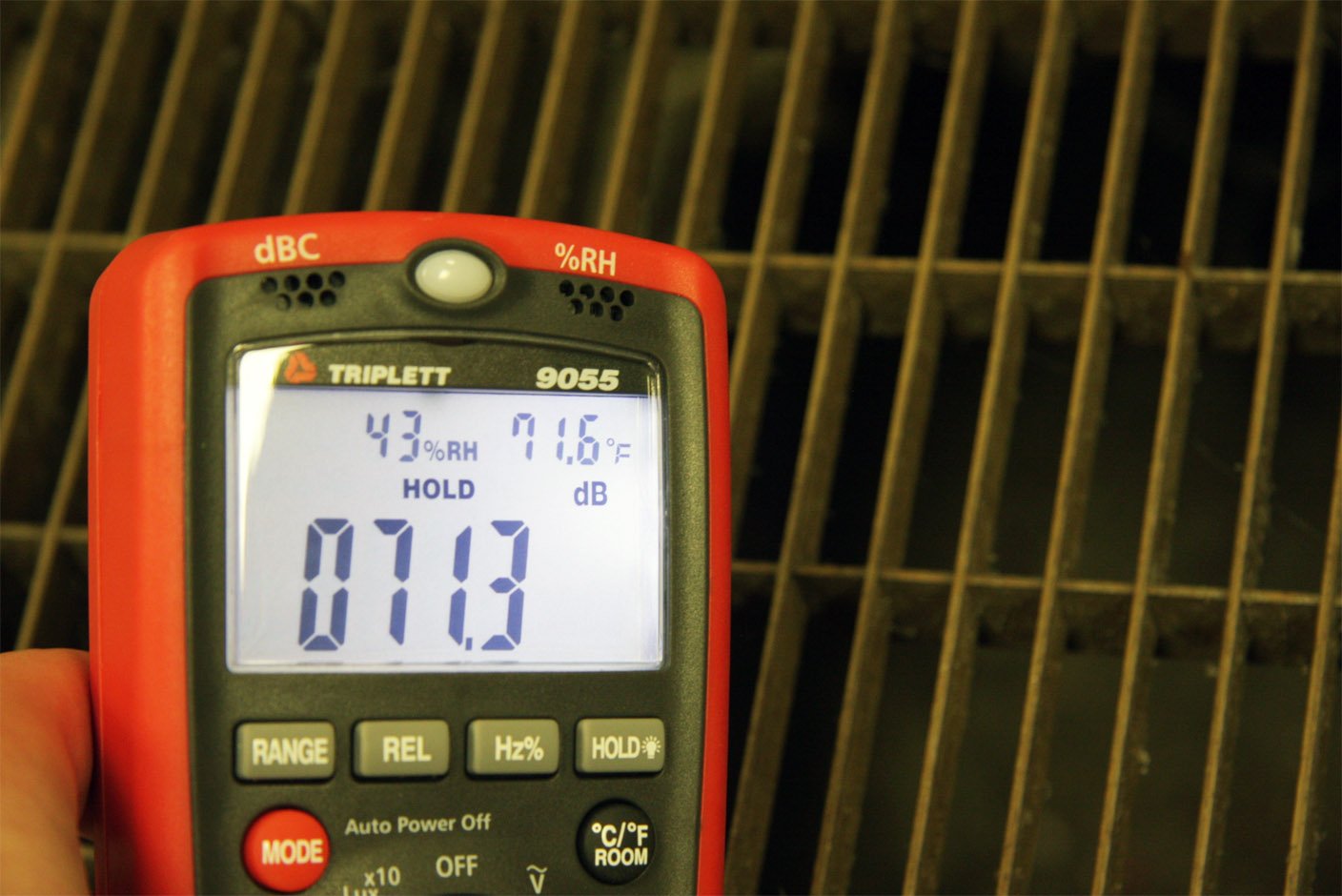

  • Built-in sound meter measures sound levels in decibels relative to carrier (dBc) to check noise levels in environments such as factories, hospitals, offices, and schools
  • Built-in light meter with silicon sensor measures light levels in lux
  • Noncontact voltage detector senses AC voltage from a distance
  • Meets International Electrotechnical Commission (IEC) safety standard 61010 and is certified for Category IIII installations up to 1,000V and Category IV installations up to 600V

Package Details

Shipping Weight: 1.1 pounds
Package Size: 11.5 x 7.5 x 1.6 inches

Product Description

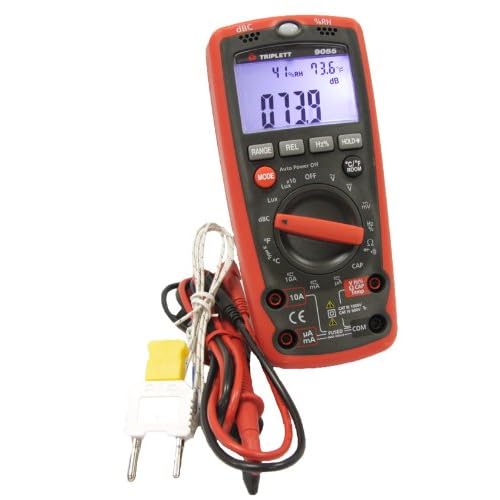

The Triplett 9055 digital multimeter (also known as a multitester) with noncontact voltage sensor is an auto-ranging, average-sensing digital multimeter that measures voltage, current, resistance, capacitance, frequency, duty cycles, sound levels, light levels, and humidity in electrical, electronics, and heating, ventilation, air-conditioning, and refrigeration (HVAC/R) maintenance applications. The meter comes with a set of detachable test leads. A built-in sound meter measures sound levels in decibels relative to carrier (dBc) and an integral light meter with silicon sensor measures light levels in lux, for checking noise and light levels in environments such as factories, hospitals, offices, and schools. The noncontact voltage detector senses AC voltage from a distance. The meter also has a sensor that measures relative humidity and ambient temperature. The included thermocouple probe takes surface temperature measurements. The meter measures duty cycles to 95%, indicating the percent of time a circuit is on. An audible continuity sensor confirms a circuit conducts electricity, and a diode test detects proper functioning of a circuit’s diodes. The LCD is backlit for readability in low light. The meter's internal memory stores maximum and minimum values for a session for future recall. The relative mode stores a reading in memory to use as a zero point for subsequent readings so that multiple readings can be compared. The hold function keeps a reading on the LCD, even after the meter is disconnected. The unit operates on one 9V battery (installed) and automatically turns off after a period of nonuse to conserve battery life. A low-battery indicator signals when the meter's batteries need to be replaced.

This average-sensing, or average-responding, meter provides accurate readings when measuring linear loads, such as standard induction motors and incandescent lights, where the current or voltage has an undistorted waveform. When turned on, the meter is in auto-ranging mode and automatically selects the correct operating range for the property being measured. It can be switched to manual-ranging mode, which allows the operator to choose the appropriate operating range. The LCD has a 4,000-count resolution, meaning it can display up to 3,999 units (3-3/4 digits) before the operating range needs to be changed. It meets International Electrotechnical Commission (IEC) safety standard 61010 and is certified for Category III installations up to 1,000V, which covers items used with enclosed building circuit installations (such as service panel parts, branch circuits, and fixed installations that are connected directly to a building's AC power supply), and Category IV installations up to 600V, which covers measurements at the source of the low-voltage supply (such as electricity meters and overcurrent protection devices).

Specifications

Maximum alternating current (AC) or direct current (DC) voltage input600 volts (V)
Maximum resistance detected40 megaohms
Maximum AC or DC current input10 amp
Maximum frequency detected10 megahertz (MHz)
Maximum capacitance detected100 microfarads (μF)
K-type Thermocouple temperature measurement range-20 to 750 degrees Celsius (C)/-4 to 1400 degrees Fahrenheit (F) (maximum 300 degrees F with included probe)
Ambient temperature and relative humidity (RH) measurement range (with internal sensor)0 to 50 degrees C/32 to 122 degrees F, 33 to 90% RH
Sound level measurement range35 to 100 decibels (dB)
Maximum light level detected40,000 lux
Standards metEuropean Conformity (CE); International Electrotechnical Commission (IEC) safety standard 61010-1 and 61326
Weight0.7 lb.
Dimensions6.75 x 3.2 x 1.4 inches (H x W x D)

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Multitesters (also called multimeters) are electrical test meters that measure multiple properties of an electrical circuit, such as current, voltage, resistance, capacitance, and continuity. Available in handheld or benchtop models, multitesters diagnose electrical problems in electrical equipment, wiring, and power supplies. A variety of probes, clamps, and leads can be used to connect the meter to a circuit or device. Multitesters display information either in analog or digital form. Factors that influence meter choice include the electrical properties to be measured, the anticipated range of results, and the desired level of protection against transient voltages. Safety ratings are based on the International Electrotechnical Commission's (IEC) standards for low-voltage test equipment. IEC 61010 delineates four overvoltage installation categories. In general, a meter with a category IV rating will provide more protection against transient voltages than a meter with a lower category rating.

Triplett manufactures test equipment for electricians, home security installers, and telecommunications technicians. The company, founded in 1904, is headquartered in Manchester, NH.

What's in the Box?
  • Triplett 9055 average-sensing digital multimeter
  • (1) Set test leads
  • Thermocouple probe
  • 9V battery (installed)
  • Instructions
