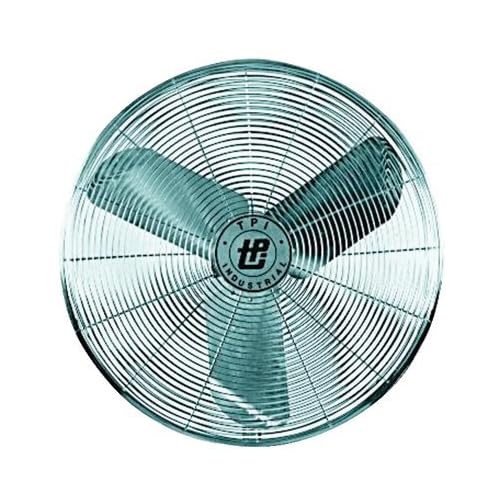

TPI Corporation ACH30-O Industrial Oscillating Circulator Head, Single Phase, 30" Diameter, 120 Volt

Be the first to review this item

ASIN B0002FSNTS

Specifications for this item
Number of Items
1
Part Number
737-ACH30-O
Outside Diameter
30  inches
UPC
686334796378
Brand Name
TPI
EAN
0686334796378
Input Voltage
120  Volts
UNSPSC Code
40101600

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Jul 28? Order in-stock items in the next 18 hrs 8 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Oscillating circulator fan head for use with any TPI industrial mount
  • 2-speed, 2.5 amp, 120 volt, single phase, 1/4 horsepower, permanently lubricated, totally enclosed ball bearing motor with a permanent split capacitor
  • Stationary or oscillates in a 90-degree arc with a maximum downward tilt of 30 degrees
  • Three aluminum paddle blades attached to a steel hub and spider assembly for durability
  • 12 foot SJT type three-conductor cord

Package Details

Shipping Weight: 43.5 pounds
Package Size: 32.7 x 32.6 x 15.3 inches

Product Description

This TPI Corporation ACH30-O industrial single phase 30-inch diameter oscillating circulator fan head is for use with any TPI industrial mount. It has three aluminum paddle blades and oscillates in a 90-degree arc or can remain stationary depending on the air circulation needs of the operating environment. The blade assembly (consisting of a steel hub and spider) holds the fan head’s three aluminum paddles, which are enclosed by front and rear chrome-plated, steel wire guards for strength and resistance to corrosion. Metal gears in the oscillation assembly enable the fan to operate in a downward tilt of up to 30 degrees. Because the motor is totally enclosed, this TPI industrial single phase oscillating circulator fan head is suitable for use in conditions that standard, unenclosed motors are not, such as in the presence of dust or other airborne debris.

Specifications

Motor 2-speed, 2.5 amp, 120 volt, single phase, 1/4 horsepower, ball bearing, totally enclosed, permanently lubricated, permanent split capacitor
Switch type Pull chain
Cord 12 foot stranded junior thermoplastic (SJT) type three-conductor
Blades (3) Aluminum
Guards Chrome-plated, steel wire
Cubic feet per minute (CFM) 7900/6000/4750
Temperature range -4 to 140 degrees F (-20 to 60 degrees C)
Weight 48 lbs.

TPI Corporation manufactures industrial and commercial electrical heaters, process heat ovens, ventilation products and fans, lighting equipment, and thermostatic controls. The company, founded in 1950, is headquartered in Johnson City, TN.
