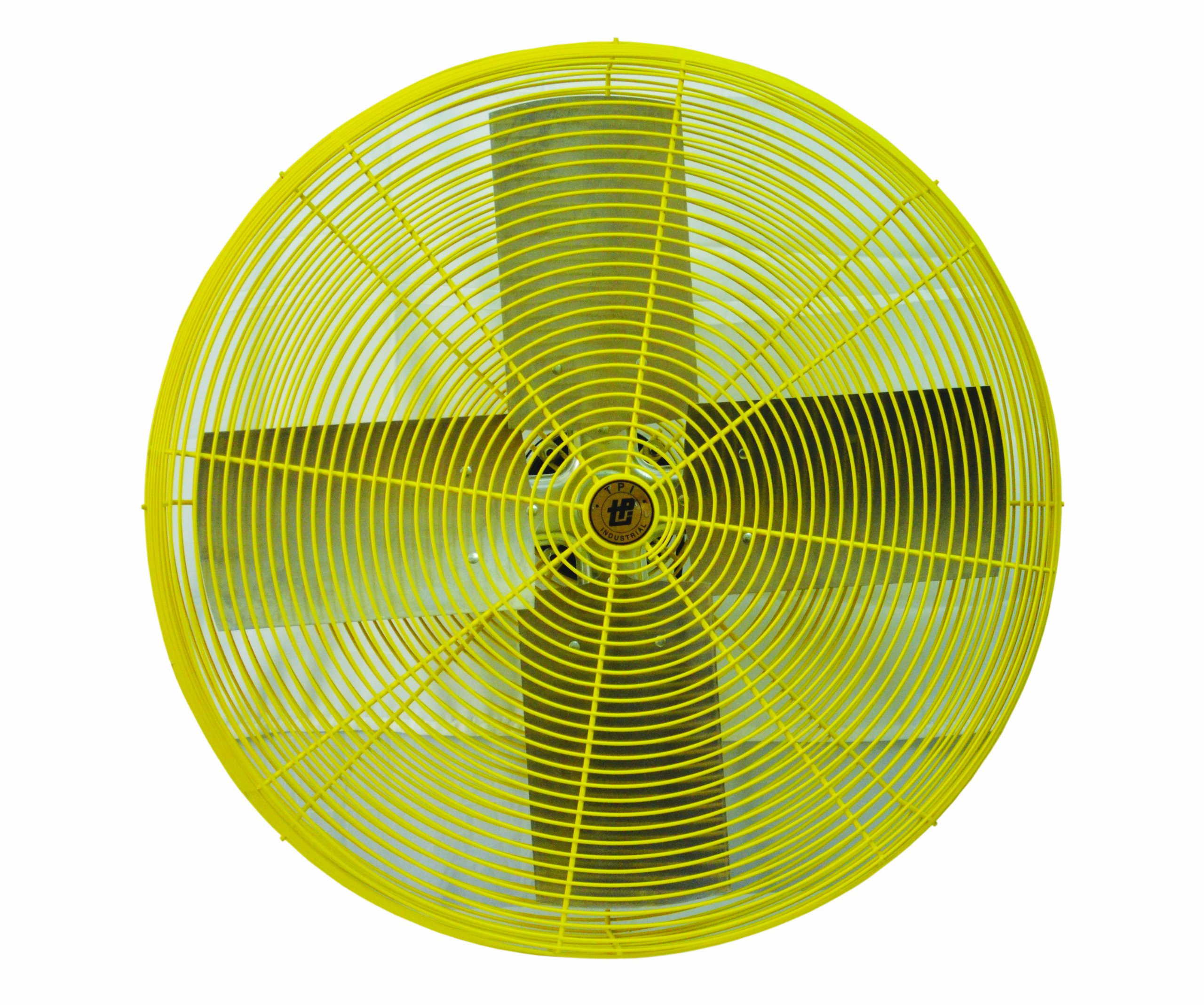

TPI Corporation HDH30 Heavy Duty Industrial Circulator Head, Yellow, Single Phase, 30" Diameter, 120 Volt

Be the first to review this item

ASIN B002SVUO46

Specifications for this item
Number of Items
1
Part Number
HDH30
Outside Diameter
30  inches
Brand Name
TPI
Input Voltage
120  Volts
UNSPSC Code
52141804

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Nov 24? Order in-stock items in the next 9 hrs 18 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • 2-speed circulator fan head for use with any TPI industrial mount (sold separately)
  • 4 amp, 120 volt, single phase, 1/2 horsepower, permanently lubricated, totally closed ball bearing motor with permanent split capacitor
  • Two speed settings for airflow rates up to 9,850 cubic feet per minute (CFM)
  • Three aluminum paddle blades attached to a steel hub and spider assembly for durability
  • 12 foot SJT type three-conductor cord with a three-prong plug for connecting to grounded electric outlets

Package Details

Shipping Weight: 40.25 pounds
Package Size: 32.6 x 32.3 x 14.7 inches

Product Description

This TPI Corporation HDH 30-G single phase 30-inch diameter heavy duty circulator head is for use with any TPI industrial mount and is suitable for providing directed air circulation. The blade assembly, consisting of a steel hub and spider, holds the fan head’s three aluminum paddles, which are enclosed by front and rear powder-coated steel wire guards for strength and resistance to corrosion. The fan is mounted with brackets (sold separately) and can be positioned horizontally or vertically for precise direction of air flow. The permanent split capacitor (PSC) motor provides both starting torque and the ability to run at variable speeds. The motor of the TPI workstation fan is totally enclosed, making it suitable for use in conditions that standard, unenclosed motors are not, such as in the presence of dust or other airborne debris.

Specifications

Motor2-speed, 4 amp, 120 volt, single phase, 1/2 horsepower, permanently lubricated, totally closed ball bearing motor with permanent split capacitor
Switch typePull chain
Cord12 foot SJT type three-conductor cord
Blades Aluminum (3)
Blade guardsPowder-coated steel wire
Cubic feet per minute (CFM)9850 / 8100
Weight48 lbs.
Dimensions33.5 inches diameter, 14.5 inches depth

Industrial fans are used in workplace environments to exhaust fumes or direct air flow. Most industrial fans have coated metal parts and lubricated motors that are permanently sealed to help protect against environmental hazards, such as dirt and airborne debris or corrosive fumes. They can have fan blade cages that meet workplace safety standards, as well as a variety of mounting mechanisms for precise placement to direct large volumes of air flow. Electronic circuitry for industrial fans matches the power specifications found in the workplace and provides the initial torque needed to start up a large blade fan. Industrial fans are used in warehouses, gyms, and other commercial environments to ventilate spaces and to circulate air.

TPI Corporation manufactures industrial and commercial electrical heaters, process heat ovens, ventilation products and fans, lighting equipment, and thermostatic controls. The company, founded in 1950, is headquartered in Johnson City, TN.
