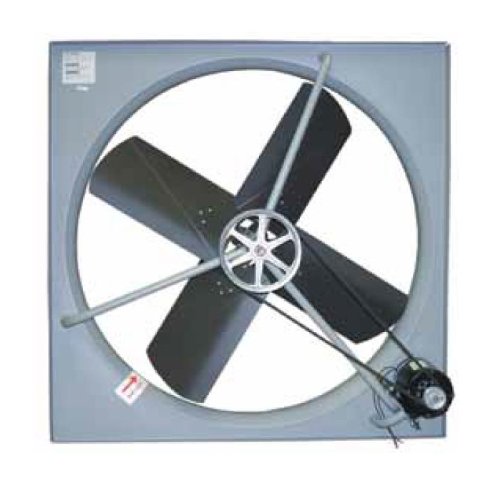

TPI Corporation CE-48-B Commercial Exhaust Fan, Single Phase, 48" Diameter, 120 Volt

Be the first to review this item

ASIN B0083IRTU0

Specifications for this item
Number of Items
1
Part Number
CE-48B
Outside Diameter
48  inches
Brand Name
TPI
Input Voltage
120  Volts
UNSPSC Code
52141804

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 4 hrs 12 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Belt-drive exhaust fan for use in exterior ventilation
  • 15 amp, 120V, single phase, 1 hp, permanently lubricated, drip-proof ball bearing motor
  • Powder-coated steel venturi
  • Four aluminum blades with permanently lubricated bearings on blade drive shaft
  • Junction box (not included) required for direct wiring to wall switch

Package Details

Shipping Weight: 116 pounds
Package Size: 62 x 58 x 26 inches

Product Description

This TPI Corporation CE-48-B belt drive exhaust fan has a 48" blade diameter, a venturi housing, and is suitable for ventilating a building to the outside. It has a 1-speed, 120V, 15 amp, single phase, 1 hp, permanently lubricated, drip-proof ball bearing motor. The blade assembly (consisting of a pulley, steel hub, and spider) holds the fan head's four aluminum paddles, and a belt between the motor and fan pulley drives the fan. The venturi housing allows the fan to be installed without external framing, and self-closing shutters (not included) can protect the fan from rain and snow when not in operation. The motor of the TPI belt drive exhaust fan is out of the air flow path, making it suitable for use in the presence of dust or other airborne debris.

Specifications
Motor1-speed, 15 amp, 120V, single phase, 1 hp, permanently lubricated, drip-proof ball bearing motor
EnclosurePowder coated steel
Switch typeNo switch
CordNo cord, junction box provided for direct wiring
BladesAluminum (4)
Blade guardsNo guard
Cubic feet per minute (CFM)21,500
Weight98 Lbs.
Dimensions*54 x 54 x 17 inches (H x W x D)

*H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Industrial fans are used in workplace environments to exhaust fumes or direct air flow. Most industrial fans have coated metal parts and lubricated motors that are permanently sealed to help protect against environmental hazards, such as dirt and airborne debris or corrosive fumes. They can have fan blade cages that meet workplace safety standards, as well as a variety of mounting mechanisms for precise placement to direct large volumes of air flow. Electronic circuitry for industrial fans matches the power specifications found in the workplace and provides the initial torque needed to start up a large blade fan. Industrial fans are used in warehouses, gyms, and other commercial environments to ventilate spaces and to circulate air.

TPI Corporation manufactures industrial and commercial electrical heaters, process heat ovens, ventilation products and fans, lighting equipment, and thermostatic controls. The company, founded in 1950, is headquartered in Johnson City, TN.
