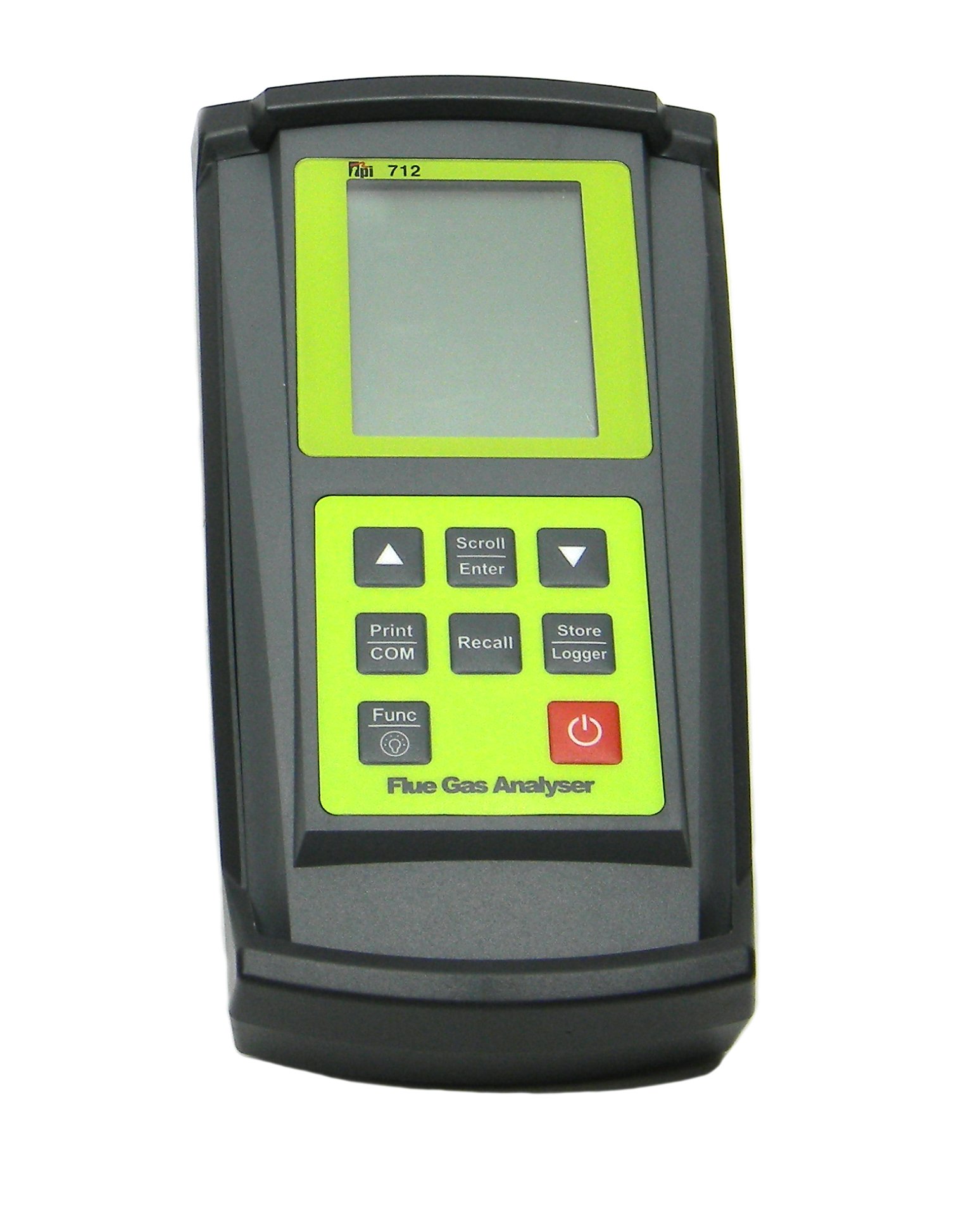

TPI 712C7 Combustion Efficiency Analyzer with Digital Clamp-On and Infrared Printer, Rechargeable Ni-MH Batteries, Backlit LCD Display, 14 to 122 Degree F

Be the first to review this item

ASIN B0095XAGFC

Specifications for this item
Number of Items
1
Overall Height
200  millimeters
Overall Width
90  millimeters
Part Number
712C7
Item Depth
60 millimeters
Brand Name
Test Products International
UNSPSC Code
41111809
Style Name
LCD

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Jul 30? Order in-stock items in the next 8 hrs 38 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Tuning of residential and furnaces and domestic boilers
  • Ambient and stack testing for CO
  • CO safety measurements in and around combustion sources
  • Temperature checking, including superheat and hydronic differential temperatures
  • Detecting gas leak in gas lines and around gas fueled appliances, dual input differential manometer with 3 selectable units of measure: kPa, mBar,inH20

Package Details

Shipping Weight: 8.2 pounds
Package Size: 17.4 x 9.4 x 6.2 inches

Product Description

Fast and easy set-up. Fast purge and fuel selection during start-up reduces set-up time. Measures CO, O2, pressure, and temperature. Calculates CO2 and gross ornet efficiency. Works on high efficiency furnace. Selectable fuels: natural gas, light oil, heavy oil, LPG, bituminous coal, anthracite coal, coke, butane, wood, bagasse. Pump driven for fast response. Dual input differential manometer with 3 selectable units of measure: kPa, mBar, in H2O, 0.001 in H20 resolution. Tightness test: check for pressure leaks in valves, fittings, and switches with an elapsed time reference. Flue probe with built-in thermocouple. IR printer port - use optional A740 Infrared Printer. Soft carrying case. Protective rubber boot. Operating temperature range: 14 to 122 degree F. Charger input voltage: 115V or 230V, 50/60 Hz AC. Data storage: 10 sets of readings. Data logging: 400 sets of readings. Single logging: 150 sets of readings. Time and date: 24 hour real time clock. Carbon monoxide (CO) measurement: range: 0 to 10,000 ppm, resolution: 1 ppm, accuracy: +/-5ppm or 5 percent of reading whichever is greater. Oxygen (O2) measurement: Range: 0 to 25percent, Resolution: 0.1percent, Accuracy: +/-0.3percent. Carbon dioxide (CO2): Range: 0 to 25percent, Resolution: 0.1percent, Accuracy: Calculated. Temperature measurement: Range: -40 to 1472 degree F, or -40 to 800 degree C, Resolution: 1 degree F or degree C, Accuracy (K-type): +/-0.3percent, +/-2 degree F or +/-1 degree C. Draft/pressure measurement: Selectable Ranges mBar, kPa, and inH2O: Ranges: -150 mBar to +150 mBar, -15 kPa to +15 kPa, -60 inH2O to +60 in H20, Resolution 0.01mBar, Accuracy: +/-0/5percent fsd. Gross/net efficiency: Range: 0 to 100percent, Resolution: 0.1percent, Accuracy: Calculated. CO/CO2 ratio: Range: 0 to 0.999, Resolution: 0.001, Accuracy: Calculated. Combustible Gas level indication for flue gasses. RoHS Compliant. Measures 90mm width by 200mm height by 60mm depth.
