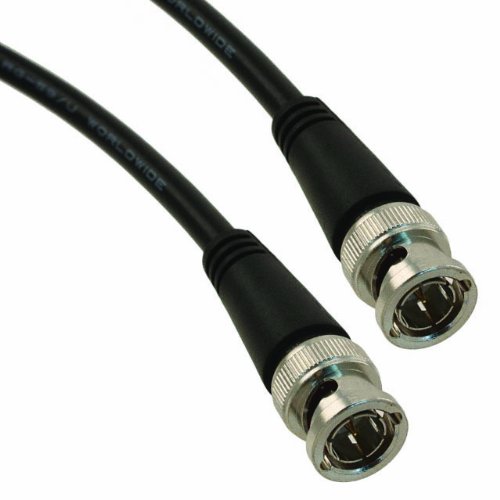

TPI 59-900-1M PVC Jacketed RG59/U Molded BNC Male to Male Coaxial Cable, 75 Ohms, 75' Length, Black

Be the first to review this item


Specifications for this item
Number of Items
Material Type
Copper Clad Steel
Part Number
Brand Name
Test Products International
Overall Length
75  feet

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 28? Order in-stock items in the next 1 hr 32 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Conductor material is copper clad steel and braided shielding material is bare copper
  • Low density PE insulation material
  • 3.71mm insulation diameter
  • Jacket outer diameter: 6mm +/-0.15mm
  • 75' cable length

Package Details

Shipping Weight: 2.5 pounds
Package Size: 7.7 x 7.7 x 2.5 inches

Product Description

Copper clad steel conductor material and bare copper braided shielding material. Low density PE insulation material. 3.71mm insulation diameter. Jacket outer diameter: 6mm +/-0.15mm. 1,500 psi tensile strength. 73 ohm normal impedance. 68.9pF/m normal capacitance. 125dB/km attenuation at 100MHz. 7kV voltage rating. UL standard is 1354. 75' Cable length. Natural insulation color. Black jacket color. Used for video and general also in serial digital, communication, HD-TV and broadband applications. UL listed cable ensures quality and consistency in the cable construction. Boot is molded to cable connector for added strength. Limits the amount of bending the cable is exposed to at the connector to prevent cable breakage. Gold center pins ensures that there is a high quality connection maintaining the best return loss in high definition applications. Machined brass connectors, unlike die-cast connectors, machined brass connectors have more precise tolerances, strength and positive mating meaning low signal loss for precise video and data applications. 95 Percent shielding keeps unwanted RF interference from infiltrating signal giving nice, clean output. 80 Degree temperature rating applicable to any application found indoors. Easily route cables into other rooms or floors. Individually bagged.
