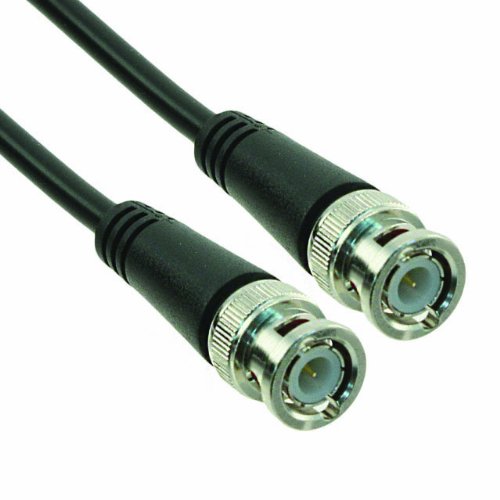

TPI 58-900-1M PVC Jacketed RG58/U Molded BNC Male to Male Coaxial Cable, 50 Ohms, 75' Length, Black

Be the first to review this item

ASIN B0095X9DO2

Product Specifications
Part Number
58-900-1M
Material Type
Bare Copper
Number of Items
1
Overall Length
75  feet
Size Name
75" Length
Specification for this product family (See all  products)
UNSPSC Code
26121606
Brand Name
TPI

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 1? Order in-stock items in the next 1 day 20 hrs 44 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Bare copper conductor and braided shielding material
  • Low density PE insulation material
  • 2.95mm insulation diameter
  • Jacket outer diameter: 4.95mm +/-0.15mm
  • 75' cable length

Package Details

Shipping Weight: 1.75 pounds
Package Size: 8 x 6.4 x 2 inches

Product Description

Bare copper conductor and braided shielding material. Low density PE insulation material. 2.95mm insulation diameter. Jacket outer diameter: 4.95mm +/-0.15mm. 1,500 psi tensile strength. 53.5 ohm normal impedance. 93.5pF/m normal capacitance. 138dB/km attenuation at 100MHz. 5kV voltage rating. UL standard is 1354. 75' Cable length. Natural insulation color. Black jacket color. Used for instrumentation and data. Used in serial digital, communication, HD-TV and broadband applications. UL listed cable ensures quality and consistency in the cable construction. Boot is molded to cable connector for added strength. Limits the amount of bending the cable is exposed to at the connector to prevent cable breakage. Gold center pins ensures that there is a high quality connection maintaining the best return loss in high definition applications. Machined brass connectors, unlike die-cast connectors, machined brass connectors have more precise tolerances, strength and positive mating meaning low signal loss for precise video and data applications. 95 Percent shielding keeps unwanted RF interference from infiltrating signal giving nice, clean output. 80 Degree temperature rating applicable to any application found indoors. Easily route cables into other rooms or floors. Individually bagged.
