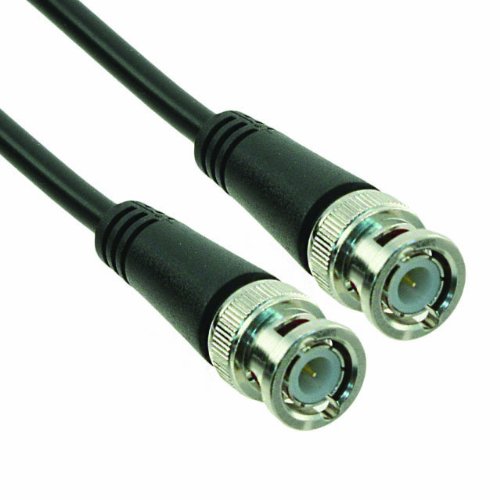

TPI 58-024-1M PVC Jacketed RG58/U Molded BNC Male to Male Coaxial Cable, 50 Ohms, 24" Length, Black
Be the first to review this item
ASIN B0095X92OS
Product Specifications
- Material Type
- Bare Copper
- Number of Items
- 1
- Overall Length
- 24 inches
- Part Number
- 58-024-1M
- Size Name
- 24" Length
Specification for this product family (See all products)
- Brand Name
- TPI
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Wednesday, June 19? Order in-stock items in the next 4 minutes and choose One-Day Shipping at checkout.
Key Features
- Bare copper conductor and braided shielding material
- Low density PE insulation material
- 2.95mm insulation diameter
- Jacket outer diameter: 4.95mm +/-0.15mm
- 24" cable length
Package Details
Shipping Weight:
0.1 pounds
Package Size:
8 x 4.1 x 0.2 inches
Product Description
Bare copper conductor and braided shielding material. Low density PE insulation material. 2.95mm insulation diameter. Jacket outer diameter: 4.95mm +/-0.15mm. 1,500 psi tensile strength. 53.5 ohm normal impedance. 93.5pF/m normal capacitance. 138dB/km attenuation at 100MHz. 5kV voltage rating. UL standard is 1354. 24" Cable length. Natural insulation color. Black jacket color. Used for instrumentation and data. Used in serial digital, communication, HD-TV and broadband applications. UL listed cable ensures quality and consistency in the cable construction. Boot is molded to cable connector for added strength. Limits the amount of bending the cable is exposed to at the connector to prevent cable breakage. Gold center pins ensures that there is a high quality connection maintaining the best return loss in high definition applications. Machined brass connectors, unlike die-cast connectors, machined brass connectors have more precise tolerances, strength and positive mating meaning low signal loss for precise video and data applications. 95 Percent shielding keeps unwanted RF interference from infiltrating signal giving nice, clean output. 80 Degree temperature rating applicable to any application found indoors. Easily route cables into other rooms or floors. Individually bagged.
