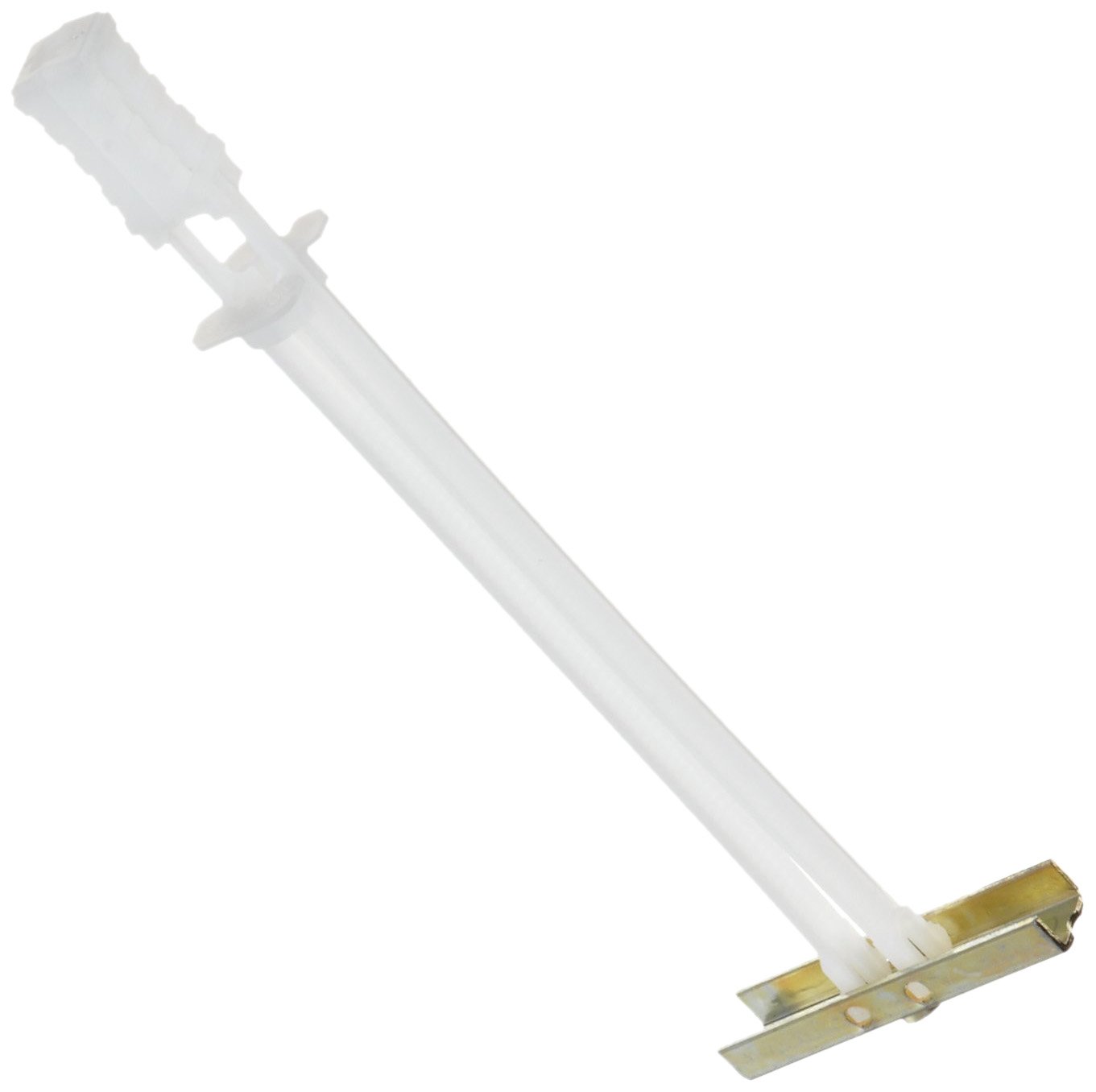

TOGGLER SNAPTOGGLE BB Toggle Anchor, Zinc-Plated Steel Channel, Made in US, 3/8" to 3-5/8" Grip Range, For 1/4"-20 UNC Fastener Size (Pack of 50)

Be the first to review this item

ASIN B0051IARUE

Specifications for this item
Maximum Compatible Thickness
3.625  inches
Part Number
25014
Thread Style
UNC
Included Components
Anchors Only
Item Weight
1.25 pounds
Brand Name
TOGGLER
Specification Met
FF-B-588-D Type V
Style Name
Toggle
Number of Items
50
Fits Hole Size
1/2 inches
Material Type
Plastic and Zinc Plated Steel
Thread Coverage
Partially Threaded
Outside Diameter
1/2  inches
UPC
036296250140
Wing Span
2  inches
EAN
0036296250140
Manufacturer Series Number
SNAPTOGGLE BB
Exterior Finish
Zinc Plated
UNSPSC Code
31162100
Thread Size
1/4"-20
Minimum Compatible Thickness
0.375  inches
System of Measurement
Inch

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Nov 26? Order in-stock items in the next 20 hrs 30 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Toggle anchor installs behind 3/8"- to 3-5/8"-thick hollow materials including gypsum board, drywall, and concrete block to provide a secure hold from within the mounting material
  • Anchor affixes to the wall before adding the bolt and fixture, allowing one-person installation and fixture changes
  • Made in USA, and works with 1/4"-20 UNC-threaded metal bolts (sold separately)
  • Ultimate tensile strength is 265 lb. in 1/2" drywall and 1,080 lb. in concrete block with a 1/4"-20 UNC bolt
  • Use one-fourth or less of listed maximum values for safe working loads (as required by local regulations)

Package Details

Shipping Weight: 1.75 pounds
Package Size: 8.3 x 5.6 x 3 inches

Product Description

The TOGGLER SNAPTOGGLE BB toggle anchor provides a secure hold from within various hollow materials 3/8" to 3-5/8" thick including gypsum board, drywall, and concrete block, and is made in USA. The anchor requires a 1/4"-20 UNC-threaded metal bolt with a minimum length equal to the thickness of the item being fastened and the thickness of the mounting material plus 1/2". The anchor channel will not rotate when installing the bolt, whether installing by hand or with a screw gun, and will stay in place if the bolt is removed to facilitate fixture and screw changes. The SNAPTOGGLE anchor meets Federal Specification FF-B-588-D for Type V anchors.

The anchor consists of a corrosion-resistant zinc-plated steel anchor channel that inserts through a 1/2" drilled hole in walls, ceilings, or floors and installs against the back side of the mounting material; plastic straps attached to the channel that position it into place; and a plastic cap that slides down the straps and presses into the drilled hole firmly to lock the anchor channel in place behind the mounting material. Once the cap is set in place, the straps snap off by hand. The item being fastened affixes to the mounting material by inserting a bolt through the item, into the drilled hole, and through the anchoring channel behind the material and tightening.

Specifications

Ultimate Tensile and Shear Strength Values

MediaDrill DiameterBolt DescriptionUltimate Tensile StrengthUltimate Shear Strength
1/2" Drywall1/2"1/4"-20 UNC zinc-plated steel265 lb.241 lb.
5/8" Drywall1/2"1/4"-20 UNC zinc-plated steel356 lb.324 lb.
1/2" Drywall with 25 Gauge Stud*1/2"1/4"-20 UNC zinc-plated steel425 lb.Not available
5/8" Drywall with 25 Gauge Stud*1/2"1/4"-20 UNC zinc-plated steel464 lb.Not available
Concrete Block1/2"1/4"-20 UNC zinc-plated steel1,080 lb.Not available

*Failure measured as breakage of drywall portion.

Warning: Use one-fourth or less of listed maximum values for safe working loads (as required by local regulations). For more information, see the manufacturer's technical bulletin.

Anchors provide reinforcement to a fastener that would otherwise have insufficient hold in substrates such as concrete, brick, stone, drywall, or other materials for a particular application. The fastener may be included with or integrated into the anchor itself, or it may be sold separately. Anchors provide support through various methods, including expansion from within or behind the substrate or even adhesive compounds.

TOGGLER Anchor System manufactures wall anchors and toggle bolts. The company, founded in 1968, is headquartered in Norwalk, CT.

How can we improve our Product Description?

Important Information

Directions

Drill a 1/2" (13mm) hole. Hold metal channel flat alongside plastic straps and slide channel through hole. Minimum clearance behind wall: 1-7/8" (48mm).

Hold ends of straps between thumb and forefinger and pull toward you until channel rests flush behind wall. Slide plastic cap along straps with other hand until flange of cap is flush with wall.

Snap straps at wall by pushing side to side, snapping off straps level with flange of cap.

Place item over flange. Insert bolt through item and tighten until flush against item, then stop.

Use machine screw or bolt to match thread in channel: BB (1/4"-20). Bolt length = item thickness + wall or ceiling thickness + 1/2" (13mm)
