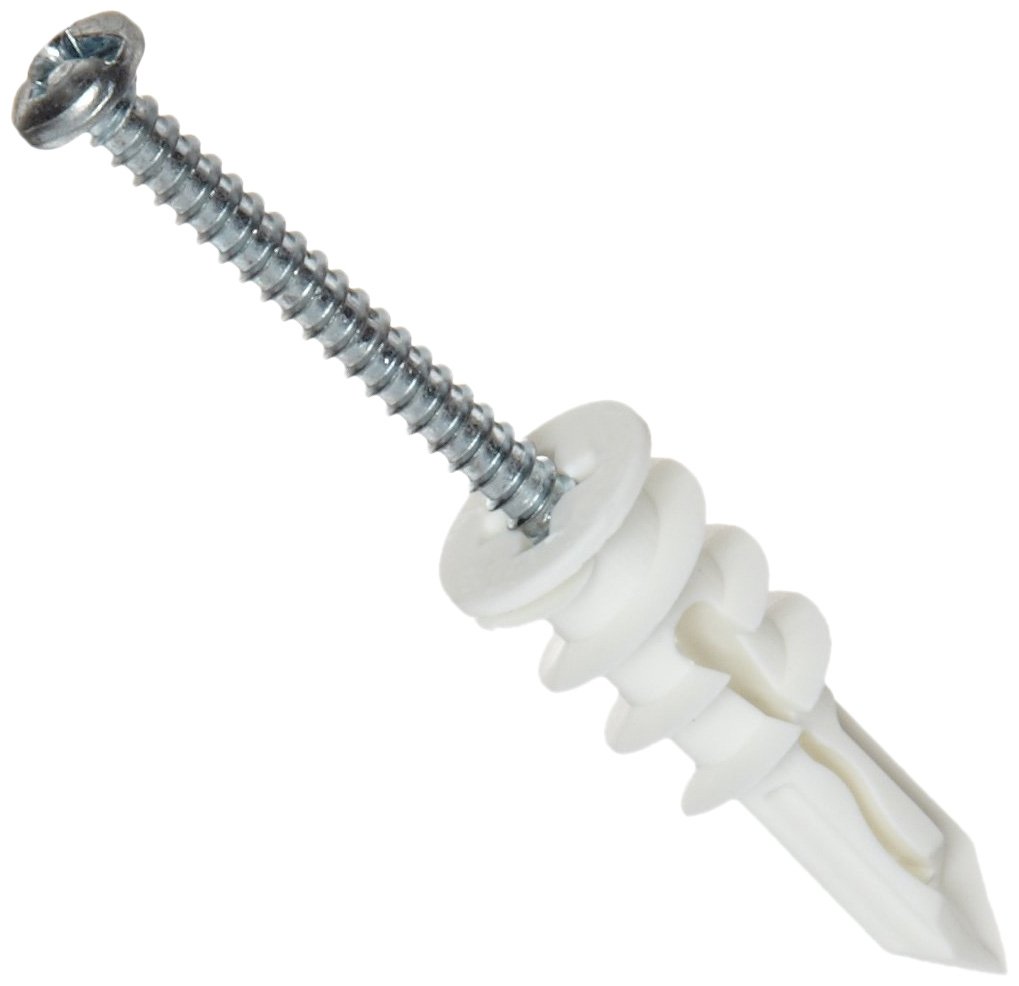

TOGGLER SnapSkru SPM Mini Self-Drilling Drywall Anchor with Screws, Glass-Filled Nylon, Made in US, For #6 to #8 Fastener Sizes (Pack of 100)

Be the first to review this item

ASIN B0051IAMCM

Specifications for this item
Maximum Compatible Thickness
0.625  inches
Drive Style
Phillips
Part Number
30030
Included Components
Anchors & Screws
Brand Name
TOGGLER
Style Name
Self Drilling
Number of Items
100
Material Type
Glass-filled Nylon
Outside Diameter
1/4  inches
UPC
036296300302
Manufacturer Series Number
SnapSkru SPM
EAN
0036296300302
Compatible Material
Drywall
Head Diameter
0.4  inches
UNSPSC Code
31162100
Thread Size
#6 to #8
System of Measurement
Inch
Overall Length
1-5/8  inches
Minimum Compatible Thickness
0.375  inches

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Sep 17? Order in-stock items in the next 4 hrs 47 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Self-drilling anchor installs into 3/8"- to 5/8"-thick drywall ceilings and walls without requiring a predrilled hole
  • Glass-filled nylon body has jaws that open to provide a firm vibration- and shock-resistant hold when a screw is inserted
  • Made in USA, and includes #6 x 1-1/4" screws
  • Ultimate tensile strength is 65 lb. in 1/2" drywall with a #6 x 1-1/4" screw
  • Use one-fourth or less of listed maximum values for safe working loads (as required by local regulations)

Package Details

Shipping Weight: 0.8 pounds
Package Size: 5.1 x 2.9 x 2.7 inches

Product Description

The TOGGLER SnapSkru SPM Mini self-drilling drywall anchor installs into 3/8"- to 5/8"-thick drywall ceilings and walls without requiring a predrilled hole, includes #6 x 1-1/4" screws, and is made in USA. Its corrosion-resistant glass-filled nylon body installs into drywall with a Phillips driver, a hand drill, or a screw gun. The anchor's positive stop mechanism prevents the anchor from being driven too far into the drywall. Inserting an included screw activates the anchor's jaw, locking the anchor into place and compressing the drywall for a vibration- and shock-resistant hold. The jaws emit a noise when activated, providing audible confirmation that the anchor system has been installed successfully. If using screws other than those supplied, the anchor accepts #6 to #8 size sheet metal screws with a length equal to the thickness of the item being fastened plus 1".

Specifications

Ultimate Tensile Strength Values

AnchorScrew Description3/8" Drywall1/2" Drywall5/8" Drywall
SPM Mini#6 x 1-1/4"57 lb.65 lb.95 lb.
SP#8 x 1-1/2"57 lb.79 lb.135 lb.

Ultimate Shear Strength Values

AnchorScrew Description3/8" Drywall1/2" Drywall5/8" Drywall
SPM Mini#6 x 1-1/4"105 lb.131 lb.175 lb.
SP#8 x 1-1/2"108 lb.149 lb.178 lb.

Warning: Use one-fourth or less of listed maximum values for safe working loads (as required by local regulations). For more information, see the manufacturer's technical bulletin.

Anchors provide reinforcement to a fastener that would otherwise have insufficient hold in substrates such as concrete, brick, stone, drywall, or other materials for a particular application. The fastener may be included with or integrated into the anchor itself, or it may be sold separately. Anchors provide support through various methods, including expansion from within or behind the substrate or even adhesive compounds.

TOGGLER Anchor System manufactures wall anchors and toggle bolts. The company, founded in 1968, is headquartered in Norwalk, CT.

What’s in the Box?
  • (100) TOGGLER SnapSkru SPM Mini anchors
  • (100) #6 x 1-1/4" screws
