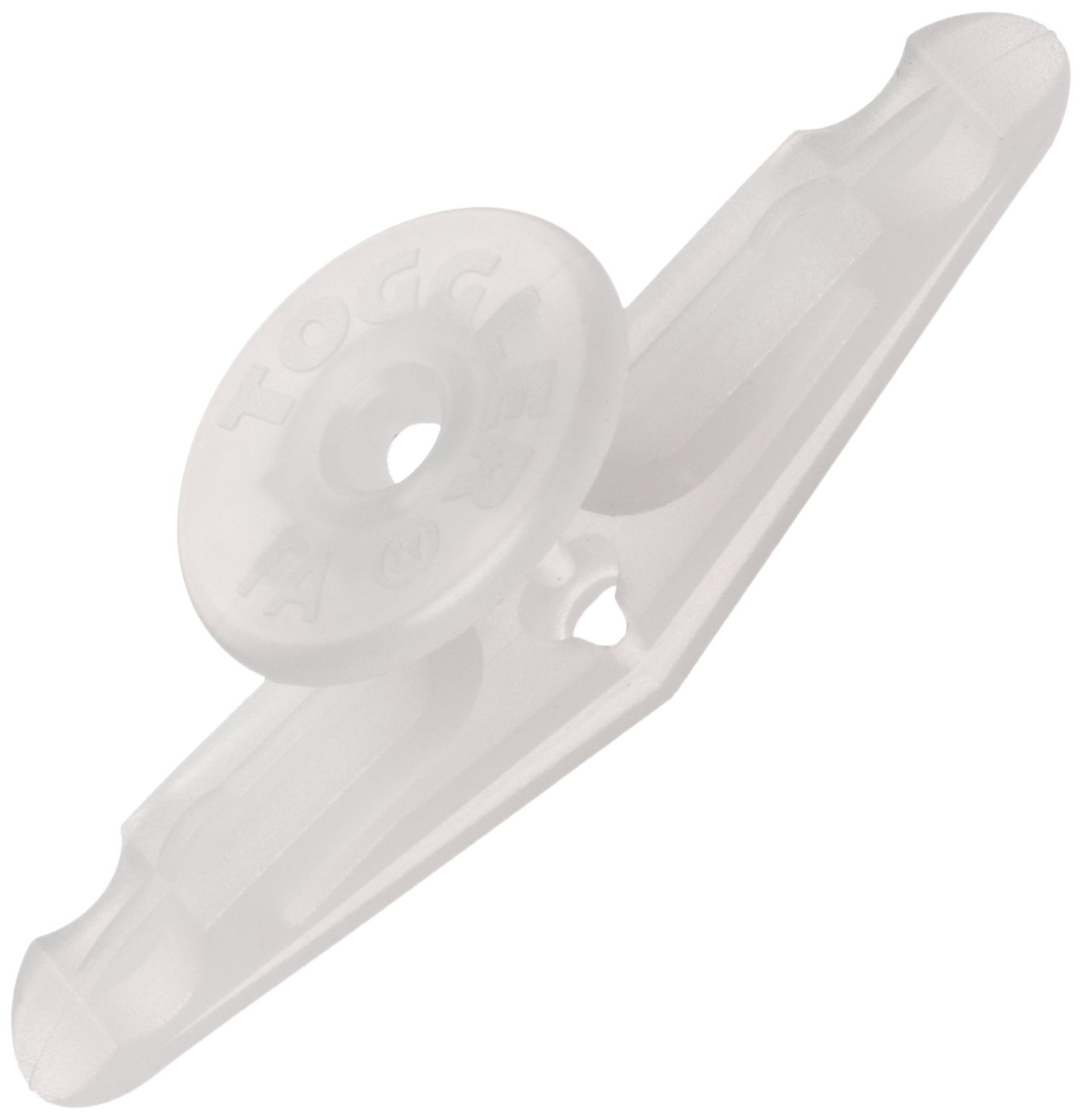

TOGGLER Toggle TC Commercial Drywall Anchor with Screws, Polypropylene, Made in US, 5/8" to 3/4" Grip Range, For #6 to #14 Fastener Sizes (Pack of 20)

Be the first to review this item

ASIN B0051IBAG4

Specifications for this item
Maximum Compatible Thickness
0.75  inches
Part Number
50550
Included Components
Anchors & Screws
Item Weight
0.2 pounds
Brand Name
TOGGLER
Specification Met
FF-B-588D Type IV
Style Name
Toggle
Number of Items
20
Fits Hole Size
5/16 inches
Material Type
Polypropylene (PP)
Outside Diameter
5/16  inches
UPC
036296505509
Manufacturer Series Number
Toggle TC
EAN
0036296505509
Compatible Material
Drywall
Upper Temperature Range
212  Degrees Fahrenheit
UNSPSC Code
31162100
Thread Size
#6 to #14
LowerTemperature Range
-20  Degrees Fahrenheit
System of Measurement
Inch
Minimum Compatible Thickness
0.625  inches

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Oct 27? Order in-stock items in the next 1 day 10 hrs 49 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Commercial drywall anchor provides a firm hold from within 5/8"- to 3/4"-thick drywall
  • Anchor affixes to the wall before adding the bolt and fixture, allowing one-person installation and fixture changes
  • Made in USA, and includes #8 x 1-3/4" screws
  • Ultimate tensile strength is 159 lb. in 5/8" drywall with a #8 x 1-3/4" screw
  • Use one-fourth or less of listed maximum values for safe working loads (as required by local regulations)

Package Details

Shipping Weight: 0.2 pounds
Package Size: 9 x 3.1 x 0.7 inches

Product Description

The TOGGLER Toggle TC commercial drywall anchor provides a firm hold in 5/8"- to 3/4"-thick drywall, includes #8 x 1-3/4" screws, and is made in USA. The anchor is made from polypropylene that resists corrosion, is nonconductive for anchoring electrical components, and is low-friction to facilitate screw installation. The anchor hammers into a 5/16" drilled hole until flush with the mounting material's surface. Before the screw can be inserted into the anchor to create a secure hold, the included key is used to open the anchor's wings behind the material. The fins on the anchor head grip the mounting material to prevent spinning when a screw is inserted, and the anchor will stay in place if the fastener is removed, facilitating fixture and screw changes. If using screws other than those supplied, the anchor accepts #6 to #14 size screws with a minimum thread length of 1-1/2". The Toggle TC anchor meets Federal Specification FF-B-588-D for Type IV anchors.

Specifications

Ultimate Tensile Strength Values

AnchorDrill DiameterScrew Description1/4" Plywood1/2" Plywood3/8" Drywall1/2" Drywall5/8" Drywall
TA5/16"#8 x 1-1/4"124 lb.Not applicableNot applicableNot applicableNot applicable
TB5/16"#8 x 1-1/2"Not applicable175 lb.97 lb.143 lb.Not applicable
TC5/16"#8 x 1-3/4"Not applicableNot applicableNot applicableNot applicable159 lb.

Ultimate Shear Strength Values

AnchorDrill DiameterScrew Description1/4" Plywood3/8" Drywall1/2" Drywall5/8" Drywall
TA5/16"#8 x 1-1/4"265 lb.Not applicableNot applicableNot applicable
TB5/16"#8 x 1-1/2"Not applicable126 lb.167 lb.Not applicable
TC5/16"#8 x 1-3/4"Not applicableNot applicableNot applicable237 lb.

Warning: Use one-fourth or less of listed maximum values for safe working loads (as required by local regulations). For more information, see the manufacturer's technical bulletin.

Anchors provide reinforcement to a fastener that would otherwise have insufficient hold in substrates such as concrete, brick, stone, drywall, or other materials for a particular application. The fastener may be included with or integrated into the anchor itself, or it may be sold separately. Anchors provide support through various methods, including expansion from within or behind the substrate or even adhesive compounds.

TOGGLER Anchor System manufactures wall anchors and toggle bolts. The company, founded in 1968, is headquartered in Norwalk, CT.

What’s in the Box?
  • (20) TOGGLER Toggle TC anchors
  • (20) #8 x 1-3/4" screws
  • (1) Setting key
