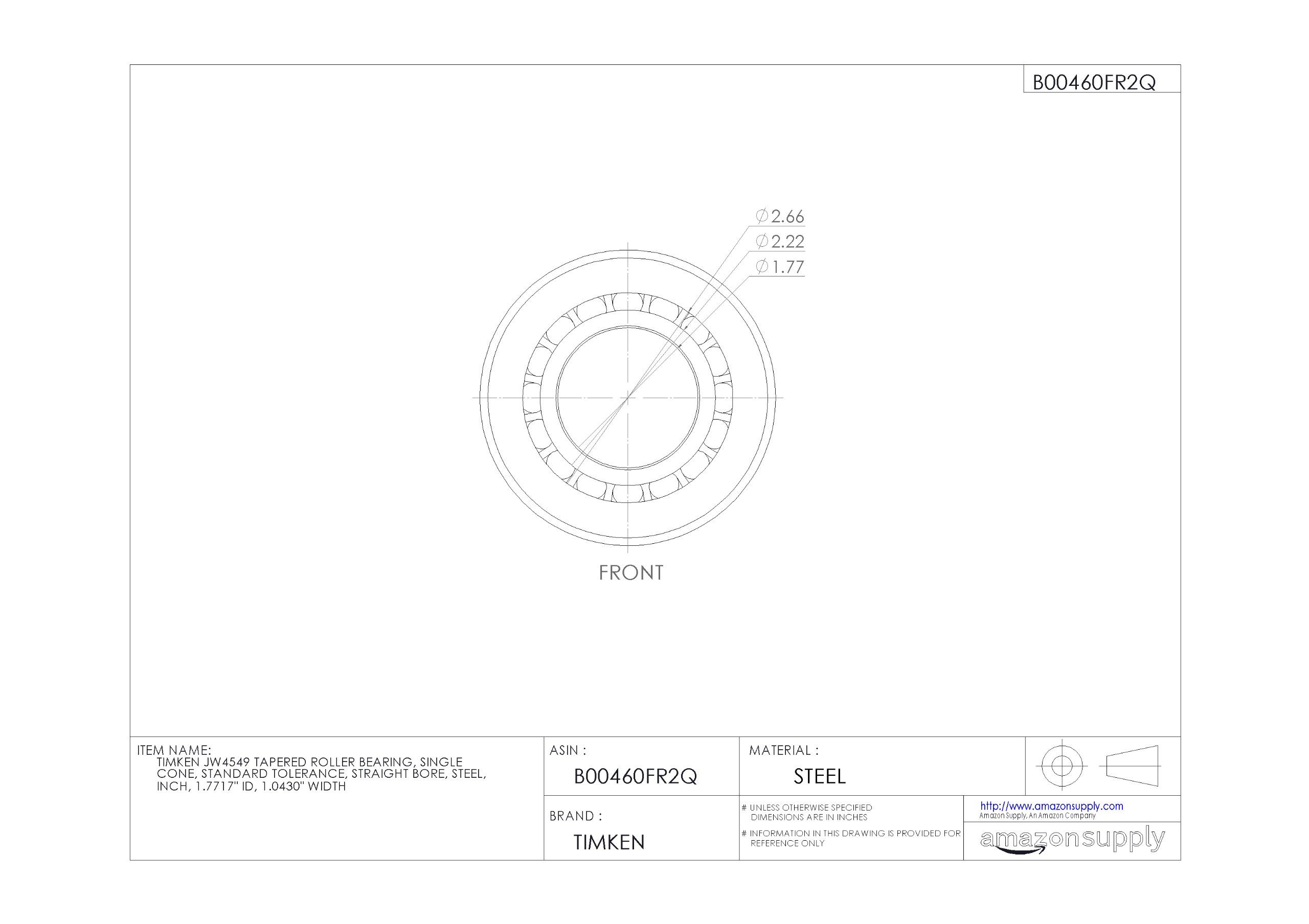

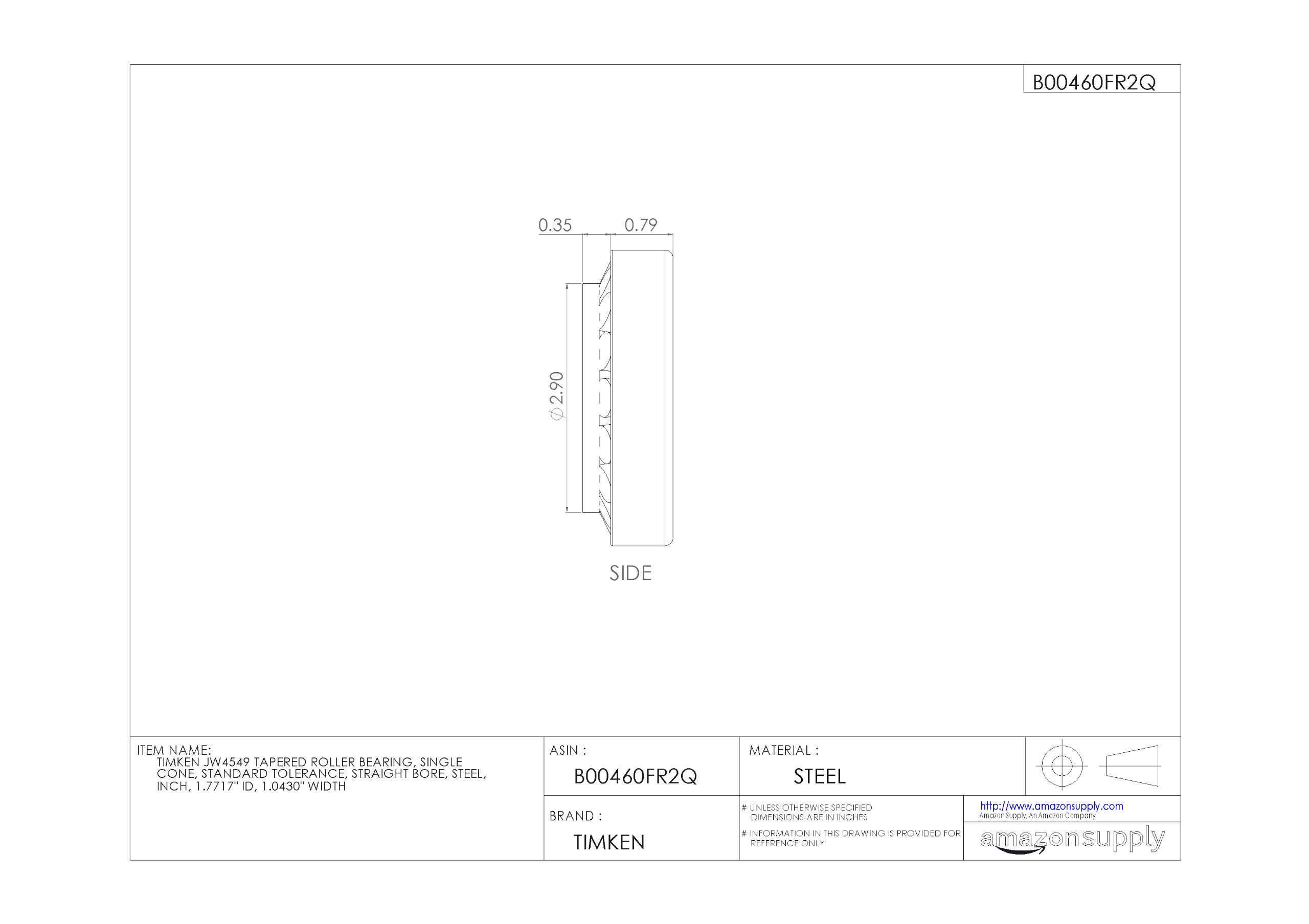

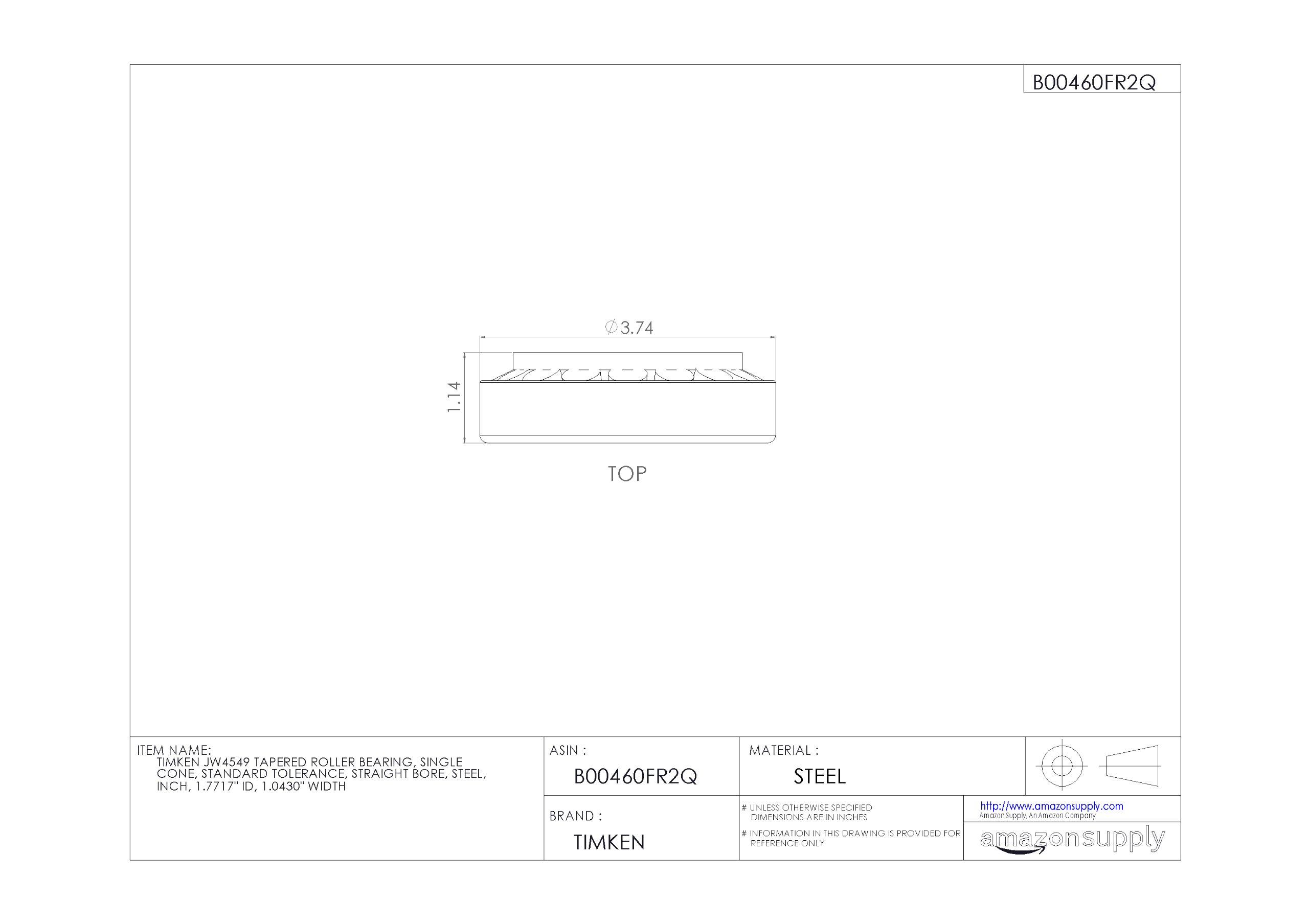

Timken JW4549 Tapered Roller Bearing, Single Cone, Standard Tolerance, Straight Bore, Steel, Inch, 1.7717" ID, 1.0430" Width

Be the first to review this item

ASIN B00460FR2Q

Specifications for this item
Number of Items
1
Overall Width
1.0430  inches
Item Shape
Cone
Bore Diameter
1.7717  inches
Tolerance Held
Standard
Material Type
Steel
Part Number
JW4549
Outside Diameter
N/A  inches
UPC
053893141121
Size Name
0.100" Max Shaft Fillet Radius
Brand Name
Timken
Manufacturer Series Number
JW4500
EAN
0053893141121
Specification Met
ABEC
Load Capacity
5389.900  pounds
Style Name
Straight Bore
List price:
$89.95
Price:
$53.65
You save:
$36.30 (40%)
Quantity:

In Stock (2)

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Apr 18? Order in-stock items in the next 21 hrs 25 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Single cone (inner ring) for connecting to compatible cups (outer rings, sold separately) to form a complete single tapered roller bearing
  • Supports both radial and axial loads between a rotating and non-rotating member
  • Operating temperatures range from -54 to 120 degrees C (-65 to 250 degrees F)
  • Stamped steel cage evenly spaces rollers for reduced friction, vibration, and noise
  • Open configuration for lubrication applied in place

Package Details

Shipping Weight: 1.3 pounds
Package Size: 4.1 x 4.1 x 1.4 inches

Product Description

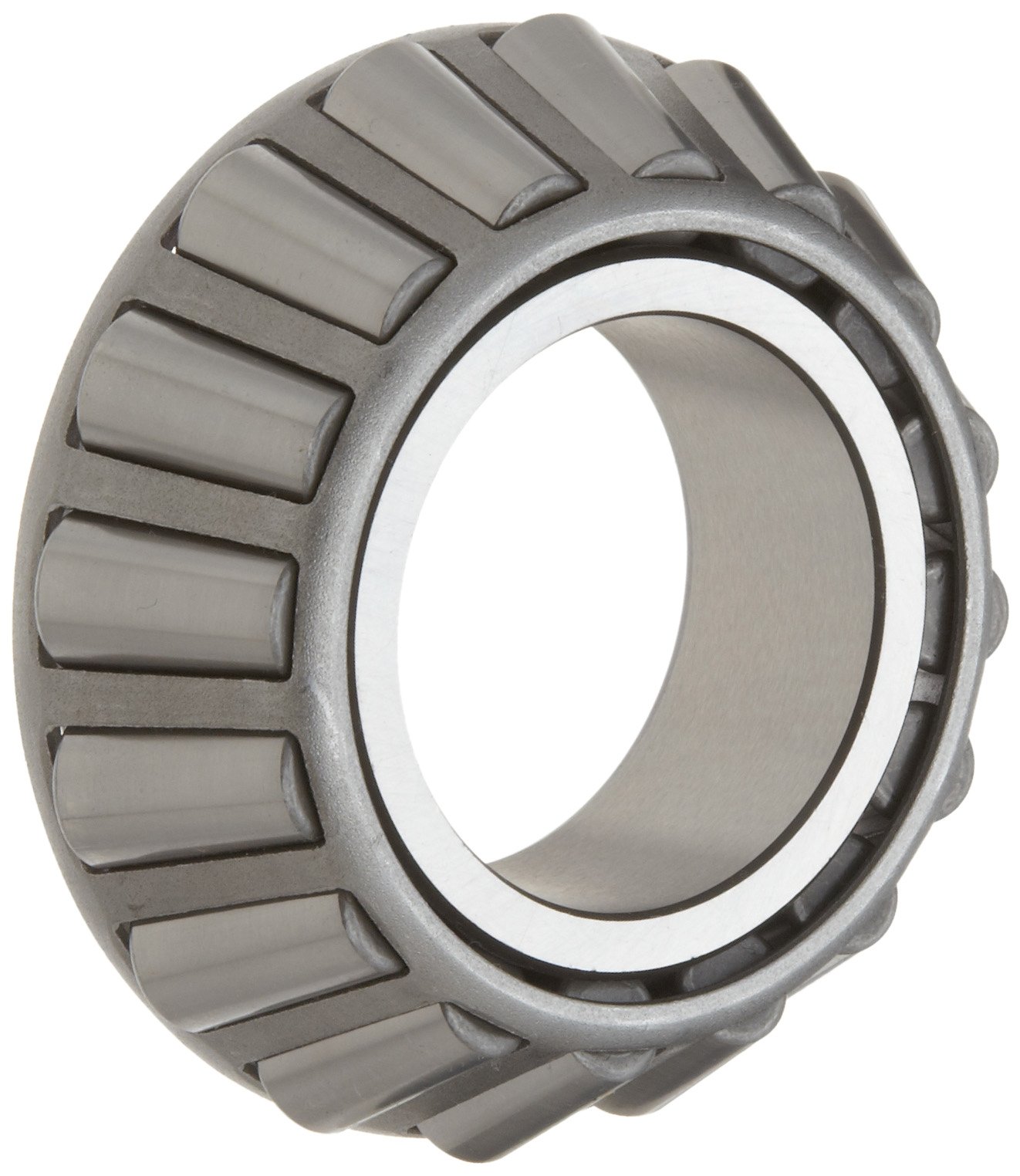

This Timken JW4549 single cone with a stamped steel cage matches with a single cup (outer ring, sold separately) to assemble into a complete single tapered roller bearing, suitable for applications that support both radial and axial loads. The cone assembly does not contract or expand under operating temperatures ranging from -54 to 120 degrees C (-65 to 250 degrees F). Generally mounted in opposing pairs on a shaft to evenly distribute loads, this single cone is made of Timken's own high-alloy steel for durability, heat tolerance, and resistance to deformity under heavy loads. The stamped steel cage prevents rollers from coming into contact with each other during use, reducing friction, vibration, and noise. As part of a separable tapered roller bearing unit, this single cone assembly has an open design that allows for lubrication and accurate adjustments. This single tapered roller bearing is for use in high-load, moderate-speed applications that include automotive axle systems and conveyor systems in heavy duty industries such as mining, construction and agriculture, among many other applications.

Specifications

Tapered roller bearings—Boundary dimensions and series designationsISO 355
Inch part numbering systemABMA standard 19.2
Width tolerance standardsISO 492
Tapered roller bearing naming conventionsISO 720

Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

The Timken Company manufactures a variety of bearings, alloy steels, and related components and assemblies that meet International Organization for Standardization (ISO) standards for quality assurance. Founded in 1899, the Timken Company is based in Canton, Ohio.
