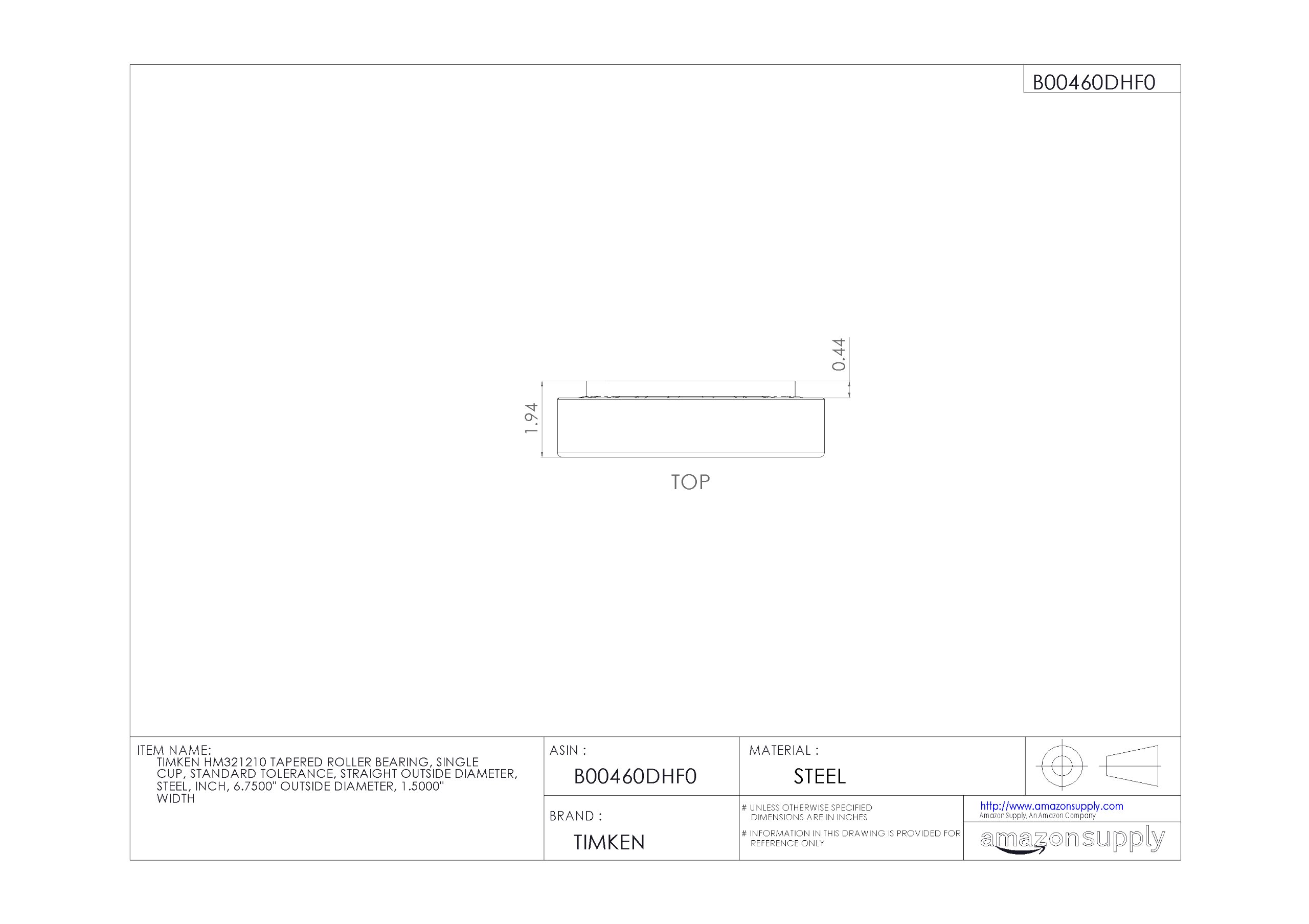

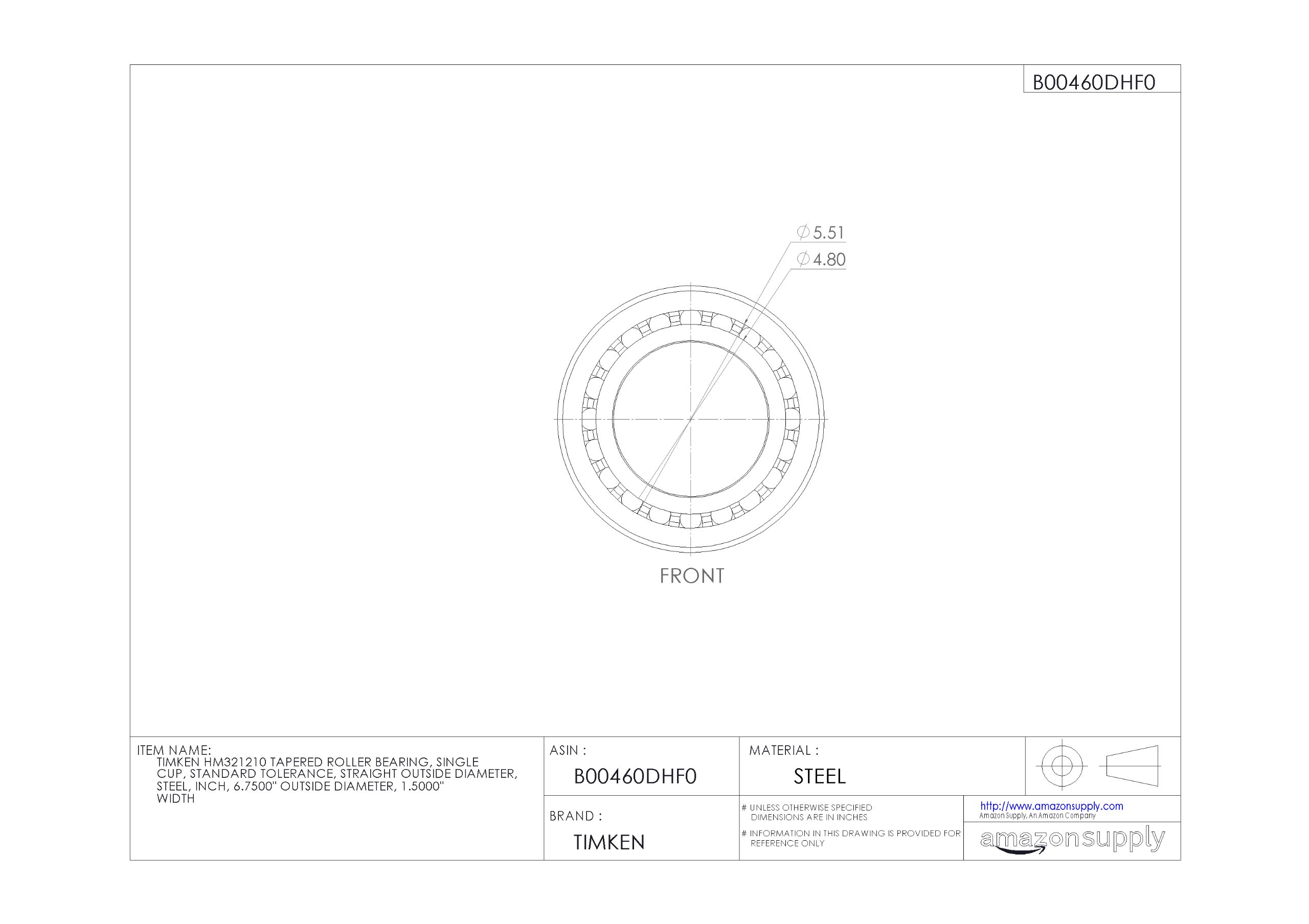

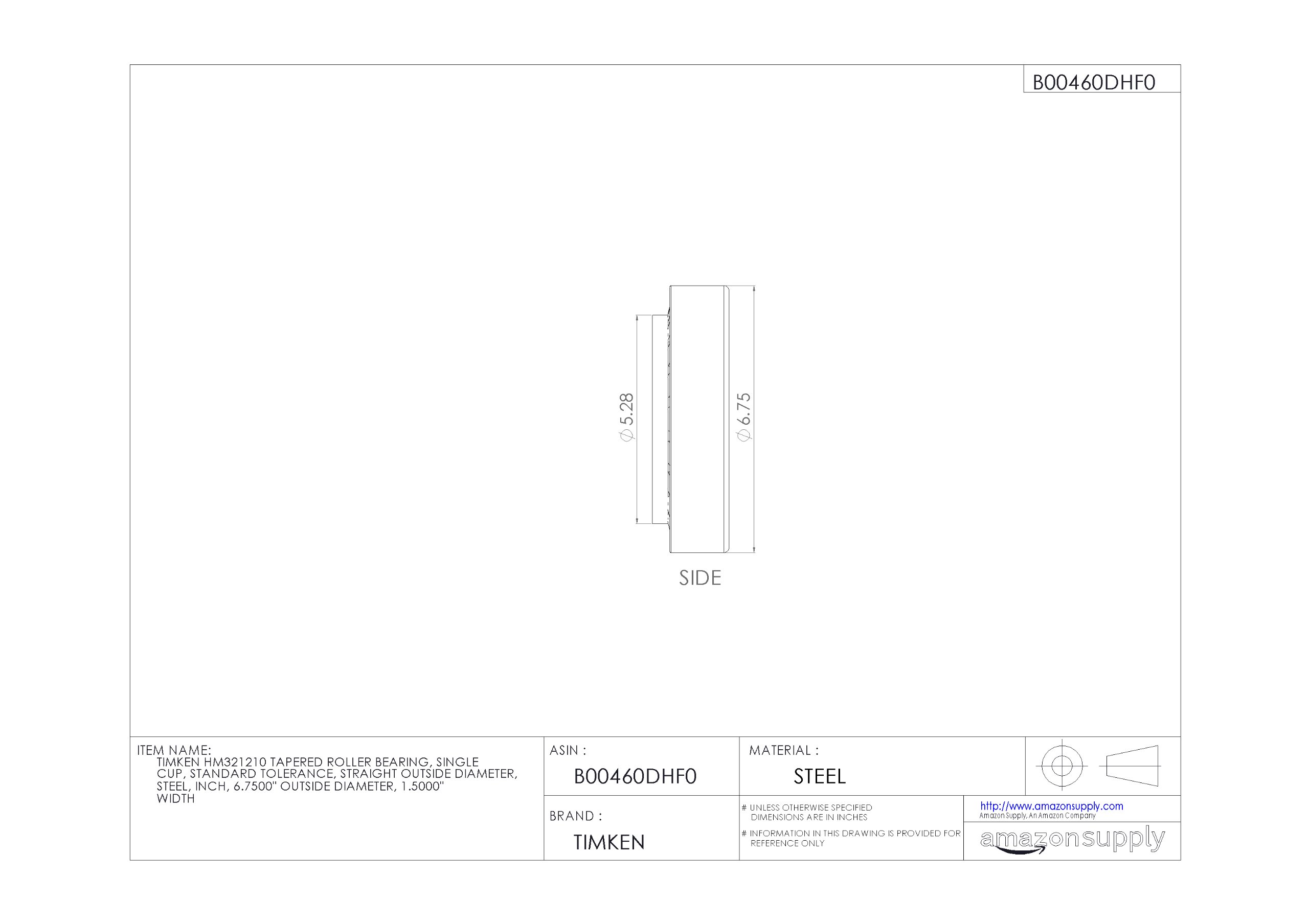

Timken HM321210 Tapered Roller Bearing, Single Cup, Standard Tolerance, Straight Outside Diameter, Steel, Inch, 6.7500" Outside Diameter, 1.5000" Width

Be the first to review this item

ASIN B00460DHF0

Specifications for this item
Overall Width
1.5000  inches
Item Shape
Cup
Bore Diameter
N/A  inches
Part Number
HM321210
Item Weight
1 pounds
Brand Name
Timken
Specification Met
ABEC
Style Name
Straight Outside Diameter
Number of Items
1
Tolerance Held
Standard
Material Type
Steel
UPC
053893594897
Outside Diameter
6.7500  inches
Size Name
0.130" Max Housing Fillet Radius
Manufacturer Series Number
HM321200
EAN
0053893594897
Load Capacity
18647.100  pounds
UNSPSC Code
31171505

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Dec 19? Order in-stock items in the next 3 hrs 39 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Single cup (outer ring) for connecting to cones (inner ring assemblies, sold separately) to form a complete single tapered roller bearing
  • Supports both radial and axial loads between a rotating and non-rotating member
  • Operating temperatures range from -54 to 120 degrees C (-65 to 250 degrees F)
  • High alloy steel for durability and heat tolerance
  • Open configuration for lubrication applied in place

Package Details

Shipping Weight: 3.25 pounds
Package Size: 7.4 x 7.3 x 1.7 inches

Product Description

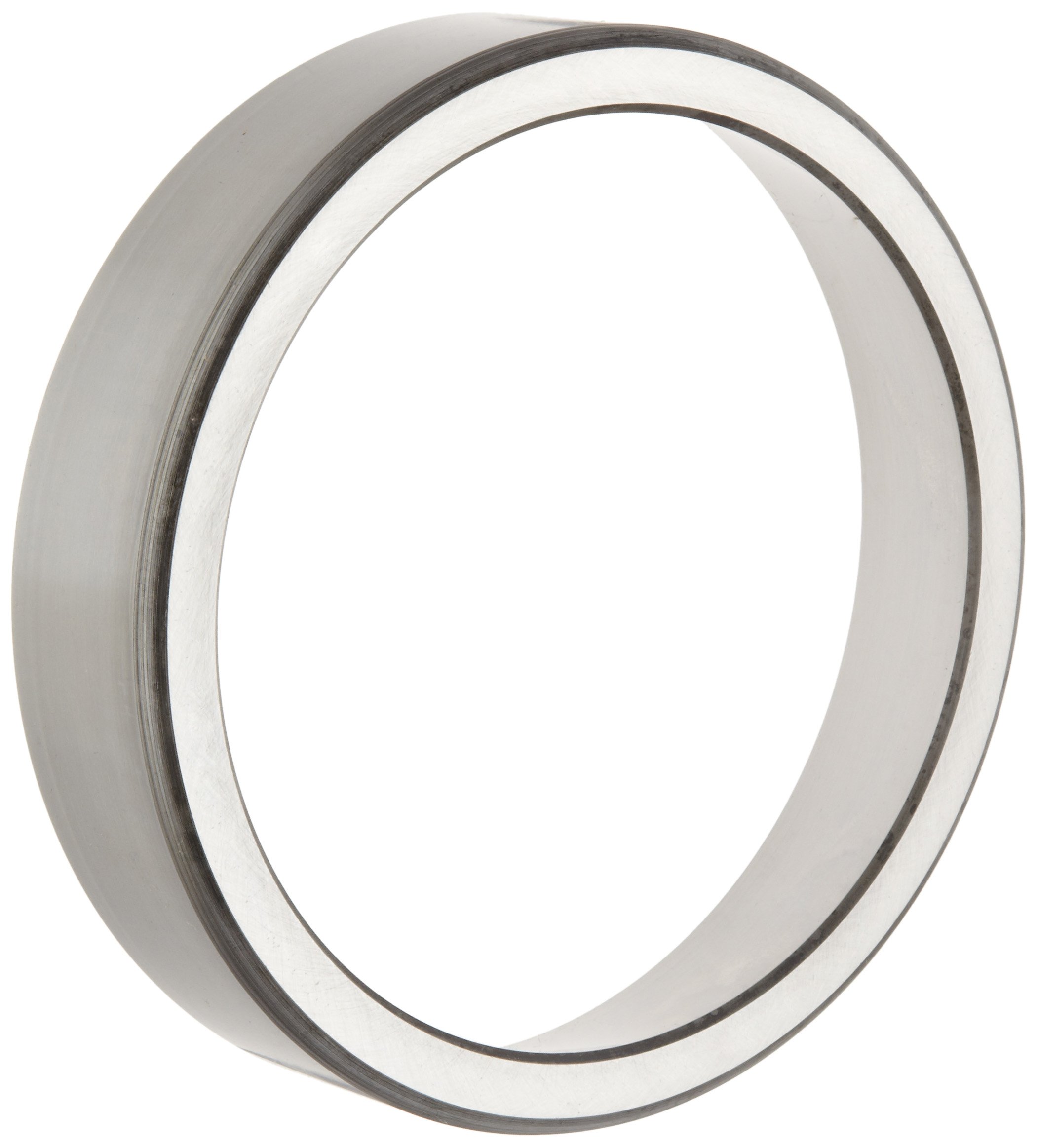

This Timken HM321210 single cup matches with a single cone (inner ring assembly, sold separately) to assemble into a complete single tapered roller bearing, suitable for applications that support both radial and axial loads. This cup is matched to its cone assembly based on the load that the bearing needs to support, and if the bearing needs radial internal clearance to accommodate thermal expansion. Generally mounted in opposing pairs on a shaft to evenly distribute loads, this single tapered roller bearing assembly is stable in temperatures ranging from -54 to 120 degrees C (-65 to 250 degrees F). The single cup is made of Timken's high-alloy steel for durability, heat tolerance, and resistance to deformity under heavy loads. As part of a separable tapered roller bearing unit, this single cup has an open design that allows for lubrication and accurate adjustments. This single tapered roller bearing is for use in high-load, moderate-speed applications that include automotive axle systems and conveyor systems in heavy duty industries such as mining, construction and agriculture, among others.

Specifications

Tapered roller bearings—Boundary dimensions and series designationsISO 355
Inch part numbering systemABMA standard 19.2
Width tolerance standardsISO 492
Tapered roller bearing naming conventionsISO 720

Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

The Timken Company manufactures a variety of bearings, alloy steels, and related components and assemblies that meet International Organization for Standardization (ISO) standards for quality assurance. Founded in 1899, the Timken Company is based in Canton, Ohio.
