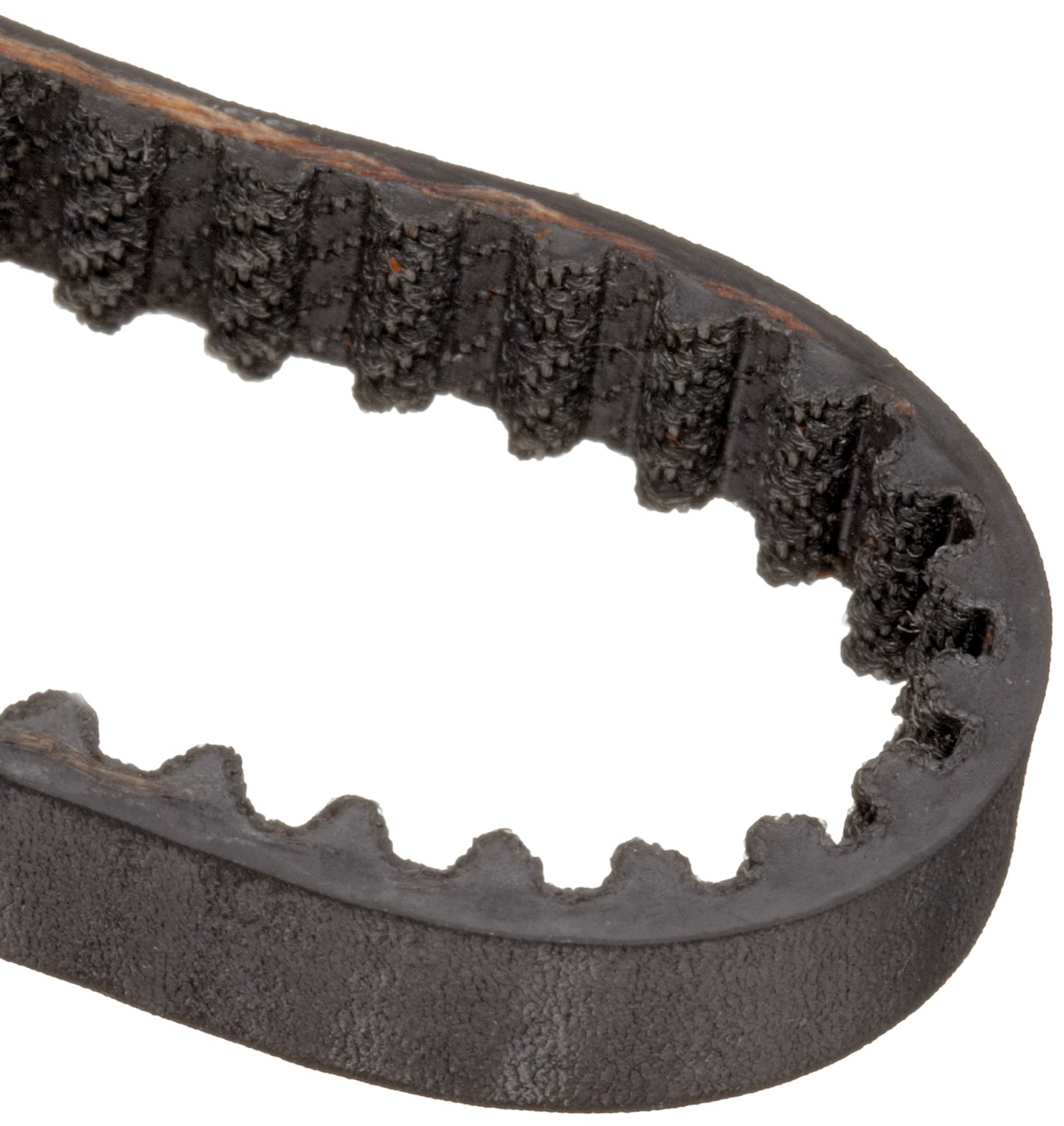

Timing Belt, Single-Sided, Neoprene, Metric

Be the first to review this item

Product Specifications
UNSPSC Code
26111802
Brand Name
Small Parts

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Dec 23? Order in-stock items in the next 1 hr 57 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 34 Next 14 »
Width Length Trade Size ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All
Currently showing 1-20 of 34 Next 14 »
6 mm 474.0 mm TB6M-0158-01 B000FN28LG yes $5.43 Buy Options
6 mm 462.0 mm TB6M-0154-01 B000FN89LY yes $5.43 Buy Options
6 mm 501.0 mm TB6M-0167-01 B000FN41TS yes $5.48 Buy Options
6 mm 459.0 mm TB6M-0153-01 B000FN415M yes $3.33 Buy Options
6 mm 483.0 mm TB6M-0161-01 B000FN28PM yes $5.95 Buy Options
6 mm 480.0 mm TB6M-0160-01 B000FN66PU yes $5.43 Buy Options
6 mm 447.0 mm TB6M-0149-01 B000FN413E yes $4.12 Buy Options
6 mm 444.0 mm TB6M-0148-01 B000FN668W yes $6.98 Buy Options
9 mm 444.0 mm TB9M-148-01 B000FN42HO yes $6.08 Buy Options
9 mm 381.0 mm TB9M-127-01 B000FN8AKY yes $5.83 Buy Options
9 mm 189.0 mm TB9M-063-01 B000FN27IA yes $5.44 Buy Options
9 mm 447.0 mm TB9M-149-01 B000FN42JW yes $6.08 Buy Options
9 mm 399.0 mm TB9M-133-01 B000FN29HE yes $6.15 Buy Options
9 mm 324.0 mm TB9M-108-01 B000FN28SE yes $5.76 Buy Options
9 mm 465.0 mm TB9M-155-01 B000FN8B1W yes $5.99 Buy Options
9 mm 297.0 mm TB9M-099-01 B000FN41F2 yes $5.65 Buy Options
9 mm 357.0 mm TB9M-119-01 B000FN8A9U yes $5.78 Buy Options
9 mm 183.0 mm TB9M-061-01 B000FN65LA yes $5.44 Buy Options
9 mm 351.0 mm TB9M-117-01 B000FN8A8Q yes $6.13 Buy Options
9 mm 276.0 mm TB9M-092-01 B000FN417K yes $5.58 Buy Options

Key Features

  • Synchronous belt with trapezoid tooth profile for drives requiring exact timing
  • Neoprene for high tensile strength and resistance to abrasion
  • Fiberglass-reinforced for stability and resistance to elongation
  • Nylon tooth facing for resistance to wear
  • Smooth engagement of belt and pulley for resistance to noise and vibration

Product Description

This timing belt is a one-sided synchronous belt with a trapezoidal tooth profile for drives requiring exact timing. It is made of neoprene rubber for high tensile strength and resistance to abrasion, and it is fiberglass-reinforced for stability and resistance to elongation. It has a nylon tooth facing for resistance to wear. The smooth engagement of the belt and pulley resists noise and vibration. This synchronous belt is suitable for use in elevation mechanisms, positioning drives, linear motion drives, reciprocating drives, reversing drives, fixed center drives, and synchronized tracking, among others.

Synchronous belts (also known as timing belts) have teeth on the underside of the belt that join with the grooves in a rotating pulley to transmit power at a constant speed without slippage. They are made of compounded rubber and are reinforced lengthwise with fiberglass cords for added strength. The belts require minimal re-tensioning and maintenance, no lubrication, and provide quiet operation. Synchronous belts are used in industrial applications such as agriculture, textile manufacturing, mining, and printing machinery, and consumer applications such as office equipment, home appliances, and automobiles.
