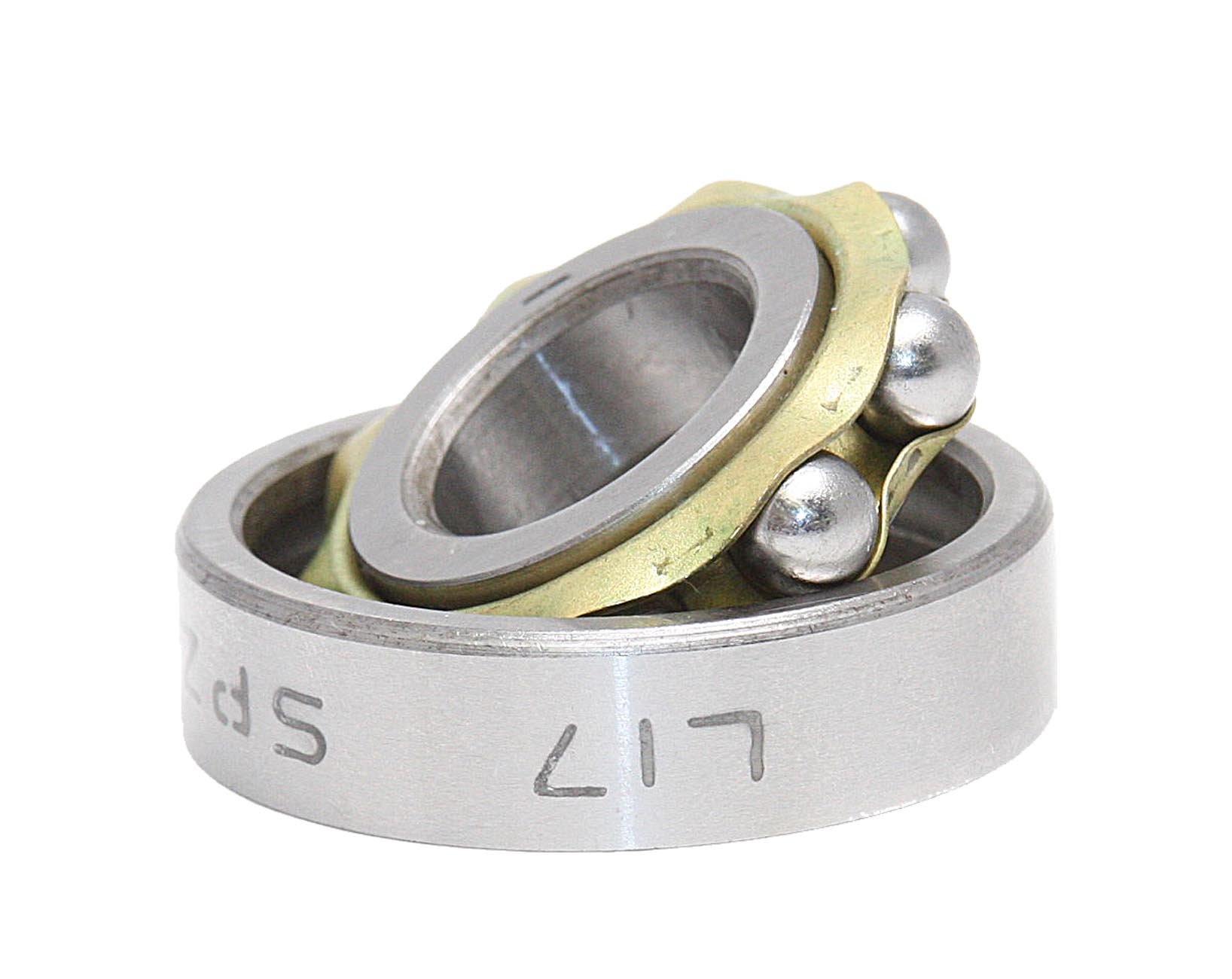

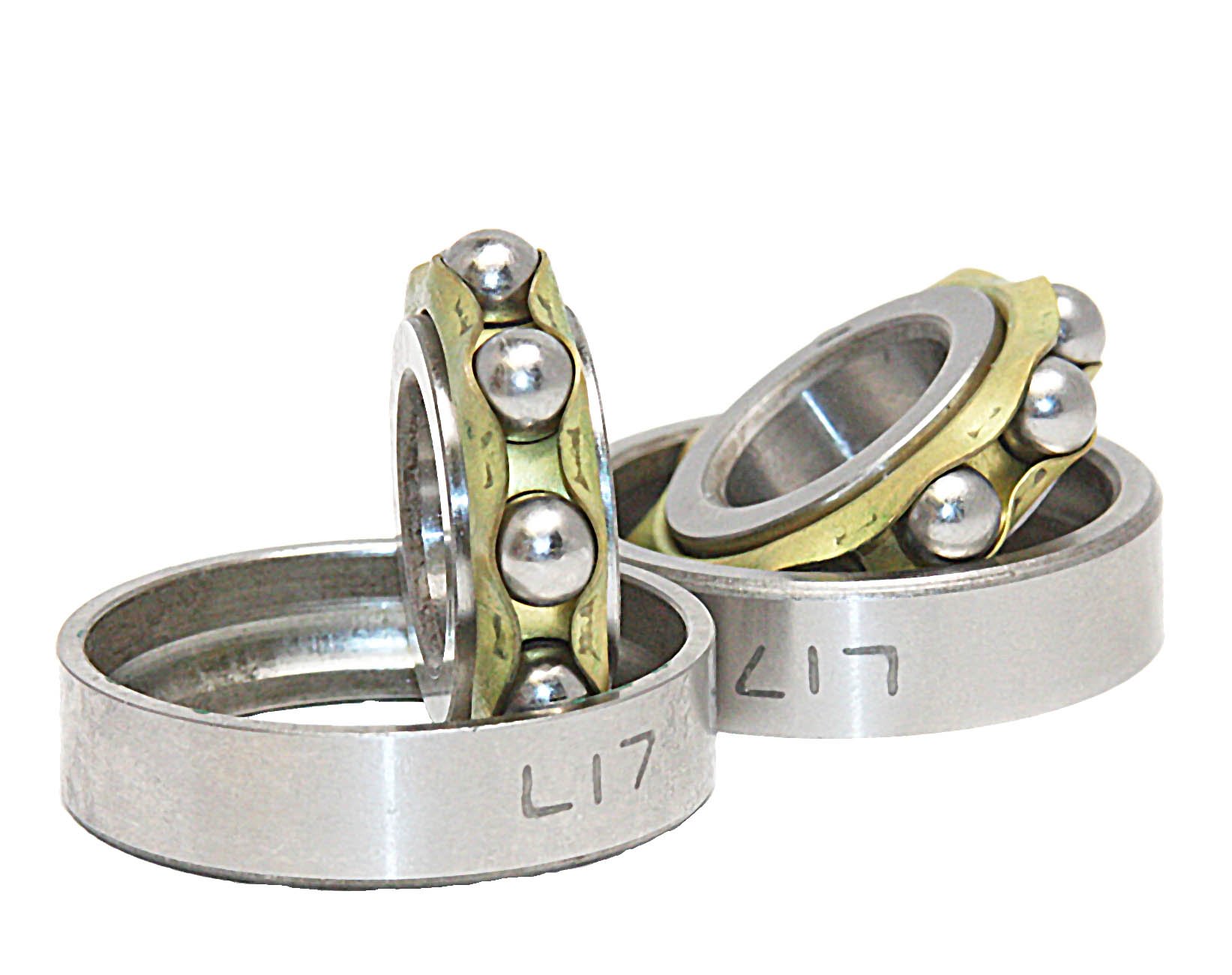

50 Thrust/Angular Contact Bearing 17x40x10:Best Deal

Be the first to review this item

ASIN B002BBKI1M

Specifications for this item
Number of Items
1
Overall Width
10  millimeters
Part Number
kit837
Outside Diameter
40  millimeters
Brand Name
VXB
Inside Diameter
17  millimeters
UNSPSC Code
31171531

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 1? Order in-stock items in the next 1 day 9 hrs 54 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Single-row thrust/angular contact ball bearing, supporting one-directional thrust loads, and combined loads where thrust load is predominant
  • Ball contact angle of 40 degrees relative to the inner and outer raceways increases thrust load capacity
  • Open configuration for lubrication applied in place
  • Bronze cage evenly spaces balls for reduced friction, vibration, and noise
  • Normal axial internal clearance for applications where thermal expansion is not a factor

Package Details

Shipping Weight: 6.3 pounds
Package Size: 9.3 x 7.1 x 1.9 inches

Product Description

The VXB thrust/angular contact ball bearing is an open bearing and has a 40-degree contact angle, bronze cage, and normal clearance rating. It supports one-directional thrust loads, and combined radial and thrust loads where the thrust load is predominant. This bearing is made of low-alloy, through-hardened carbon chromium steel for durability and resistance to deformity under heavy loads. The 40-degree contact angle of the balls in relation to the raceways gives the bearing a greater capacity for supporting thrust loads over bearings with a lower contact angle. Its open design facilitates lubricating the bearing in place and dissipating heat. This bearing has a bronze cage to prevent the balls from coming into contact with each other during use, reducing friction, vibration, and noise. The bearing has a normal axial internal clearance designation, making it suitable for applications where the load and speeds do not result in thermal expansion. This clearance provides latitude for self-realignment and compensates for static and dynamic alignment errors. This angular contact ball bearing is for use in commercial and industrial applications including pumps and compressors, automotive drives, gearboxes, and printing machines, among others.

Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.
