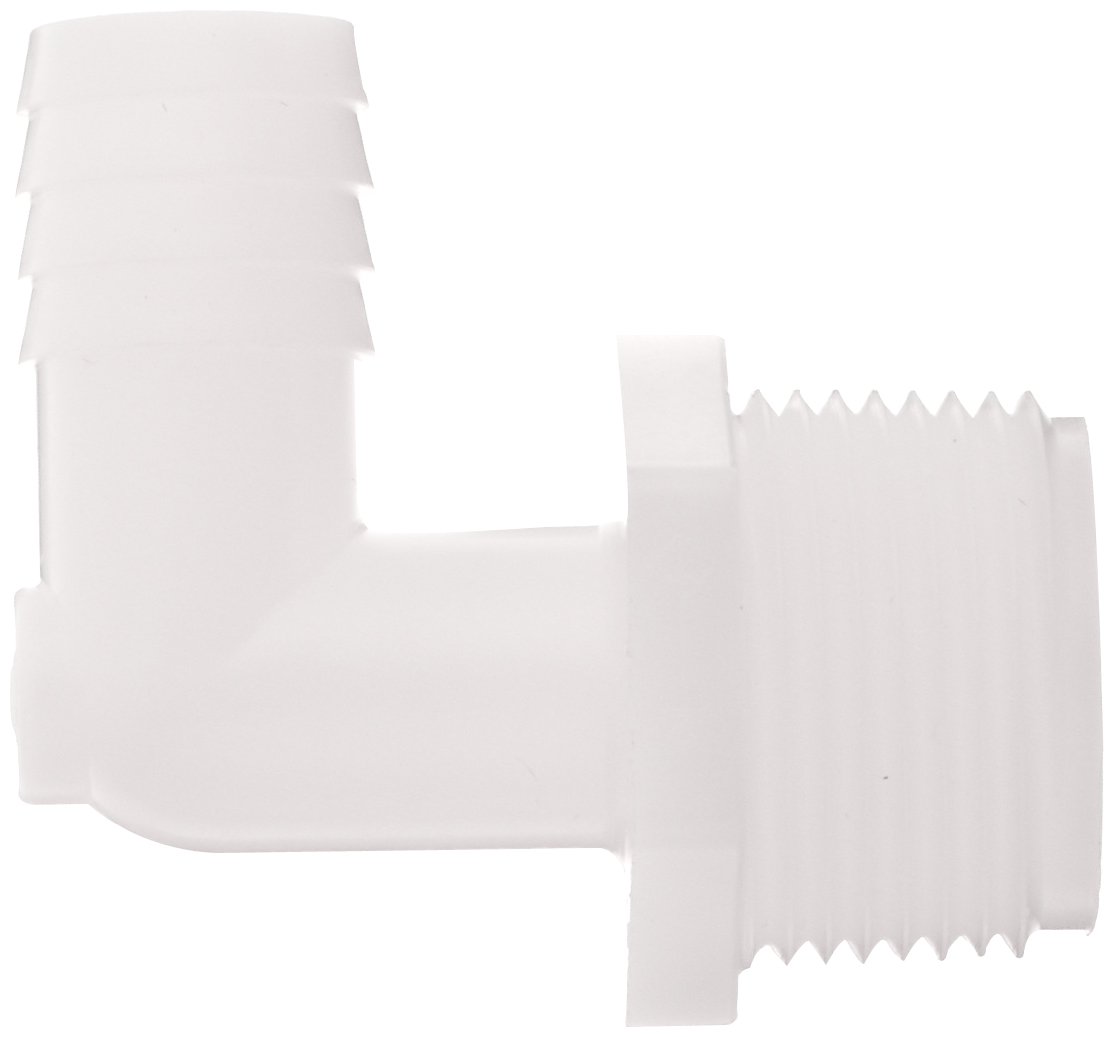

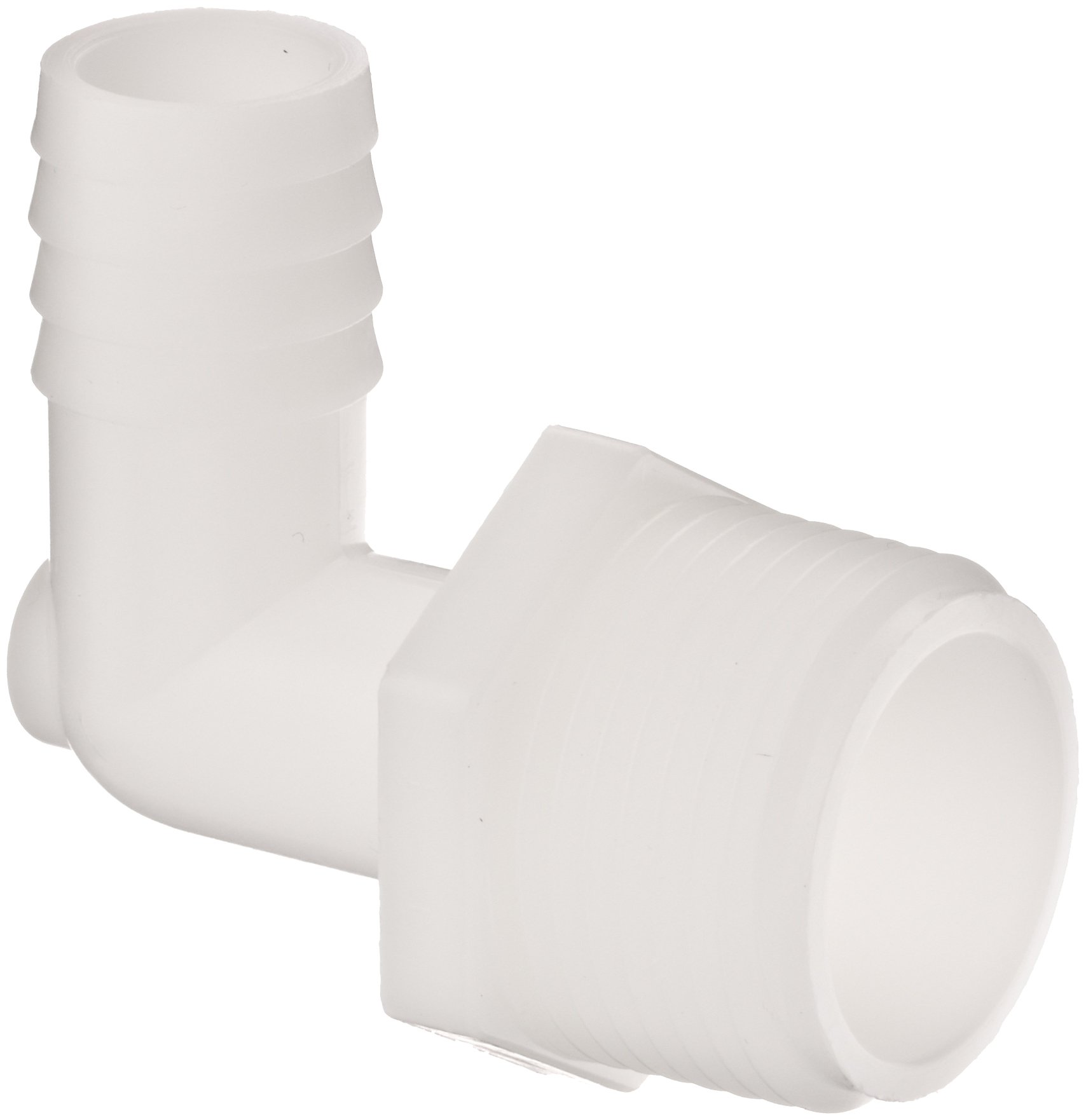

Thogus Polypropylene Tube Fitting, 90 Degree Elbow, White, NPT Male x Barbed

Be the first to review this item

Product Specifications
Item Shape
90 Degree Elbow
Material Type
Polypropylene (PP)
Color Name
White
Brand Name
Thogus
Upper Temperature Range
150  Degrees Fahrenheit
Specification Met
FDA
Maximum Pressure
150  PSI
Connector Type
NPT Male x Hose ID
Style Name
Barbed
UNSPSC Code
40141734
LowerTemperature Range
-20  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Sep 25? Order in-stock items in the next 20 hrs 56 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-6 of 6
Size name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-6 of 6
1" NPT Male x 3/4" Hose ID B008TT3600 yes $3.03 Buy Options
1/8" NPT Male x 5/16" Hose ID B008TT3178 yes $2.36 Buy Options
3/4" NPT Male x 1" Hose ID B008TT35CE yes $3.12 Buy Options
3/4" NPT Male x 1/2" Hose ID B008TT34M0 yes $8.89 Buy Options
3/4" NPT Male x 1/4" Hose ID B008TT320O yes $2.58 Buy Options
3/4" NPT Male x 3/8" Hose ID B008TT33NA yes $8.89 Buy Options

Key Features

  • 90-degree elbow for connecting hose to threaded pipe at an angle
  • Fitting connects to hose on one end and has an NPT male connector on the other
  • Polypropylene for resistance to chemicals, abrasion and corrosion
  • Barbed fitting creates a tight seal on flexible and semi-rigid hose when used with a hose clamp or crimp sleeve or ferrule (sold separately)
  • Meets standards set by NSF International and RoHS for health and safety

Product Description

This Thogus hose fitting is made of natural white polypropylene (PP) plastic and has a 90-degree elbow shape for connecting hose to threaded pipe conforming to the National Pipe Thread (NPT) standard at an angle. This elbow has a barbed fitting on one end to create a tight seal on flexible and semi-rigid hose when used with a hose clamp or crimp sleeve or ferrule (sold separately), and a male NPT connector on the other end connects to threaded pipe. PP resists most chemicals, and is resistant to abrasion and corrosion. The fitting meets standards set by NSF International Consumer Products Division for health and safety, and complies with Restriction of Hazardous Substances (RoHS) international directives for hazardous materials.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Thogus manufactures injection molded plastic tube and hose fittings. The company, founded in 1950 and headquartered in Avon Lake, OH, meets International Organization for Standardization (ISO) standard 9001:2008.
