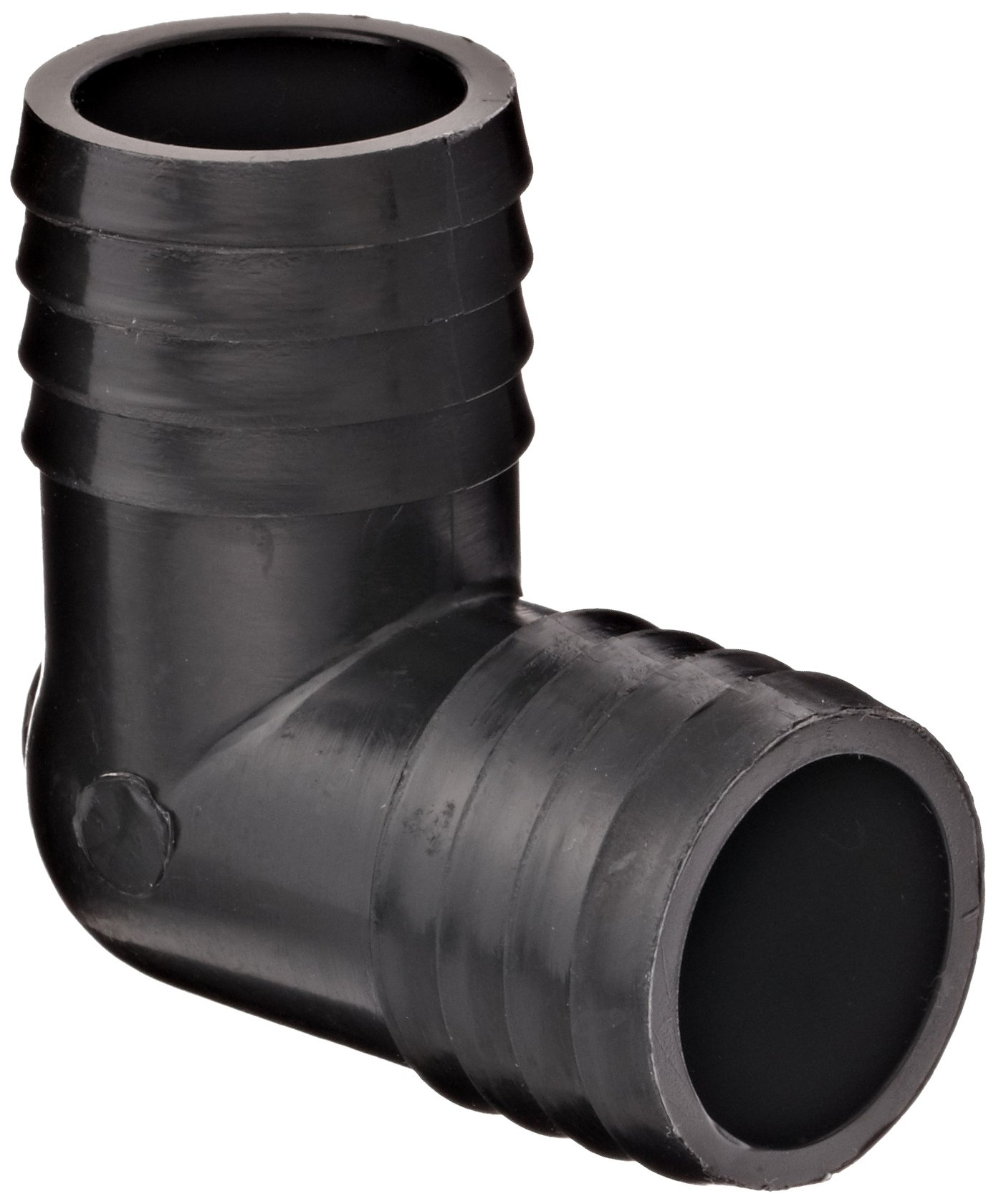

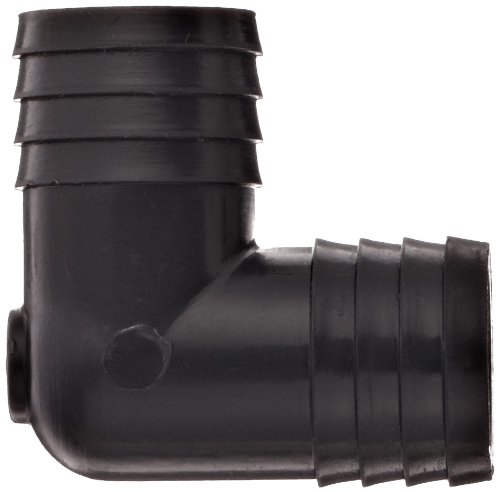

Thogus Polypropylene Tube Fitting, 90 Degree Elbow, Black, Barbed

Be the first to review this item

Product Specifications
Item Shape
90 Degree Elbow
Material Type
Polypropylene (PP)
Color Name
White
Brand Name
Thogus
Upper Temperature Range
150  Degrees Fahrenheit
Specification Met
FDA
Maximum Pressure
150  PSI
Connector Type
Hose ID
Style Name
Barbed
UNSPSC Code
40141734
LowerTemperature Range
-20  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Oct 28? Order in-stock items in the next 1 day 19 hrs 14 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-9 of 9
Size name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-9 of 9
1" B008TT1ZXK yes $10.00 Buy Options
1/2" B008TT1XP0 yes $8.78 Buy Options
1/2" x 1/4" B008TT1VT8 yes $2.54 Buy Options
1/2" x 3/8" B008TT1WHE yes $5.63 Buy Options
1/4" B008TT1UIU yes $6.77 Buy Options
3/16" B008TT1TRC yes $2.46 Buy Options
3/4" B008TT1Z5S yes $5.71 Buy Options
3/8" B008TT1V52 yes $6.58 Buy Options
5/8" B008TT1YBS yes $9.20 Buy Options

Key Features

  • 90-degree elbow for connecting hose at an angle
  • Fitting connects to hose on both ends
  • Polypropylene for resistance to chemicals, abrasion and corrosion
  • Barbed fitting creates a tight seal on flexible and semi-rigid hose when used with a hose clamp or crimp sleeve or ferrule (sold separately)
  • Meets standards set by NSF International and RoHS for health and safety

Product Description

This Thogus hose fitting is made of black polypropylene (PP) plastic and has a 90-degree elbow shape for connecting hose at an angle. This elbow has barbed fittings on each end to create a tight seal on flexible and semi-rigid hose when used with a hose clamp or crimp sleeve or ferrule (sold separately). The black fitting blocks exposure of fluids to light. PP resists most chemicals, and is resistant to abrasion and corrosion. The fitting meets standards set by NSF International Consumer Products Division for health and safety, and complies with Restriction of Hazardous Substances (RoHS) international directives for hazardous materials.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Thogus manufactures injection molded plastic tube and hose fittings. The company, founded in 1950 and headquartered in Avon Lake, OH, meets International Organization for Standardization (ISO) standard 9001:2008.
