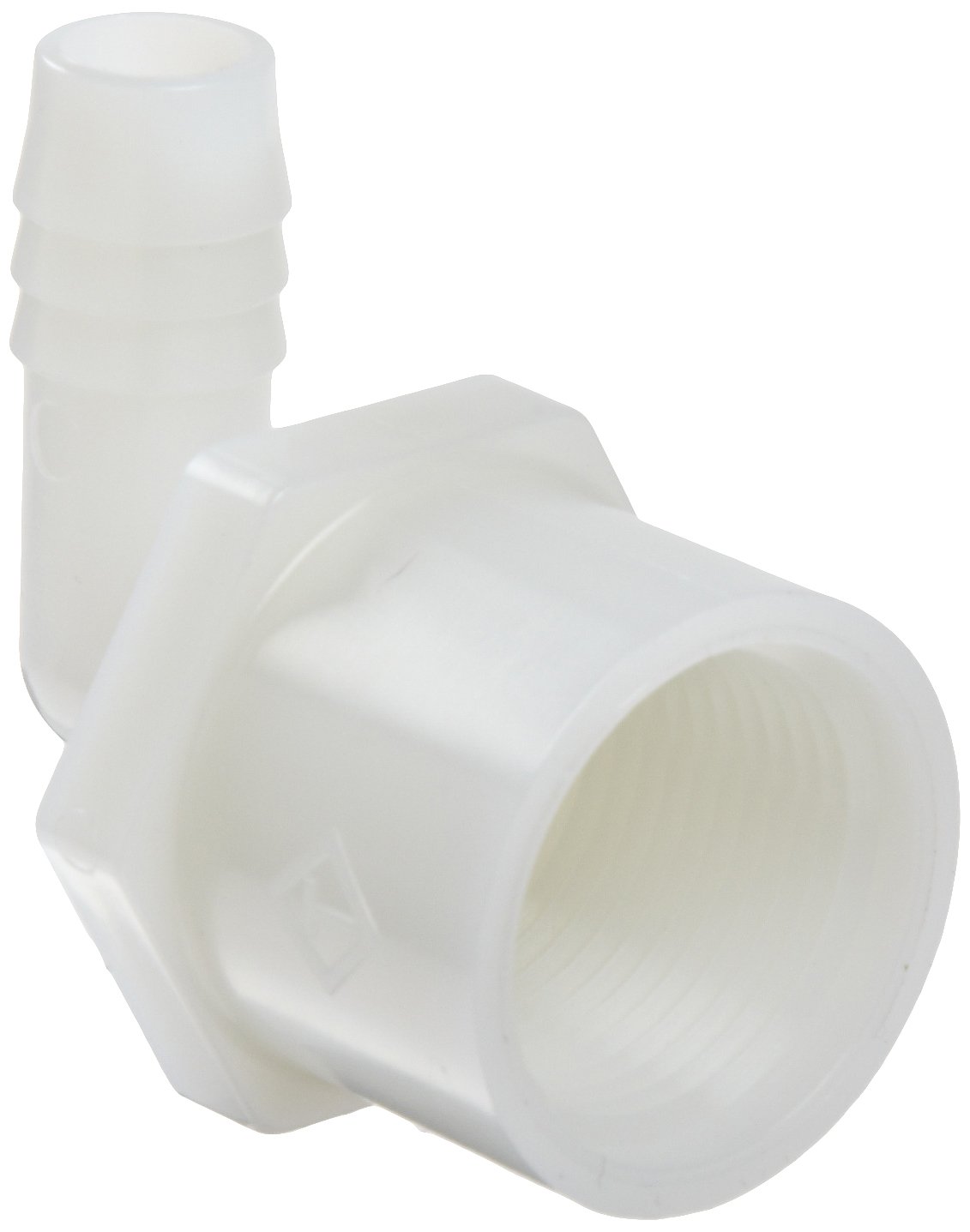

Thogus Nylon Tube Fitting, 90 Degree Elbow, White, NPT Female x Barbed

Be the first to review this item

Product Specifications
Item Shape
90 Degree Elbow
Material Type
Nylon
Color Name
White
Brand Name
Thogus
Upper Temperature Range
275  Degrees Fahrenheit
Specification Met
NSF 51, NSF 61
Maximum Pressure
150  PSI
Connector Type
NPT Female x Hose ID
Style Name
Barbed
UNSPSC Code
40141734
LowerTemperature Range
-50  Degrees Fahrenheit

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Oct 22? Order in-stock items in the next 14 hrs 9 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-13 of 13
Size name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-13 of 13
1/2" NPT Female x 1/2" Hose ID B008TSPZFA yes $12.42 Buy Options
1/2" NPT Female x 1/4" Hose ID B008TSPXES yes $10.92 Buy Options
1/2" NPT Female x 3/8" Hose ID B008TSPYDS yes $10.29 Buy Options
1/4" NPT Female x 1/2" Hose ID B008TSQ3BA yes $10.26 Buy Options
1/4" NPT Female x 1/4" Hose ID B008TSPREE yes $10.48 Buy Options
1/4" NPT Female x 3/8" Hose ID B008TSPSBG yes $10.44 Buy Options
1/8" NPT Female x 1/4" Hose ID B008TSQ1BM yes $9.72 Buy Options
1/8" NPT Female x 3/8" Hose ID B008TSQ25M yes $10.13 Buy Options
3/4" NPT Female x 1/2" Hose ID B008TSQ5VS yes $11.57 Buy Options
3/4" NPT Female x 3/4" Hose ID B008TSQ0C2 yes $11.24 Buy Options
3/8" NPT Female x 1/2" Hose ID B008TSQ4LY yes $4.68 Buy Options
3/8" NPT Female x 1/4" Hose ID B008TSPTNI yes $10.17 Buy Options
3/8" NPT Female x 3/8" Hose ID B008TSPUVE Usually ships in 2 to 5 weeks $10.97 Buy Options

Key Features

  • 90-degree elbow for connecting hose to threaded pipe at an angle
  • Fitting connects to hose on one end and has an NPT female connector on the other
  • Nylon for strength, flexibility, and resistance to abrasion, crushing, and cracking
  • Barbed fitting creates a tight seal on flexible and semi-rigid hose when used with a hose clamp or crimp sleeve or ferrule (sold separately)
  • Meets standards set by NSF International and RoHS for health and safety

Product Description

This Thogus hose fitting is made of white nylon and has a 90-degree elbow shape for connecting hose to threaded pipe conforming to the National Pipe Thread (NPT) standard at an angle. This elbow has a barbed fitting on one end to create a tight seal on flexible and semi-rigid hose when used with a hose clamp or crimp sleeve or ferrule (sold separately), and a female NPT connector on the other end connects to threaded pipe. Nylon is used for strength, flexibility, and resistance to abrasion, crushing, and cracking. The fitting meets standards set by NSF International Consumer Products Division for health and safety, and complies with Restriction of Hazardous Substances (RoHS) international directives for hazardous materials.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Thogus manufactures injection molded plastic tube and hose fittings. The company, founded in 1950 and headquartered in Avon Lake, OH, meets International Organization for Standardization (ISO) standard 9001:2008.
