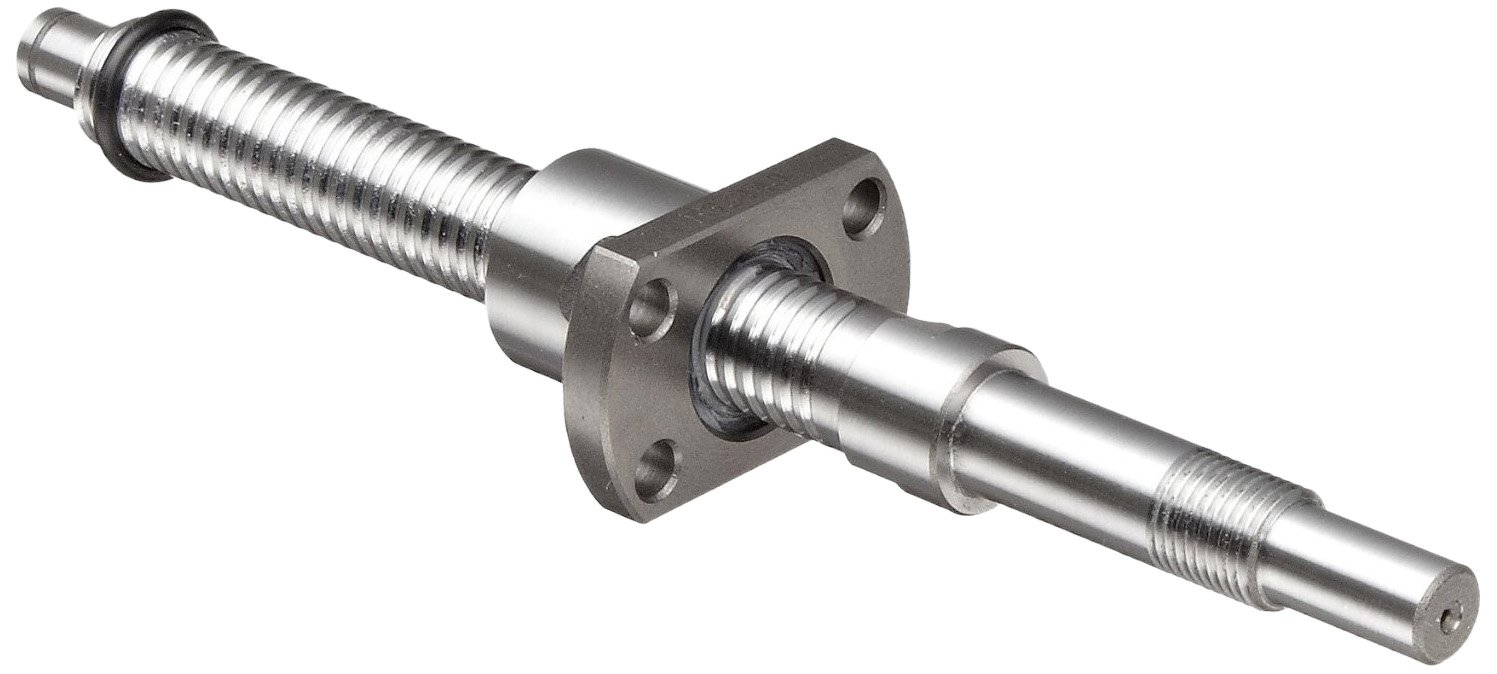

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

THK Steel Precision Ball Screw Assembly, Screw Shaft: 40mm Stroke

Be the first to review this item

Product Specifications
Brand Name
THK
Lead
1mm

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Apr 18? Order in-stock items in the next 10 hrs 20 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-3 of 3
Length ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-3 of 3
115 mm B00137KQT4 1 $570.95 Buy Options
100 mm B00137GIS2 1 $574.69 Buy Options
145 mm B00137KQD0 1 $616.36 Buy Options

Key Features

  • Screw Shaft: 97mm Length x 4mm Diameter^Nut: 13mm Length x 9mm Diameter x 19mm Flange Diameter^Static Load Capacity: 94 Pound-Force^Finished Shaft Ends
  • 1
  • 4mm
  • 97mm

Product Description

THK Precision Ball Screw Model BNK has a standardized screw shaft and a ball screw nut to meet the space-saving requirement. The ends of the screw shaft are standardized to fit the corresponding support unit. The shaft support method with models BNK 0401 and 0601 is "fixed-free," while other models use the "fixed-supported" method with the shaft directly coupled with the motor. Screw shafts and nuts are compactly designed. When a support unit and a nut bracket are combined with a Ball Screw, the assembly can be mounted on your machine as it is. Thus, a high-accuracy feed mechanism can easily be achieved. With the Ball Screw, balls roll between the screw shaft and the nut to achieve high efficiency. Its required driving torque is only one third of the conventional sliding screw. It is capable of an accurate micro feeding.
