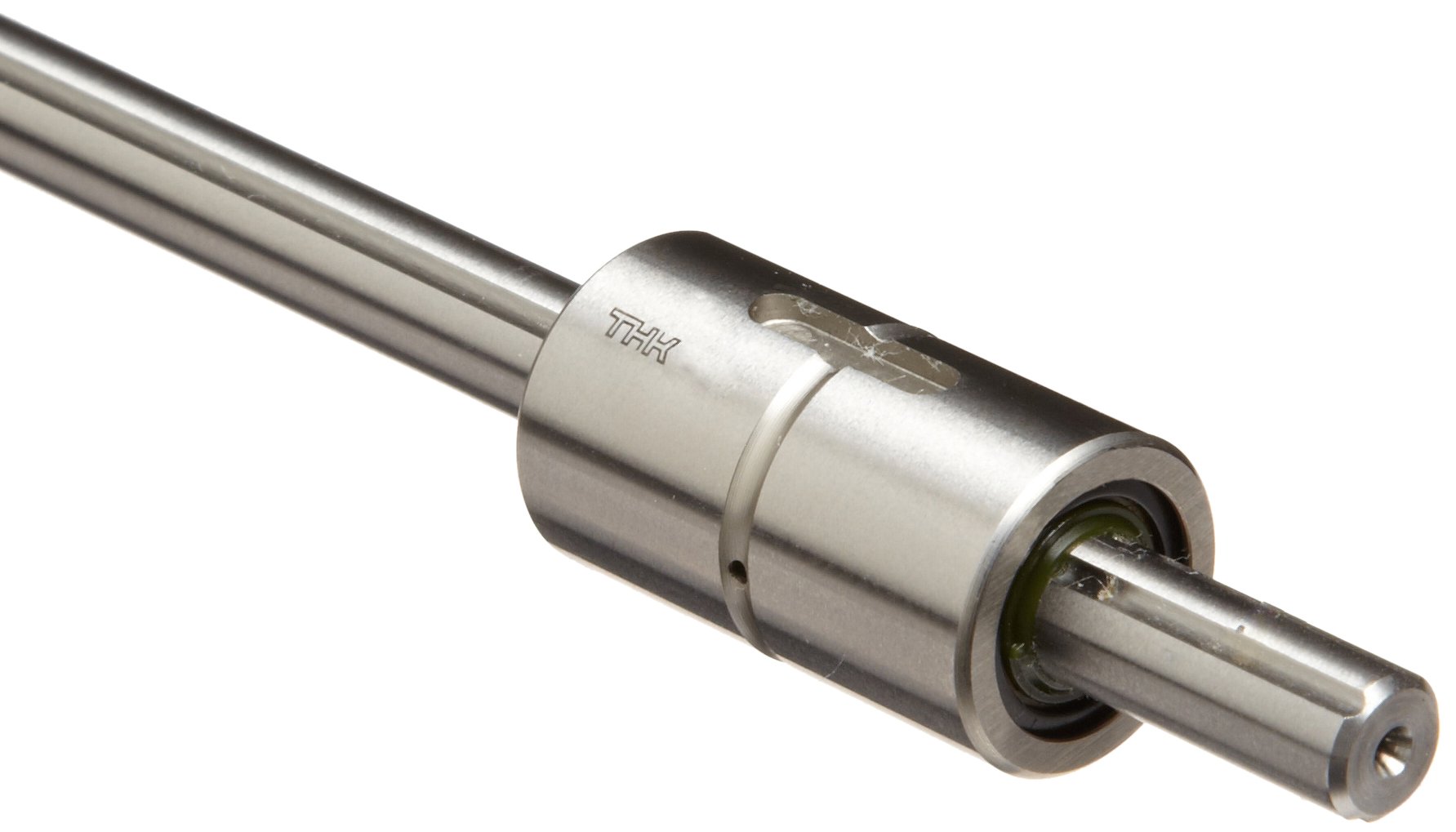

THK Steel Ball Spline Model LT, Single Nut Cylindrical Medium Torque, Shaft: 6mm Diameter x 300mm Length, Nut: 14mm Diameter x 25mm Length, Load Capacity: 486 lb

Be the first to review this item


Specifications for this item
Number of Items
Material Type
Stainless Steel
Part Number
Outside Diameter
6  millimeters
Brand Name
Overall Length
300  millimeters
System of Measurement

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 28? Order in-stock items in the next 1 day 17 hrs 19 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • With Model LT or Medium Torque Type Ball Spline, the spline shaft has two to three crests on the circumference, and along both sides of each crest, two rows of balls are arranged to hold the crest so that a reasonable preload is applied.
  • This model has a large load capacity in the radial and torque directions. Since the contact angle is large and an appropriate preload is given, high rigidity against torque is achieved.
  • The rows of balls are held in a special resin retainer incorporated in the spline nut so that they smoothly roll and circulate. With this design, balls will not fall even in the nut is removed from the spline shaft.

Package Details

Shipping Weight: 0.19 pounds
Package Size: 14 x 1 x 1 inches

Product Description

The Ball Spline is an innovative linear motion system in which balls accommodated in the spline nut transmit torque while linearly moving on precision-ground raceways on the spline shaft. Unlike the conventional structure, a single spline nut can provide a preload with THK's Ball Spline. As a result, the Ball Spline demonstrates high performance in environments subject to vibrations and impact loads, locations where a high level of positioning accuracy is required or areas where high-speed kinetic performance is required. The Ball Spline provides a high degree of safety and long service life.
