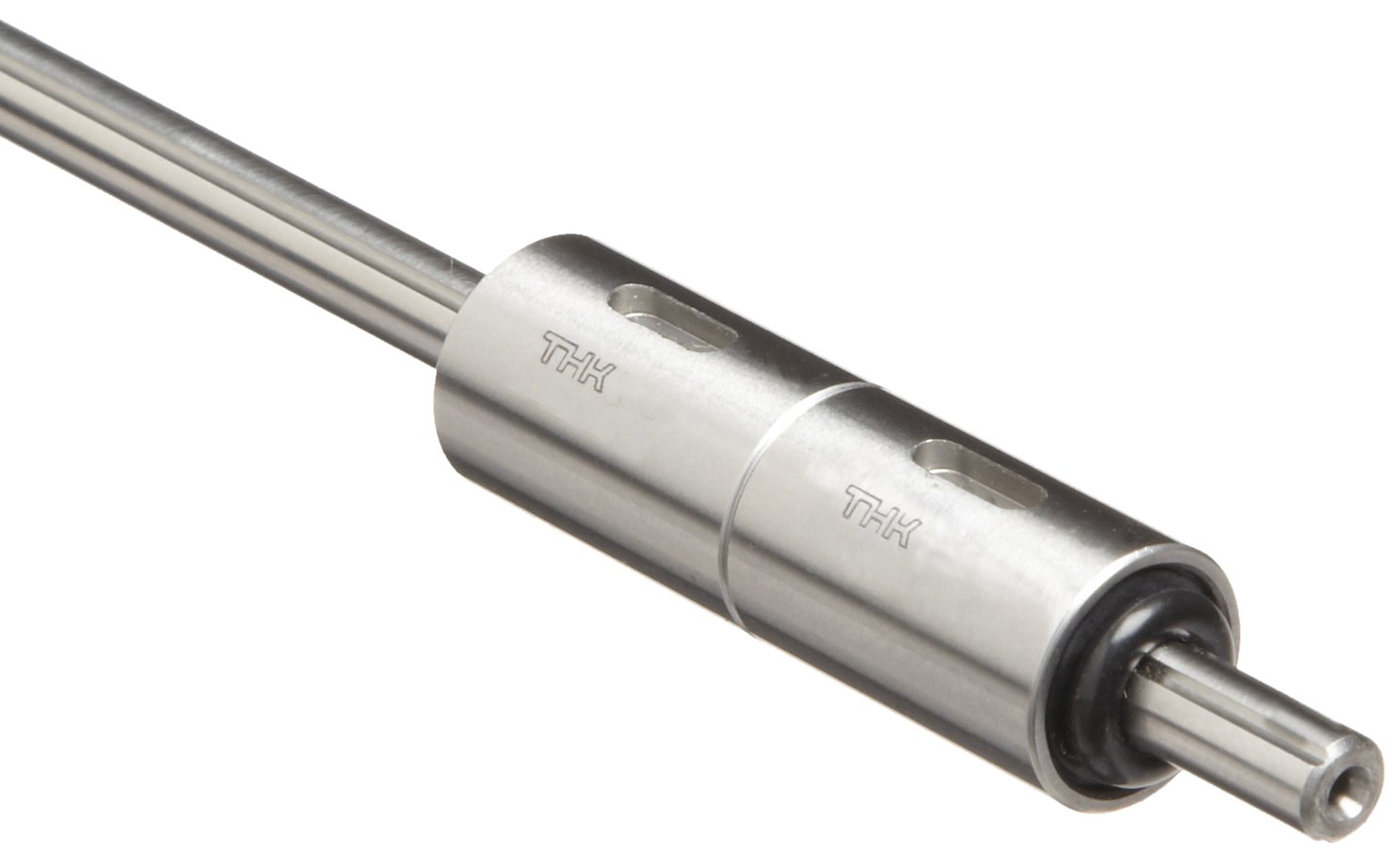

THK Steel Ball Spline Model LT, Double Nut Cylindrical Medium Torque, Shaft: 4mm Diameter x 120mm Length, Nut: 10mm Diameter x 16mm Lenght, Load Capacity: 137 lb
Be the first to review this item
ASIN B00137MQC4
Specifications for this item
- Brand Name
- THK
- Material Type
- Alloy Steel
- Number of Items
- 1
- Part Number
- 2LT4UU+120L
- System of Measurement
- Metric
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Wednesday, May 29? Order in-stock items in the next 3 days 4 hours 3 minutes and choose One-Day Shipping at checkout.
Key Features
- With Model LT or Medium Torque Type Ball Spline, the spline shaft has two to three crests on the circumference, and along both sides of each crest, two rows of balls are arranged to hold the crest so that a reasonable preload is applied.
- This model has a large load capacity in the radial and torque directions. Since the contact angle is large and an appropriate preload is given, high rigidity against torque is achieved.
Package Details
Shipping Weight:
0.06 pounds
Package Size:
8 x 4 x 1 inches
Product Description
The Ball Spline is an innovative linear motion system in which balls accommodated in the spline nut transmit torque while linearly moving on precision-ground raceways on the spline shaft. Unlike the conventional structure, a single spline nut can provide a preload with THK's Ball Spline. As a result, the Ball Spline demonstrates high performance in environments subject to vibrations and impact loads, locations where a high level of positioning accuracy is required or areas where high-speed kinetic performance is required. The Ball Spline provides a high degree of safety and long service life.
