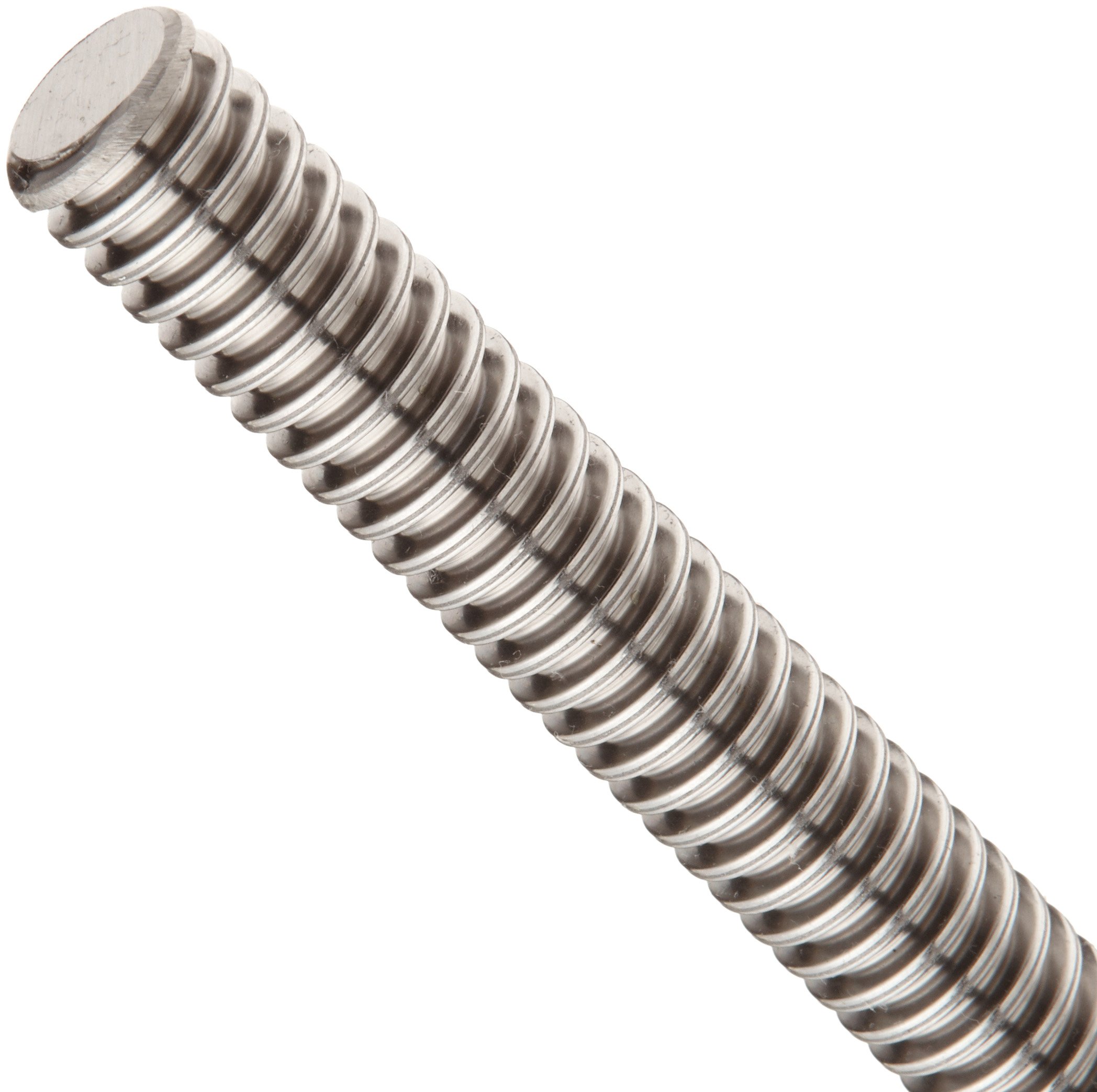

THK Lead Screw Shaft Model CS16, 16mm Outer Diameter x 500mm Length, 3mm Lead

Be the first to review this item


Specifications for this item
Number of Items
Material Type
Part Number
Brand Name
System of Measurement

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Apr 28? Order in-stock items in the next 5 hrs 3 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Use with THK Lead Screw Nut Models DCM16 or DC16
  • Dynamic Permissible Thrust: 1500 Pound-Force if DCM16 Lead Screw Nut is used or 1102 Pound-Force if DC16 Lead Screw Nut is used

Package Details

Shipping Weight: 1.55 pounds
Package Size: 22 x 2 x 0.5 inches

Product Description

THK Lead Screw Rolled Shafts are highly wear resistant and achieve significantly smooth motion when used in combination with lead screw nuts. The shaft teeth are formed by cold gear rolling, and the surface of the tooth is hardened to over 250 HV and is mirror-finished. Inside the teeth of the rolled shaft, a fiber flow occurs along the contour of the tooth surface, making the structure around the teeth roots dense and the fatigue strength is increased. The rolled shafts with the standardized lengths are available for the Lead Screw Nut.
