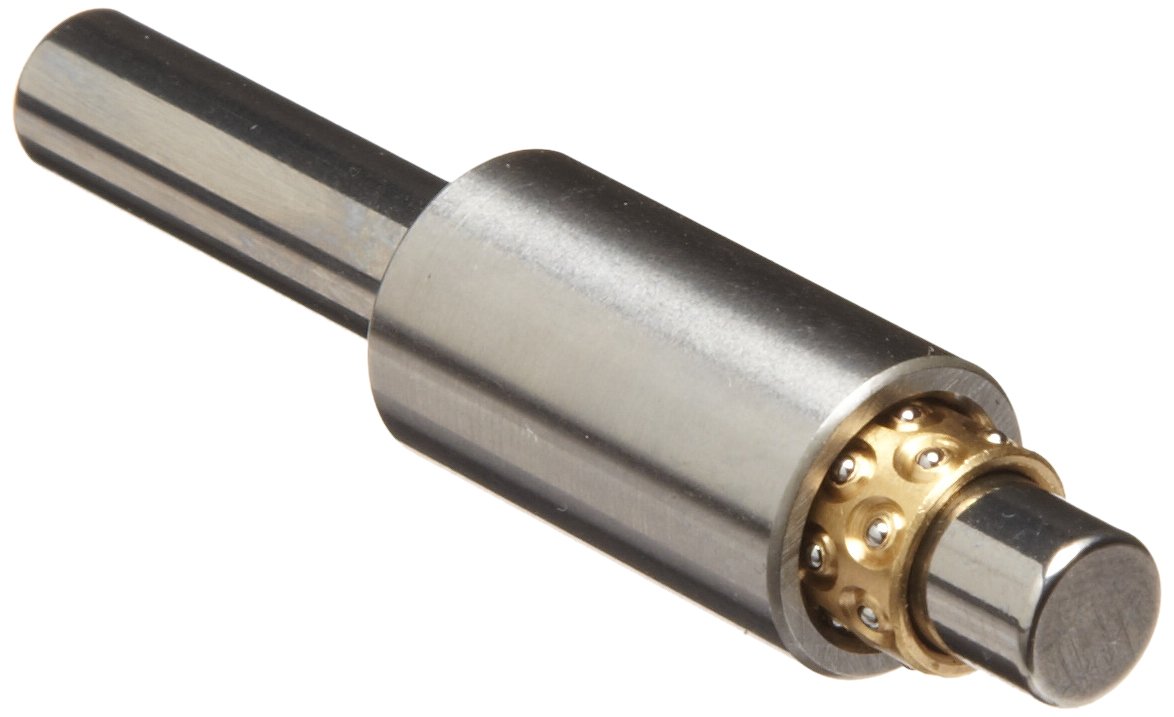

THK Miniature Stroke Model MST6, Shaft: 6mm Diameter x 50mm Length, Nut: 11mm Diameter x 20mm Length, 10mm Ball Cage Length
Be the first to review this item
ASIN B00137MS6I
Specifications for this item
- Brand Name
- THK
- Material Type
- Steel
- Number of Items
- 1
- Part Number
- MST6+102050
- System of Measurement
- Metric
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Thursday, June 20? Order in-stock items in the next 19 hours 58 minutes and choose One-Day Shipping at checkout.
Package Details
Shipping Weight:
0.05 pounds
Package Size:
4 x 3 x 0.25 inches
Product Description
THK Miniature Stroke Model MST consists of an ST shaft, ball cage and nut. The sectional shape is small, the clearance is minimal and the motion is extremely light and smooth. Accordingly, model MST can be used in a variety of small, precision measuring equipment such as optic measuring instrument's spindle, pen plotter, OA equipment, computer terminals, automatic scale, digital length measuring machine and solenoid valve. Precision steel balls compliant with JIS B 1501 are incorporated in a copper alloy ball cage to ensure high accuracy. The ball cage serves to prevent the balls from falling off with a unique ball-retaining design. The nut of the ST shaft uses a selected material, and is heat-treated and ground. In addition, the raceways are finished with ultra fine finish. The rows of balls are densely arranged in the ball cage, and the balls are placed so that the ball raceways do not overlap with each other. It enables this model to be used over a long period without wear and to demonstrate high durability. Use of a combination of balls with a 1 mm diameter and a thin nut allows a small sectional shape and space-saving design. Since the balls are in point-contact with the raceways, rolling loss is minimal and rolling motion with low-friction is achieved.
