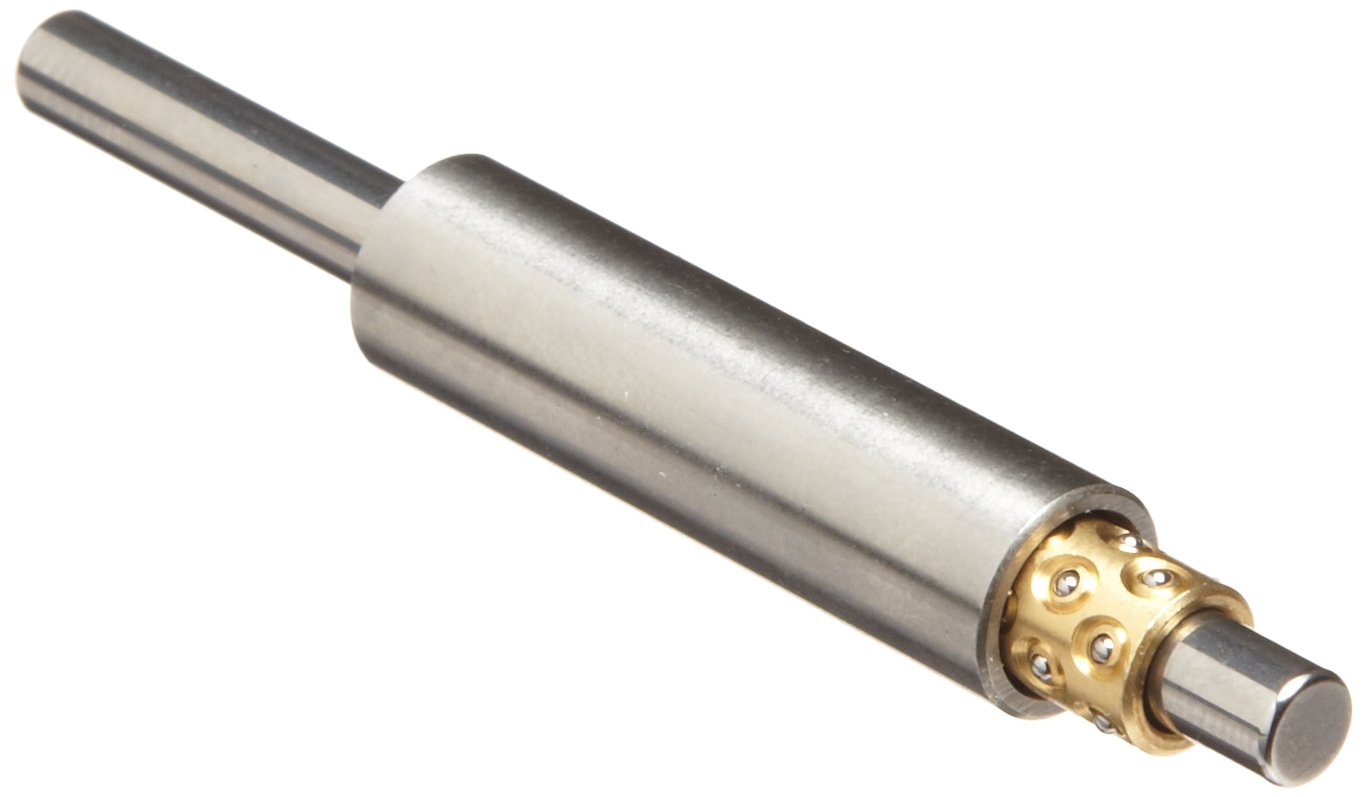

THK Miniature Stroke Model MST4, Shaft: 4mm Diameter x 60mm Length, Nut: 8mm Diameter x 30mm Length, 20mm Ball Cage Length

Be the first to review this item

ASIN B00137GJS6

Specifications for this item
Number of Items
1
Material Type
Steel
Part Number
MST4+203060
Outside Diameter
4  millimeters
Brand Name
THK
UNSPSC Code
31170000
Overall Length
60  millimeters
System of Measurement
Metric

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Package Details

Shipping Weight: 0.05 pounds
Package Size: 5.5 x 4 x 0.1 inches

Product Description

THK Miniature Stroke Model MST consists of an ST shaft, ball cage and nut. The sectional shape is small, the clearance is minimal and the motion is extremely light and smooth. Accordingly, model MST can be used in a variety of small, precision measuring equipment such as optic measuring instrument's spindle, pen plotter, OA equipment, computer terminals, automatic scale, digital length measuring machine and solenoid valve. Precision steel balls compliant with JIS B 1501 are incorporated in a copper alloy ball cage to ensure high accuracy. The ball cage serves to prevent the balls from falling off with a unique ball-retaining design. The nut of the ST shaft uses a selected material, and is heat-treated and ground. In addition, the raceways are finished with ultra fine finish. The rows of balls are densely arranged in the ball cage, and the balls are placed so that the ball raceways do not overlap with each other. It enables this model to be used over a long period without wear and to demonstrate high durability. Use of a combination of balls with a 1 mm diameter and a thin nut allows a small sectional shape and space-saving design. Since the balls are in point-contact with the raceways, rolling loss is minimal and rolling motion with low-friction is achieved.
