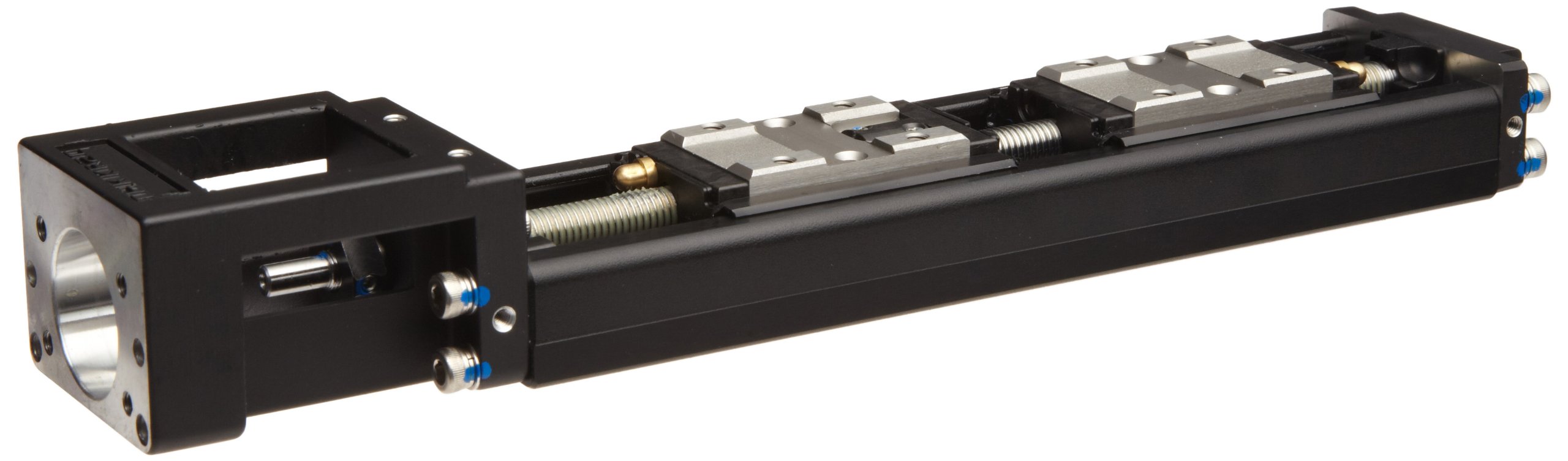

THK KR Linear Motion Guide Actuator KR2001B+150LP0-0000, 2x Blk, 1mm Lead, 91.5mm Stroke, 6mm OD, 209mm L

Be the first to review this item


Specifications for this item
Number of Items
Material Type
Stainless Steel
Part Number
Brand Name
System of Measurement

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List

You can add a description later

Key Features

  • Space saving
  • High rigidity
  • High accuracy
  • 4-way equal load
  • Sealed on ends and sides

Package Details

Shipping Weight: 1.46 pounds
Package Size: 9 x 3 x 1.5 inches

Product Description

THK LM Guide Actuator Model KR has an integral-structure nut block consisting of a highly rigid LM rail with U-shaped cross section, LM Guide units on both side faces and a ball screw unit in the center. This product achieves a highly rigid and highly accurate actuator in a minimal space. Each train of balls is arranged at a contact angle of 45 degrees so that the rated load on the nut block is uniform in the four directions (radial, reverse radial and lateral directions). As a result, Model KR can be used in any mounting orientation. The linear guide section consists of four rows of circular-arc grooves that enable balls to move smoothly even under a preload and a highly rigid guide with no clearance is achieved. Additionally, variation in frictional resistance caused by load fluctuation is minimized, allowing the system to follow a highly accurate feed. KR1501 products are Stainless Steel; the remaining KR products are hardened steel. Model KR LM Guide Actuators are available with and without covers.
