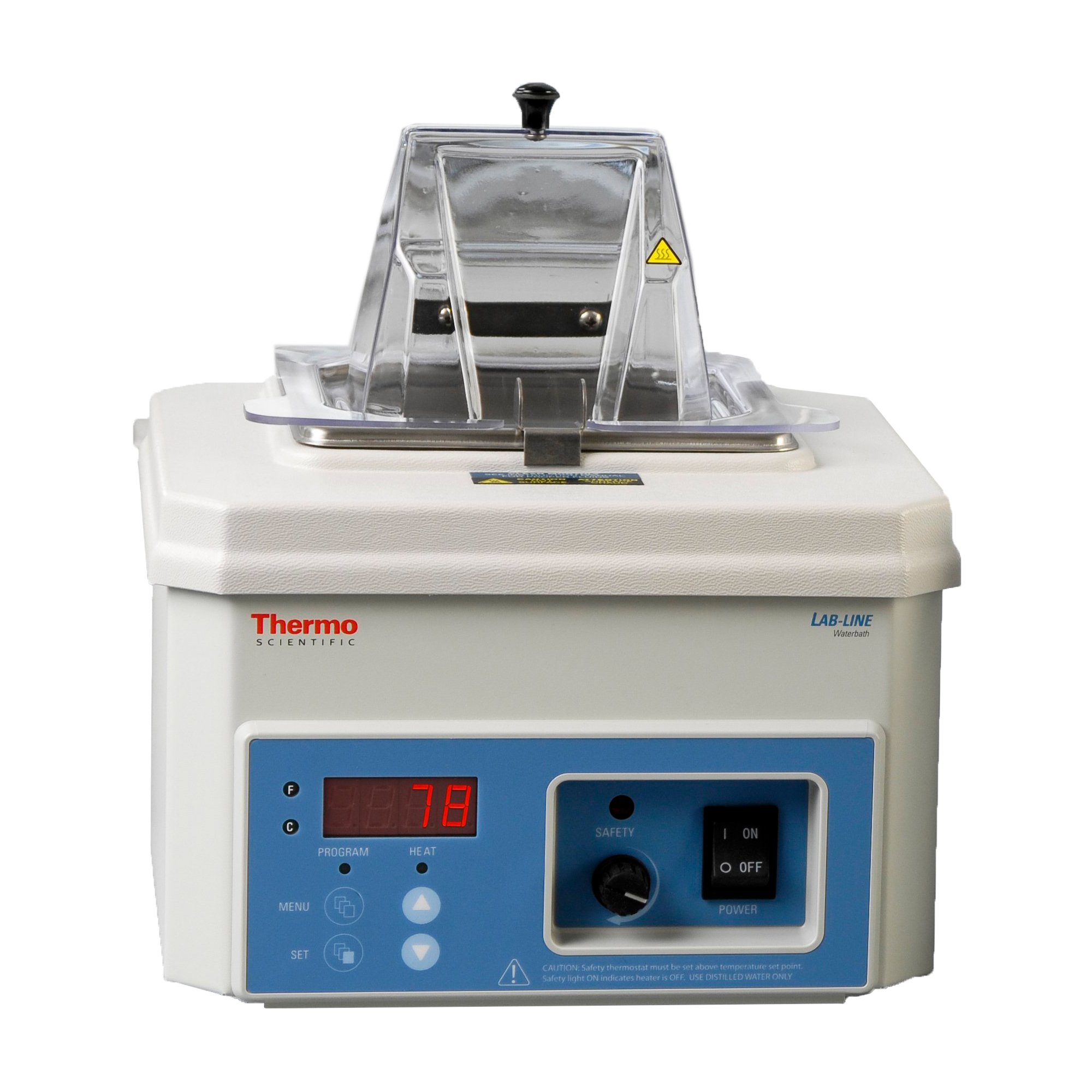

Thermo Scientific ELED WB1140A-1 Lindberg/Blue M General-Purpose Digital Circulating Water Bath, 100.7L Capacity, 120V/60Hz, 100 Degree C

Be the first to review this item

ASIN B005SUZOGM

Specifications for this item
Overall Height
14-63/64  inches
Overall Width
20  inches
Part Number
WB1140A-1
Operating Frequency
60  Hz
Inside Width
18  inches
Brand Name
Thermo Scientific
Capacity
100.7  liters
Temperature Uniformity
+/- 0.1  Degrees Celsius
Number of Items
1
Wattage
2490  Watts
Inside Length
36  inches
Inside Height
9-1/2  inches
Controller Type
Microprocessor
UNSPSC Code
41103715
Display
Digital
Overall Length
46  inches
LowerTemperature Range
5  Degrees Celsius

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Microprocessor with RTD probe provides simple, accurate and repeatable temperature control while optimizing control parameters during operation
  • Digital temperature display simultaneously reads setpoint and water temperature
  • High-strength cabinet construction with 304 stainless-steel interior tanks has a capacity of 100.7L (26.6 gal); requires 120V
  • Single-stage centrifugal pump with independent supply/return ports for maximum circulation
  • Warranty: One year,parts; 90 days labor

Package Details

Shipping Weight: 95 pounds
Package Size: 33 x 32 x 25 inches

Product Description

This Thermo Scientific ELED Lindberg/Blue M general-purpose circulating water bath has a capacity of 100.7L (26.6 gal). High-strength cabinet construction with 304 stainless-steel interior tanks withstand the most critical applications in demanding laboratory environments. A range of accessories are available to suit a variety of laboratory or process applications. Microprocessor with RTD probe provides simple, accurate and repeatable temperature control while optimizing control parameters during operation. Digital temperature display simultaneously reads setpoint and water temperature. Recessed control module protects against dirt and moisture. Has a single-stage centrifugal pump with independent supply/return ports for maximum circulation. Reversible stainless-steel rack allows for optional reduction of working depth by 2-Inch (5cm). Adjustable high-limit control prevents critical process overtemperature conditions at any point over the operating range, and protects the bath and load by interrupting heat and flashing a visual warning. Automatically resets when temperature returns to normal. Fixed overtemperature safety, factory set 105 Degree C, shuts off bath power, push–button manual reset. The integrated industrial-strength pump for internal circulation maintains precise temperature uniformity throughout the liquid medium. Rounded corners for better water circulation, improved uniformity and easier cleaning. Built-in drain with ON/OFF valve. Moisture-proof blanketed fiberglass insulation surrounds water chamber improves temperature stability and energy efficiency. 304 stainless-steel construction resists chemicals, simplifies cleaning. Long-life heating elements for quick response to controller. Nonskid rubber feet protect the lab bench. Attractive front panel bezel for easy cleaning. Includes reversible stainless steel rack, temperature probe, 10ft (3m) power cord with plug, and mounting clip for immersion glass thermometer (thermometer sold separately). Shipping Weight: 105lbs. Control: Microprocessor. Temperature Range: 5 to 100 Degree C. Temperature Control Resolution: 0.1 Degree C. Temperature Uniformity: ±0.1 Degree C. Display: Digital. Pump: Centrifugal. Capacity: 100.7L (26.6 gal). Heatup Time: 234min. Interior Dimensions: 36 x 18 x 9.5in. Exterior Dimensions: 46 x 20 x 14.5in. Power Rating: 2490 watts (8188 BTU/hr.). Voltage Rating:120V. Frequency: 50/60Hz. Current rating: 21A. Warranty: One Year, Parts, 90 Days, Labor. Certifications: UL, cUL Listed. Thermo Scientific ELED #: WB1140A-1. Thermo Scientific ELED - "Every Lab, Every Day".
