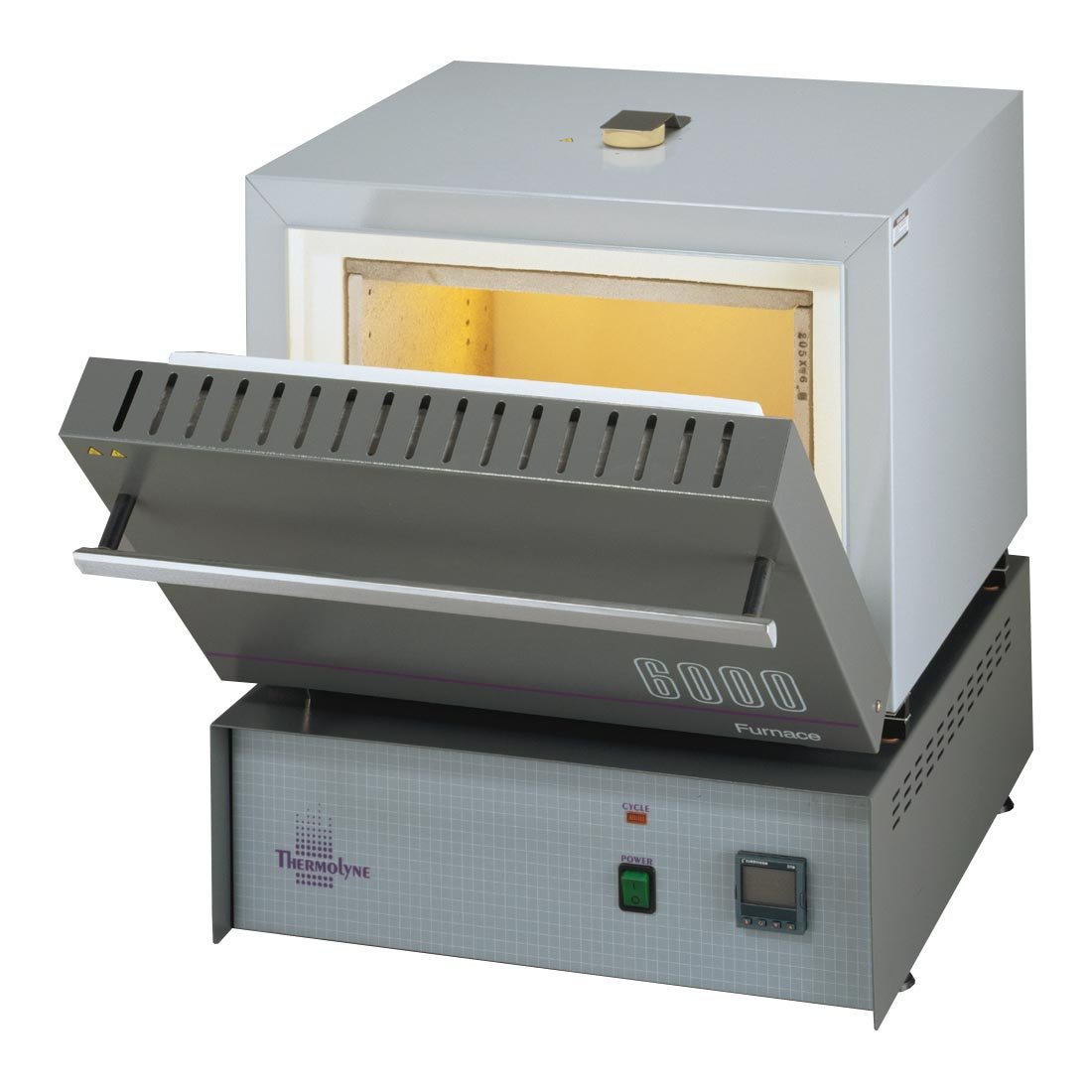

Thermo Scientific ELED F6018 Thermolyne Premium Large Muffle Furnace with (A1) Digital Single Setpoint Temperature Controller, 208V, 14 Liter Capacity, 100 to 1200 Degree C

Be the first to review this item

ASIN B005SUWFSW

Specifications for this item
Inside Depth
10  inches
Overall Height
21  inches
Overall Width
19-7/64  inches
Part Number
F6018
Operating Frequency
60  Hz
Inside Width
12-51/64  inches
Brand Name
Thermo Scientific
Capacity
14  liters
Number of Items
1
Heater Wattage
2325  Watts
Inside Height
6-51/64  inches
UNSPSC Code
41104609
Controller Type
Digital single setpoint (A1)
Overall Length
20-7/64  inches
LowerTemperature Range
100  Degrees Celsius

This item is no longer available

This item is NOT eligible for "Free Two-Day Shipping on orders over $50.00" promotion. (Details)

Want it delivered on Tue, Sep 23? Order in-stock items in the next 2 days 38 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Muffle furnace with 14 L (0.5 cubic foot) heating area capacity for general laboratory and industrial use
  • Temperature range of 100 to 1,200 degrees C for laboratory heating applications such as ashing, sintering, heat treating, quantitative analysis, and gravimetric analysis
  • A1 single-setpoint digital temperature controller for setting and holding a target temperature
  • Temperature stability of +/- 0.3 degrees C and temperature uniformity of +/- 2.2 degrees C at 1,000 degrees for even heating of furnace load
  • Rated at 208V for use in industrial settings

Package Details

Shipping Weight: 121 pounds
Package Size: 33 x 32 x 26 inches

Product Description

The Thermo Scientific F6018 Thermolyne Premium Large Muffle Furnace has an A1 single-setpoint digital controller, 14 L (0.5 cubic foot) heating area capacity, and a temperature range of 100 to 1,200 degrees C for general laboratory and industrial use. Four heating elements on the furnace top, bottom, and sides provide fast and even heating, with minimal temperature gradient. The furnace has a temperature stability of +/- 0.3 degrees C and a temperature uniformity of +/- 2.2 degrees C (at 1,000 degrees) for even heating of large furnace loads. Thermal-efficient ceramic insulation reduces heat loss and enhances energy efficiency. A 0.95 cm (0.38") diameter port at the rear of the furnace allows an independent temperature monitoring device to check internal temperature measurements. The furnace has an LED display that shows the chamber temperature as the unit heats, and the setpoint temperature can be checked. The front door drops down when opened, which vents heated air up and away from the operator, and allows the door to be used as a shelf when loading and unloading the furnace. An optional stainless-steel shelf (not included) can be used to double the furnace load. This furnace is designed for laboratory-heating and industrial applications such as ashing, sintering, heat treating, quantitative analysis, and gravimetric analysis.

The Thermo Scientific F6018 requires a single-phase 208V and 50/60 Hz electrical outlet and fuse (not included). The A1 single-setpoint digital controller sets a single temperature that the furnace will heat to and hold, until it is turned off. Safety features include a door safety switch, which turns off the heating elements when the door is open, and sensor break protection, which turns power off in the event of thermocouple failure. The furnace controller also includes a self-tuning feature. Self-tuning changes the control parameters to ensure temperature accuracy for a particular material type (load) and setpoint. A built-in vent port removes moisture and contaminants, which extends the life of the heating elements and the furnace. The furnace is Canadian Standards Association (CSA) approved. The power cord and plug are included.

Specifications

Capacity (heating area) 14 L (0.5 cubic foot)
Temperature range 100 to 1,200 Degrees C
Electrical requirements 208V (single-phase) 50/60 Hz
Power consumption 2,325 watts
Amperage 11.2 A
Weight 60.8 kg (134 lb.)
Interior dimensions 18 x 33 x 25 cm/6.8 x 12.8 x 10 inches (H x W x D)
Exterior dimensions 53.3 x 48.5 x 51 cm/21 x 19.1 x 20.1 inches (H x W x D)
Temperature stability +/- 0.3 degrees at 1,000 degrees C
Temperature uniformity +/- 2.2 degrees at 1,000 degrees C
Standards met CSA
Manufacturer's warranty 12 months

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Laboratory furnaces are used for heating applications that require a range of high temperatures. They heat to high temperatures evenly and maintain consistent temperatures, while providing an environment free of undesirable contaminants and moisture. Factors such as object size, controllers, temperature range, and shape determine the uses of particular furnaces. Most furnaces have digital controllers that determine how fast they heat up (ramp), how long the temperature can be held (dwell), and how fast they cool down. Safety systems are included in most furnaces to prevent overheating the contents, as well as the furnace itself. Laboratory furnaces are used in applications such as petroleum analysis, chemical analysis of certain compounds, and heat-treating small steel parts.

Thermo Fisher Scientific manufactures analytical instruments, laboratory equipment, consumables, and software under the Thermo Scientific and Fisher Scientific brands, among others. The company was founded in 2006 and is headquartered in Waltham, MA.

What’s in the Box?

  • F6018 Thermolyne Premium Large Muffle Furnace with Single Setpoint Digital Temperature Controller
  • Power cord
  • Plug
  • Instructions
