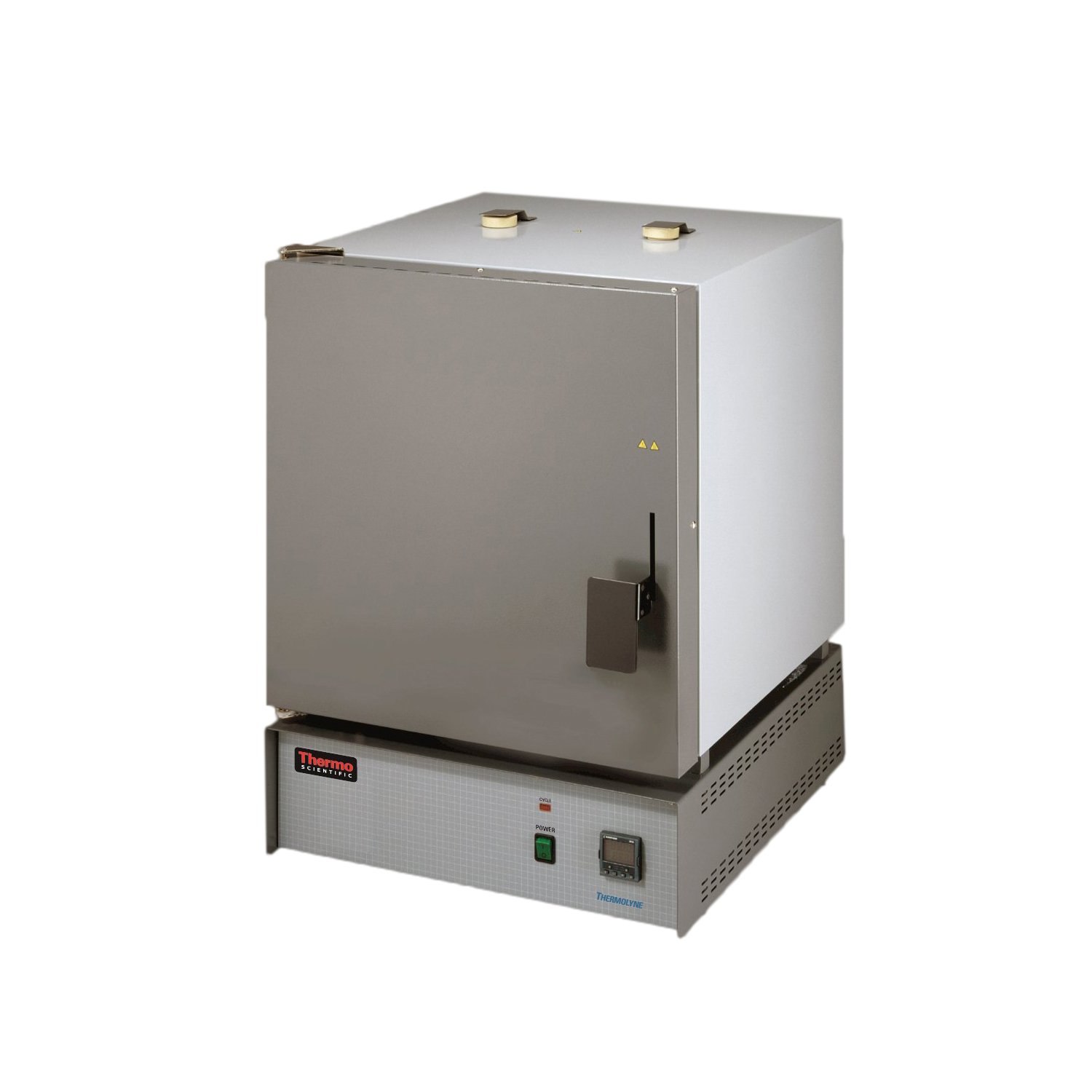

Thermo Scientific ELED F48010 Thermolyne Benchtop Muffle Furnace with (A1) Digital Single Setpoint Temperature Controller, 240V, 5.8 Liter Capacity, 100 to 1200 Degree C

Be the first to review this item

ASIN B005SUUCKU

Specifications for this item
Overall Height
19  inches
Inside Depth
10  inches
Overall Width
13-19/64  inches
Part Number
F48010
Operating Frequency
60  Hz
Inside Width
7  inches
Brand Name
Thermo Scientific
Capacity
5.8  liters
Number of Items
1
Heater Wattage
1000  Watts
Inside Height
5  inches
Controller Type
A1 - Digital Single Setpoint
UNSPSC Code
41104609
LowerTemperature Range
100  Degrees Celsius
Overall Length
19-1/2  inches

This item is no longer available

This item ships for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Oct 1? Order in-stock items in the next 5 hrs 10 mins and choose One-Day Shipping at checkout.

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Benchtop muffle furnace with 5.8 L (0.2 cubic foot) heating area capacity for general laboratory use
  • Temperature range of 100 to 1,200 degrees C for laboratory heating applications such as sintering, heat treating, quantitative analysis, and gravimetric analysis
  • A1 single-setpoint digital temperature controller for setting and holding a target temperature
  • Two open-coil heating elements on furnace sides for fast and even heating
  • Canadian Standards Association (CSA) approved

Package Details

Shipping Weight: 65 pounds
Package Size: 30 x 26 x 23 inches

Product Description

The Thermo Scientific F48010 Thermolyne Benchtop Muffle Furnace has an A1 single-setpoint digital controller, 5.8 L (0.2 cubic foot) heating area capacity, and a temperature range of 100 to 1,200 degrees C for general laboratory use. Two open-coil heating elements on the furnace sides provide fast and even heating, with minimal temperature gradient. Thermal-efficient ceramic insulation reduces heat loss and enhances energy efficiency. A 0.95 cm (0.38") diameter port at the rear of the furnace allows an independent temperature monitoring device to check internal temperature measurements. The furnace has an LED display that shows the chamber temperature as the unit heats, and the setpoint temperature can be checked. The front door drops down when opened, which vents heated air up and away from the operator, and allows the door to be used as a shelf when loading and unloading the furnace. The furnace comes with a ceramic shelf that can be used to double the furnace load capacity. This furnace is designed for laboratory-heating applications such as ashing, sintering, heat treating, quantitative analysis, and gravimetric analysis.

The Thermo Scientific F48010 requires a 240V and 50/60 Hz electrical outlet and fuse (not included). The A1 single-setpoint digital controller sets a single temperature that the furnace will heat to and hold, until it is turned off. Safety features include a door safety switch which turns off the heating elements when the door is opened, and sensor break protection, which turns power off in the event of thermocouple failure. The furnace controller also includes a self-tuning feature. Self-tuning changes the control parameters to ensure temperature accuracy for a particular material type (load) and setpoint. A built-in vent port removes moisture and contaminants, which extends the life of the heating elements and the furnace. The power cord and SH480X1 ceramic shelf are included.

Specifications

Capacity (heating area) 5.8 L (0.2 cubic foot)
Temperature range 100 to 1,200 Degrees C
Electrical requirements 240V 50/60 Hz
Power consumption 1,800 watts
Weight 27.2 kg (60 lb.)
Interior dimensions 13 x 18 x 25 cm/5 x 7 x 10 inches (H x W x D)
Exterior dimensions 49 x 34 x 50 cm/19 x 13.3 x 19.5 inches (H x W x D)
Standards met CSA
Manufacturer's warranty 12 months

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Laboratory furnaces are used for heating applications that require a range of high temperatures. They heat to high temperatures evenly and maintain consistent temperatures, while providing an environment free of undesirable contaminants and moisture. Factors such as object size, controllers, temperature range, and shape determine the uses of particular furnaces. Most furnaces have digital controllers that determine how fast they heat up (ramp), how long the temperature can be held (dwell), and how fast they cool down. Safety systems are included in most furnaces to prevent overheating the contents, as well as the furnace itself. Laboratory furnaces are used in applications such as petroleum analysis, chemical analysis of certain compounds, and heat-treating small steel parts.

Thermo Fisher Scientific manufactures analytical instruments, laboratory equipment, consumables, and software under the Thermo Scientific and Fisher Scientific brands, among others. The company was founded in 2006 and is headquartered in Waltham, MA.

What’s in the Box?

  • F48010 Thermolyne Benchtop Muffle Furnace with Single Setpoint Digital Temperature Controller
  • SH480X1 ceramic shelf
  • Power cord
  • Instructions
