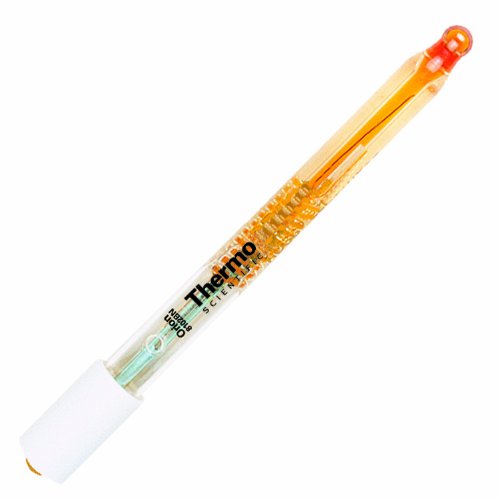

Thermo Scientific Orion 815600 ROSS Combination pH Electrode with BNC Connector, 0 to 14 pH, 3 M KCl

The Thermo Scientific Orion 815600 combination electrode measures pH with 0.01 precision in less than 30 seconds and has a double-junction reference for testing dirty water and solutions with heavy metals or organic compounds. This combination electrode contains both the measuring half-cell and the reference half-cell to minimize electrostatic interference and provide consistent readings. It has a durable, impact-resistant epoxy body and is refillable, allowing the filling solution composition to be adjusted to suit the sample requirements (electrolyte reference solution sold separately).

The electrode measures pH from 0 to 14 and withstands temperatures from 0 to 100 degrees C (32 to 212 degrees F). It is 12mm in diameter and 120mm long, and has a 1m cable with a Bayonet Neill-Concelman (BNC) connector for attaching to meters with a BNC connection. pH electrodes measure the acidity or alkalinity of a substance and are commonly used by researchers, manufacturers, and hobbyists in hydroponics, aquaculture, agriculture, and wine-making, among other applications.

An electrode, also called a sensor or probe, is an instrument used with a meter to test and measure parameters of a substance. All electrodes are probes or sensors, but not all probes are electrodes or sensors. Probes, such as temperature probes, are used to penetrate a material for measurement. Common electrode types are pH, total dissolved solid (TDS), oxidation reduction potential (ORP), and ion selective electrode (ISE). They come in standard models or in all-in-one (sometimes called 3-in-1) models, which have a built-in temperature sensor for automatic temperature compensation (ATC). Electrodes can be half-cell or full- (also called combination) cell type. They can be refillable or non-refillable. Housing material is typically glass or epoxy, and sensors are commonly made with stainless steel or a glass bulb. pH electrodes, which measure the pH of a substance, often have a glass bulb. The bulb senses hydrogen ions, and generates a millivoltage that is picked up by the filling solution and transferred to a wire that connects to the pH meter. ORP, also known as redox, electrodes measure dissolved oxygen in aqueous solutions to determine the level of contaminants and their ability to act as oxidizing or reducing agents. Ion selective electrodes (ISEs) respond selectively to ions in the presence of other ions. Electrodes are commonly used by researchers, manufacturers, and hobbyists in a wide variety of industries, such as aquaculture, agriculture, chemistry, food and beverage, wine-making and water-testing, and for scientific applications. An electrode can be used with a datalogger to assist in temperature measurement.

Thermo Fisher Scientific manufactures analytical instruments, laboratory equipment, consumables, and software under the Thermo Scientific, Fisher Scientific, and Nalgene brands, among others. The company, founded in 2006, is headquartered in Waltham, MA.

What's in the Box?

• Thermo Scientific Orion 815600 pH electrode
• 1m cable
