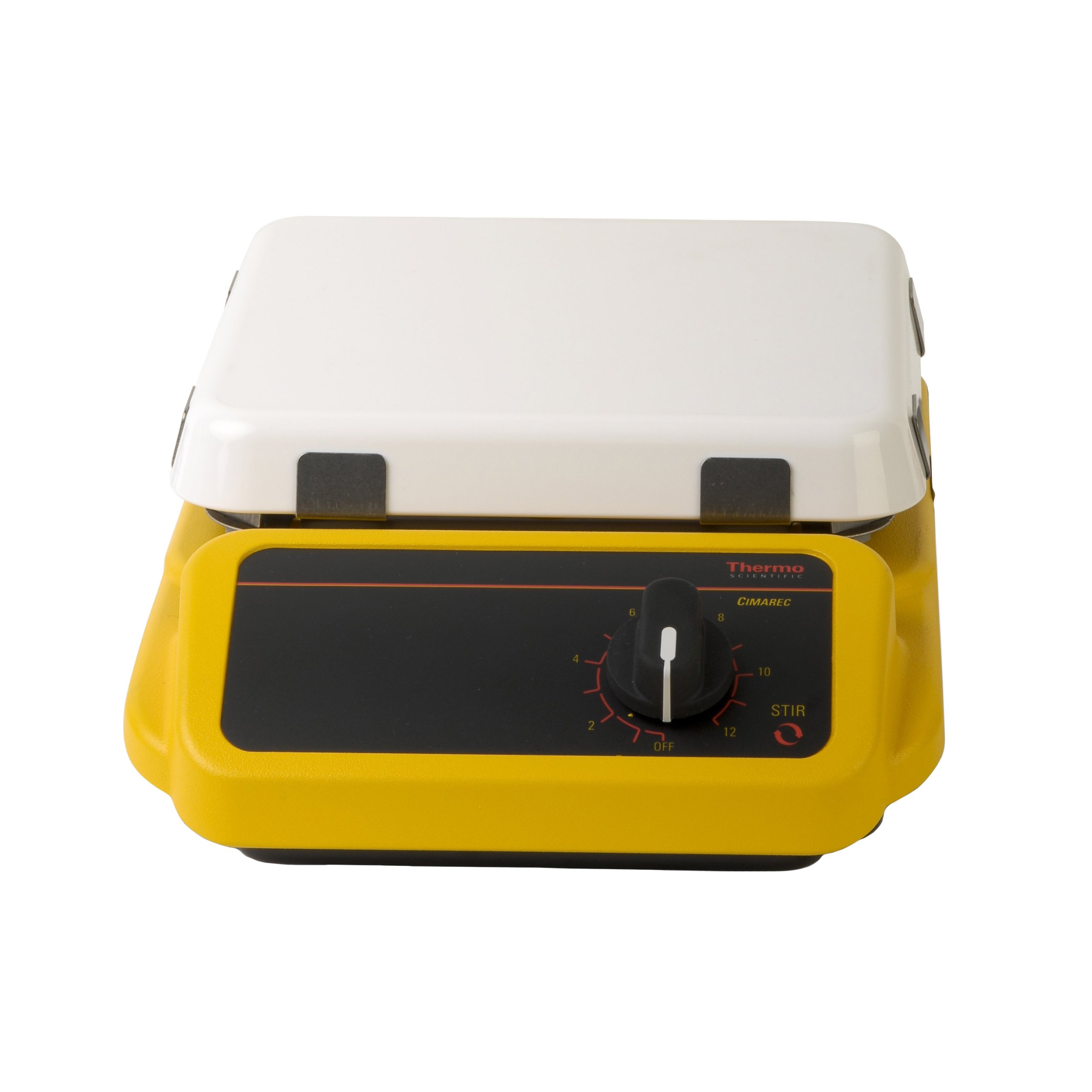

Thermo Scientific Cimarec Analog Basic Stirring Hot Plate with Ceramic Heating Plate and Integral Ring-Stand Holder

Be the first to review this item

Product Specifications
Material Type
Ceramic
UNSPSC Code
41113036
Brand Name
Thermo Scientific

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Wed, Oct 22? Order in-stock items in the next 15 hrs 49 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-2 of 2
Size name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-2 of 2
4.25" x 4.25" Ceramic Platform, 7.9" Length x 5.7" Width x 5" Height B005SVCZ8Q yes $279.35 Buy Options
7.25" x 7.25" Ceramic Platform, 11.1" Length x 8.3" Width x 5" Height B005SVD04Y yes $292.95 Buy Options

Key Features

  • Temperature range of 150 to 538 degrees C (302 to 1,000 degrees F)
  • White ceramic top plate for fast heating and resistance to chemicals and scratches
  • Analog temperature control with knob
  • Speed range of 100 to 2,500 rpm with analog knob control
  • Integrated ring stand mount holds a 1/2-inch diameter rod (sold separately)

Product Description

The Thermo Scientific Cimarec analog stirring hot plate has a white ceramic top plate, a temperature range of 150 to 538 degrees C, and a speed range of 100 to 2,500 rpm. The white ceramic top plate provides fast heating and resistance to chemicals and scratches, and it reaches maximum temperature in less than eight minutes. It has analog temperature control and speed control with knobs. The integrated ring stand mount holds a 1/2-inch diameter rod (sold separately). This stirring hot plate is used to heat glassware and heat and mix liquid solutions for scientific applications.

The Cimarec stirring hot plate is available in two top plate sizes: 4.25 x 4.25 inches and 7.25 x 7.25 inches (W x D). (W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.) The cast aluminum body is shaped to direct liquid or sample material away from the internal components in case of a spill. It comes with a tetrafluoroethylene-coated stir bar.

Specifications
Top plate materialCeramic
Temperature range150 to 538 degrees C (302 to 1,000 degrees F)
Speed range100 to 2,500 rpm
Standards metcCSAus
Power120V 60Hz

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Laboratory hot plates are electric or gas-fired benchtop appliances that are used to heat glassware or its liquid or solid contents. Stirring hot plates can stir a liquid solution by means of a stir bar that is spun magnetically inside the vessel holding the solution. Hot plates are commonly used in scientific research, clinics, and classrooms.

Thermo Fisher Scientific manufactures analytical instruments, laboratory equipment, consumables, and software under the Thermo Scientific, Fisher Scientific, Barnstead, and Nalgene brands, among others. The company is headquartered in Waltham, MA.

What's in the Box?

  • Cimarec stirring hot plate
  • Stir bar
  • Instructions
