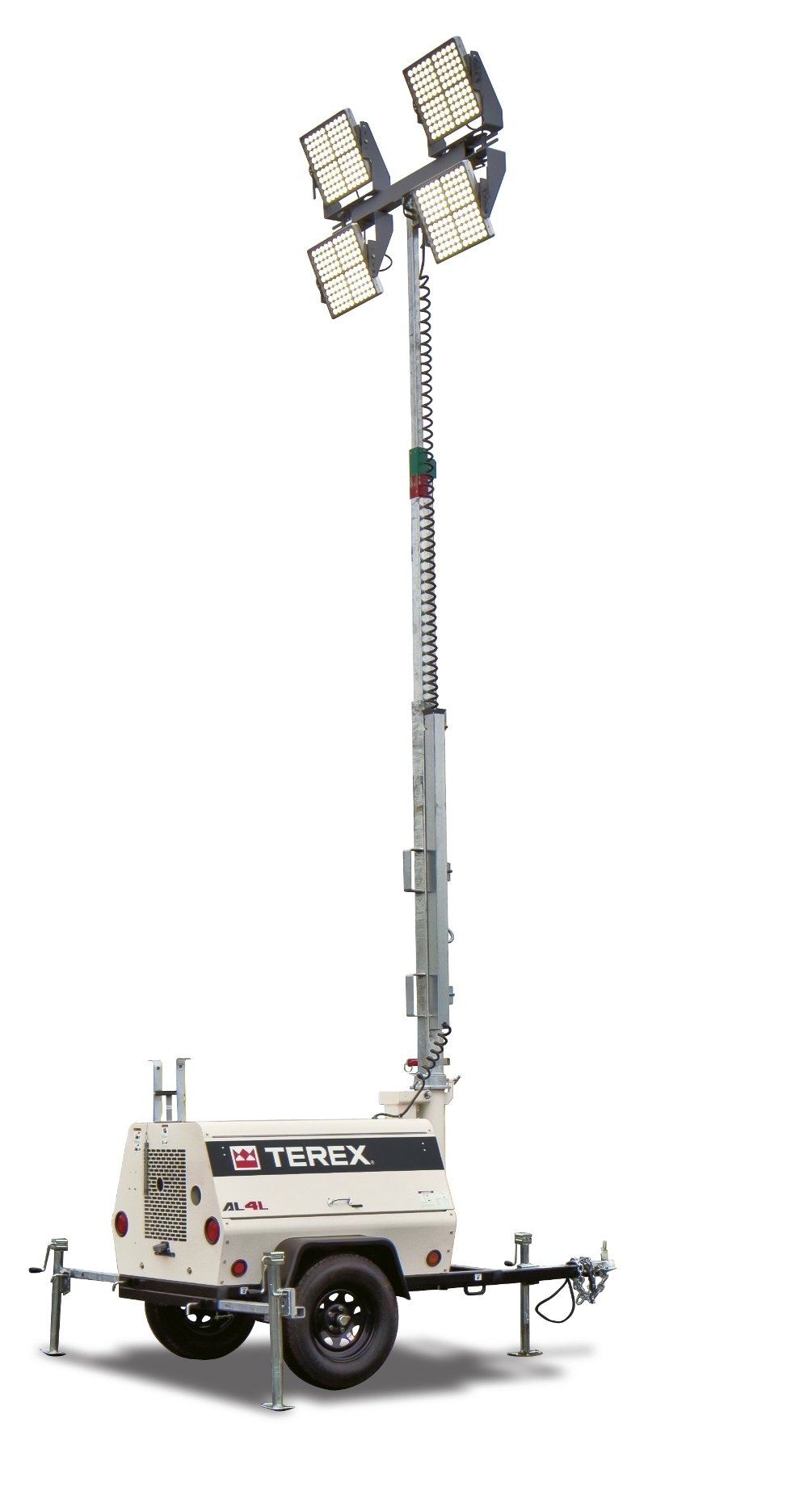

Terex AL4L Fuel Saving Portable LED Light Tower, 6kW Generator Powered, 1080 Watts of Light

Be the first to review this item

ASIN B004QTPK06

Specifications for this item
Number of Items
1
Maximum Lifting Height
30  inches
Part Number
AL4L-generator-no-batteries
Brand Name
Terex
UNSPSC Code
39112001

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • 6 kW generator for periods of extended use

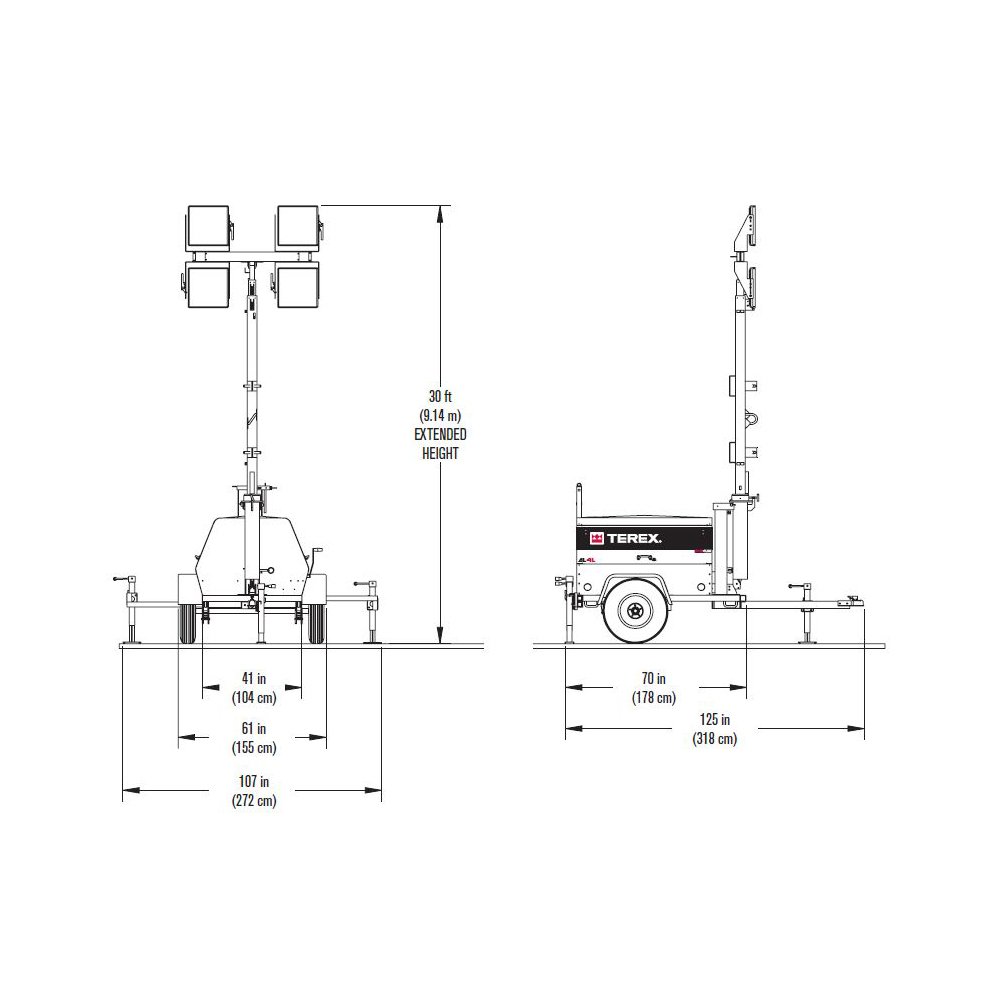

  • 30' (9.14 m) light height for illuminating large areas
  • Uses LED lights with a 50,000 hour bulb life for cost savings and convenience
  • 359-degree non-continuous tower rotation for precision light positioning

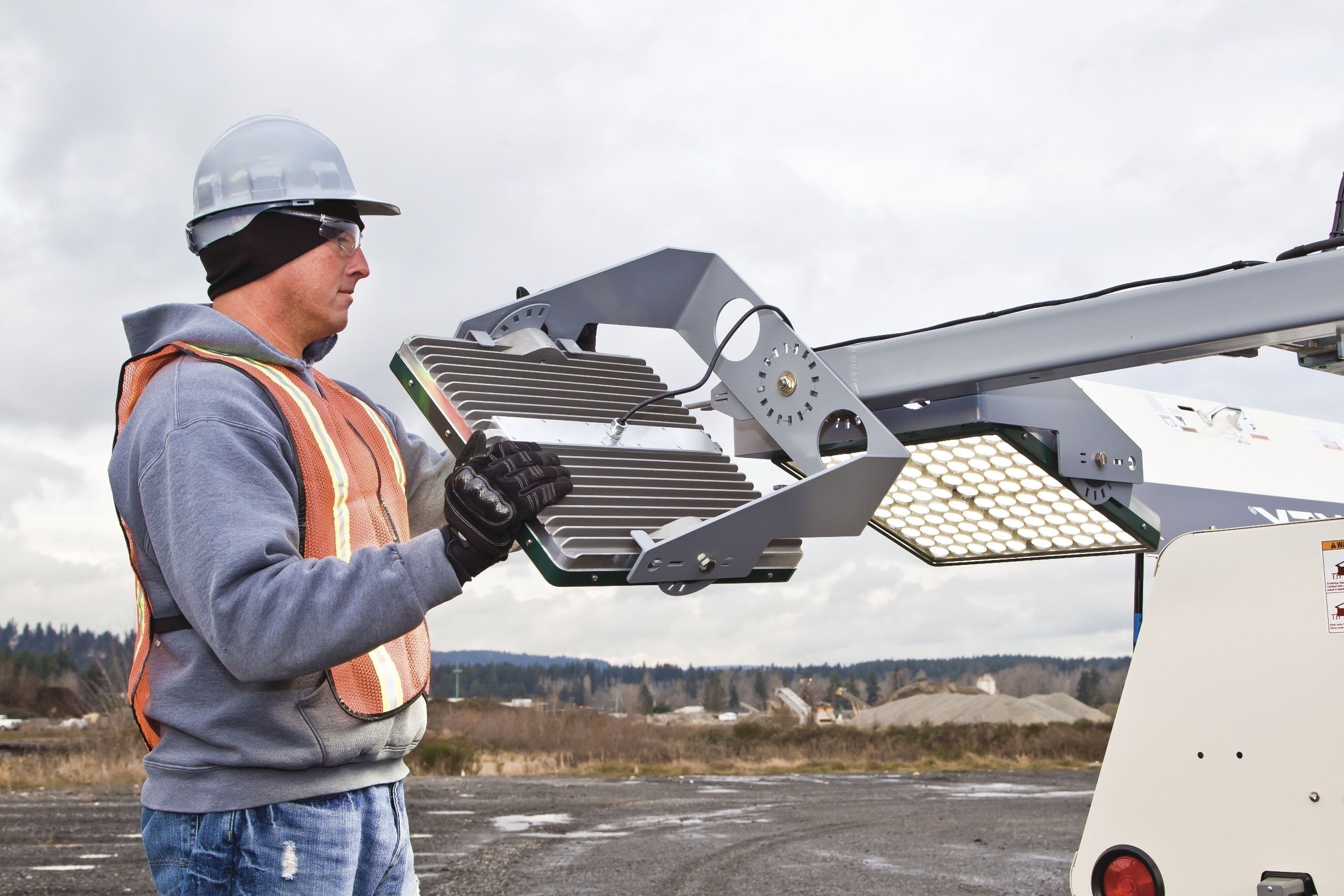

  • LED lights are adjustable without tools for ease of use

Package Details

Shipping Weight: 2092 pounds

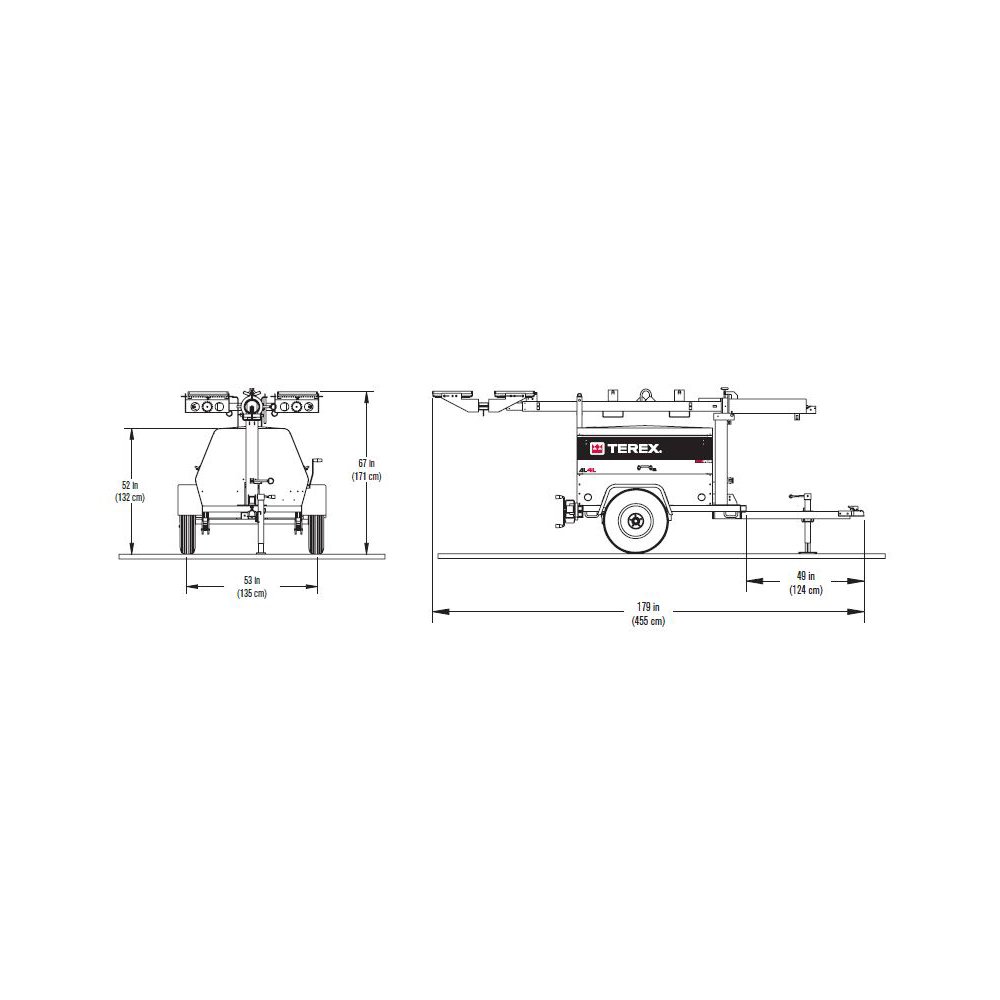

Package Size: 179 x 67 x 61 inches

Product Description

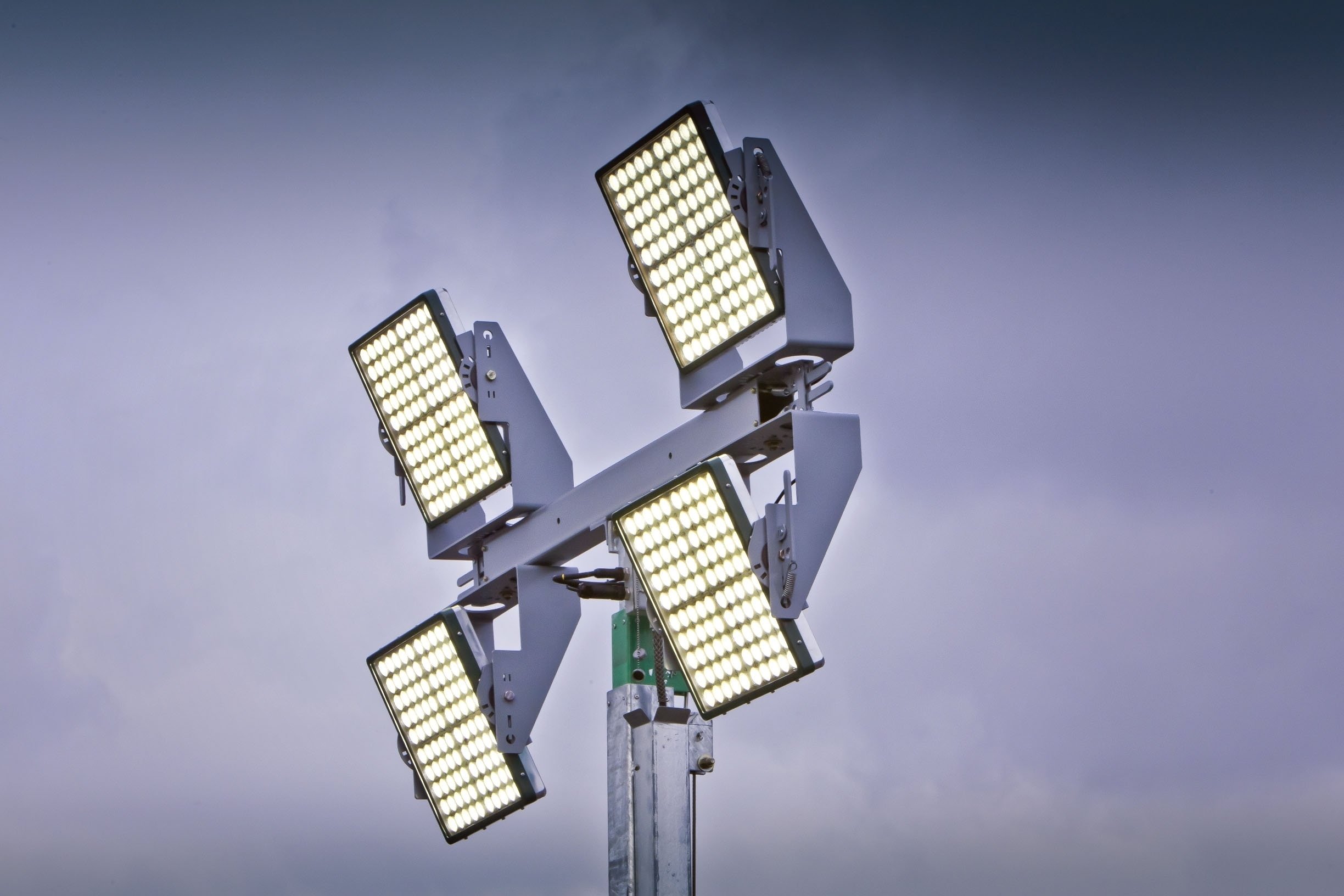

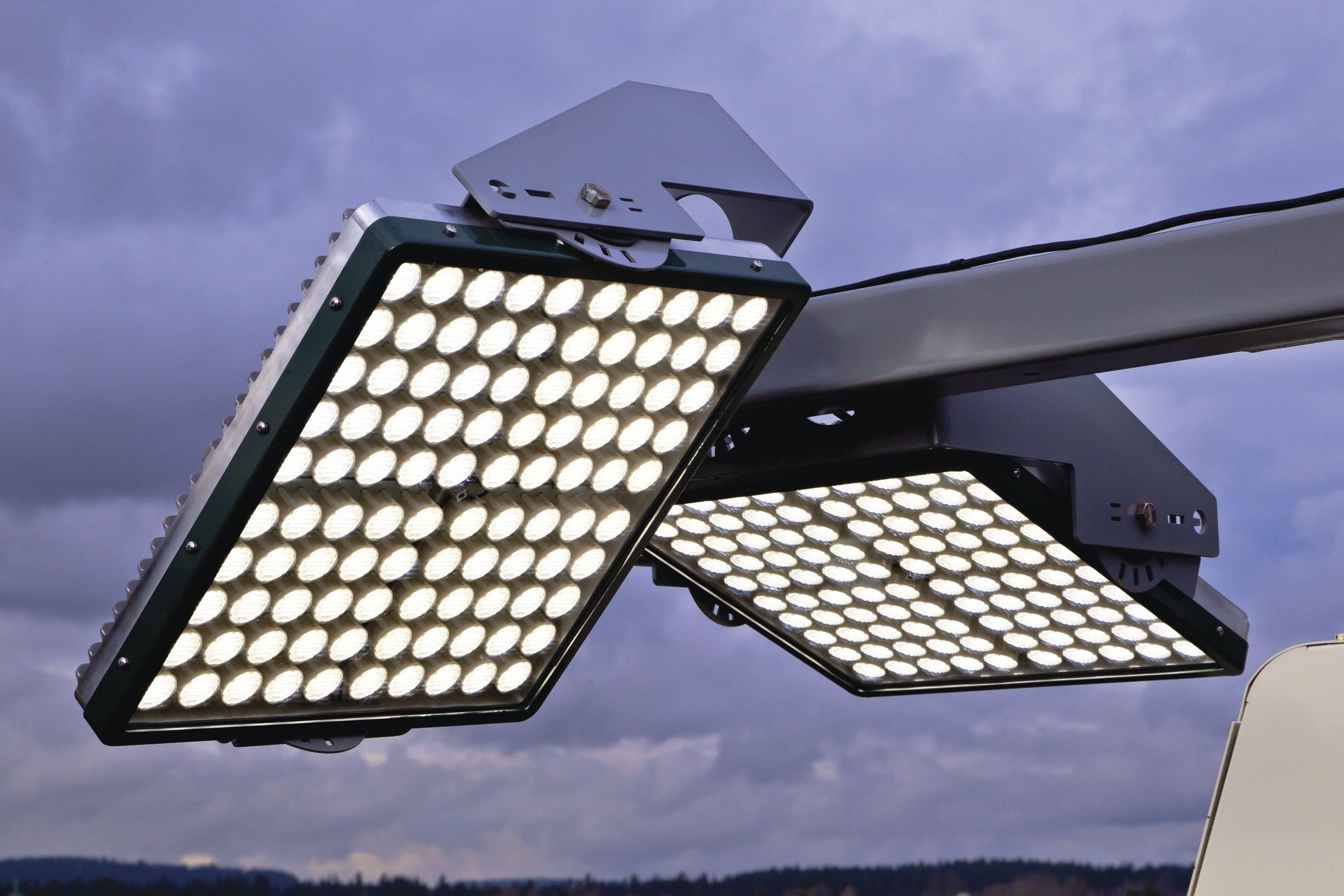

The Terex AL-4L is a 6 kW generator powered LED light tower with four lights, a 30' (9.14 m) lift height, and 359-degree non-continuous tower rotation for precision light positioning. The AL-4L has (4) 270 watt, individually adjustable and heat resistant LED lamps for reducing glare, an instant on/off operation, and for extended bulb life (up to 50,000 hours).

TEREX Logo
  • Uses LED lights with a 50,000 hour bulb life for cost savings and convenience
  • 359-degree non-continuous tower rotation for precision light positioning
  • LED lights are adjustable without tools for ease of use
Ideal for Extended Use

The tower operates on a brushless 60 Hz 6.0 kW generator, with a Kubota diesel 13.6 hp engine, and a 30 gallon (189 L) tank which provides up to 90 hours of continuous use. The operational temperature range is -40 to 105 degrees F, with standard engine protection shutdowns at high temperature and low oil.

Easy to Transport

The AL-4L has a centerpoint lifting bracket, fork lift pockets for hard to reach job sites, and a 2" ball hitch for transport. The light tower sits on (2) 15" (38 cm) wheels, weighs 1,950 lbs (950 kg) with no fuel, and has a 3,500 lb axle rating. The cabinet is protected with a fade resistant finish for protection from the elements. Department of Transportation (DoT) approved tail lights are affixed to the back of the tower for safe transportation.

About Light Towers

Light tower units are used for illuminating events and work sites to maximize nighttime productivity and consist of a tower with a durable base and mast, with a set of lights at the top of the mast that can be rotated and positioned as necessary. Light towers are used for many different applications, including construction, mining, and sporting events. For industrial use only.

About Terex Corporation

Terex Corporation manufactures heavy equipment for material handling, mining, road building, and construction. The company, headquartered in Westport, CT, makes equipment under the Terex, Powerscreen, and Genie brands. Genie products include personnel and material lifts, booms, light towers, and telehandlers.

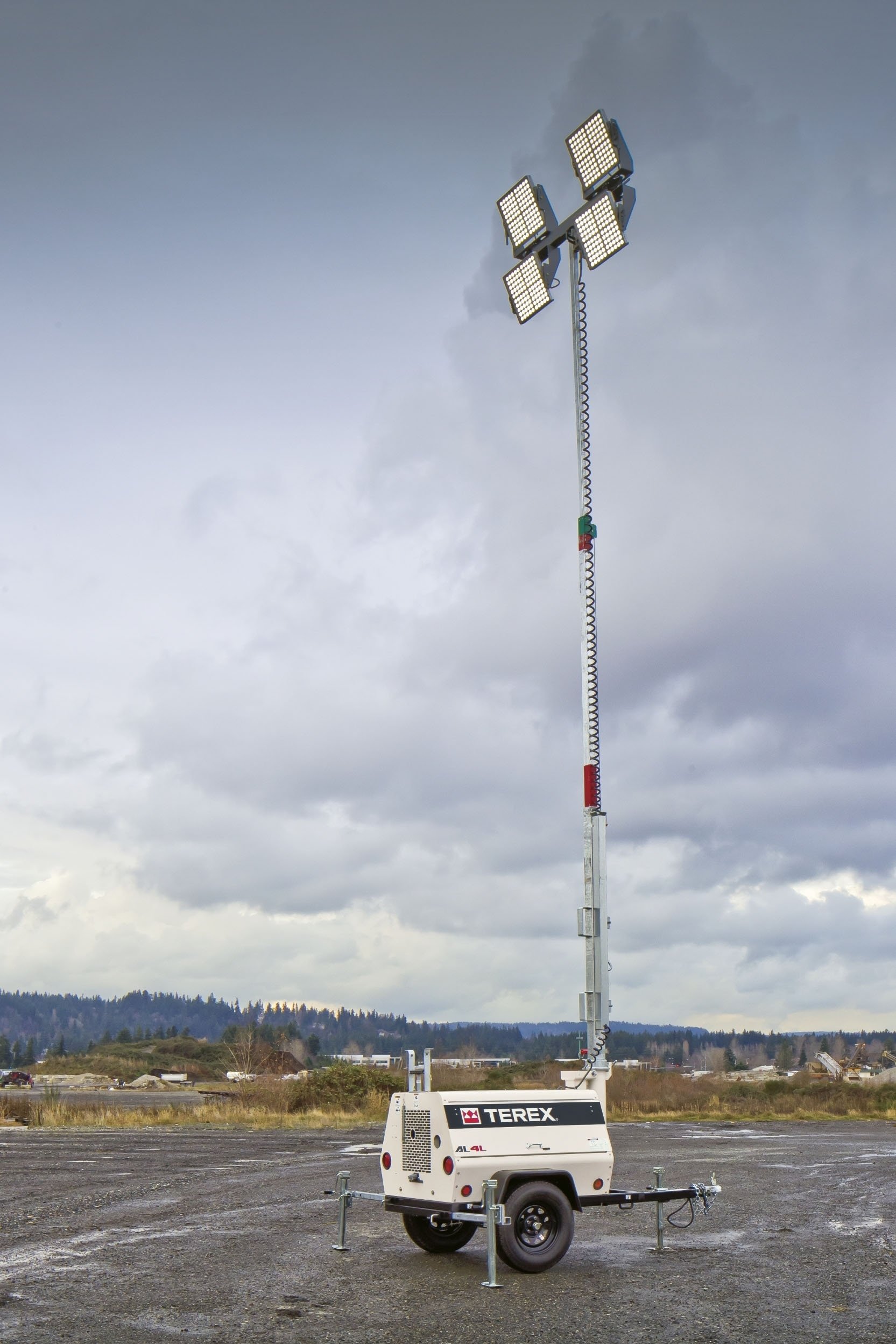

Terex AL-4L LED Light Tower Lifestyle Shot
From construction sites to sporting events, this tower is built to deliver consistent, reliable light.
