Terex AL4 Heavy-Duty Portable Light Tower,6kW Generator Powered 4000 Watts of Light

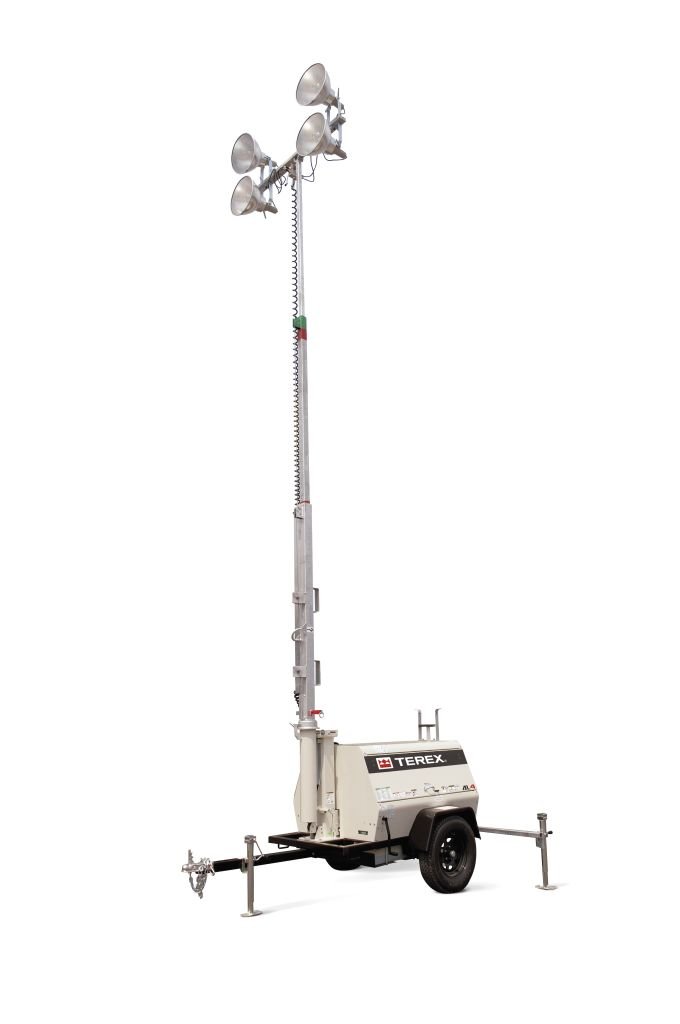

The Terex AL 4 is a 6 kW generator powered metal halide light tower with four individually adjustable lights, a 30' lift height, and 359-degree non-continuous tower rotation for precision light positioning. The AL 4 has (4) 1,000 watt, adjustable metal halide lamps, each with a lifespan of 5,000 to 10,000 hours, for providing high intensity light at job sites.

• Ergonomically designed winch handle for lowering and raising tower
• 6 kW generator provides up to 60 hours of continuous use
• Four metal halide lamps for high intensity light

Powerful Operation

The AL 4 operates on a brushless 60 Hz 6.0 kW generator, with a Kubota diesel 13.6 hp engine and a 30 gallon (114 L) tank which can provide up to 60 hours of continuous use. The engine has an operational temperature range of -40 to 105 degrees F, and it is protected with standard high water temperature and low oil pressure shutdowns.

Safe, Weatherproof Design

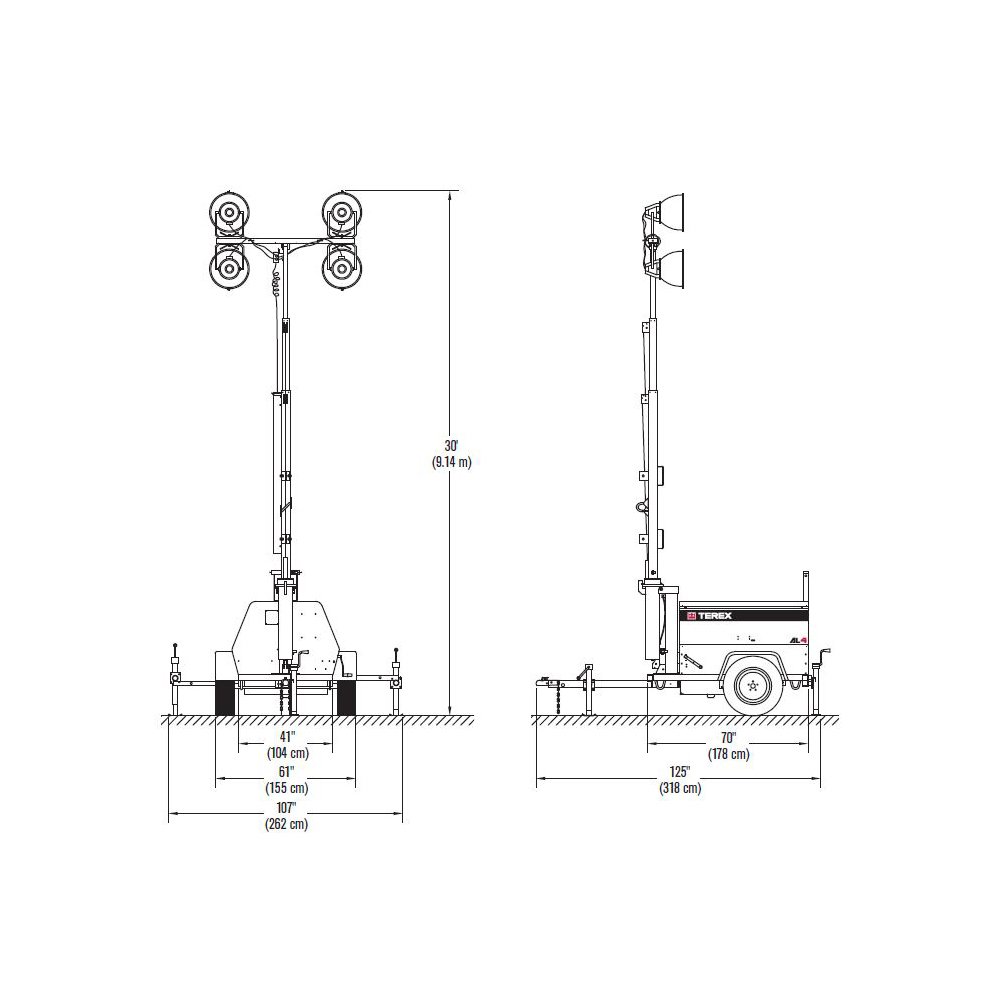

The AL 4 has a 30' (9.14 m) fully galvanized mast with a single self-braking winch design, and an ergonomically placed handle for raising and lowering the tower. The hand-operated winch and control panel are mounted inside the cabinet for protection from the elements. The retractable power cord, also protected by a rotatable mast sleeve, automatically recoils when raising or lowering the tower. The AL 4 has individual quick-connect plug-in ballasts installed in galvanized steel boxes for simple service and repair (one GFI duplex 20 A / 120 V receptacle and one T/L 30 A / 240 V receptacle). All light fixtures plug into a waterproof box with UL and CSA approved connectors, and can be secured on the mast for safe travel.

Easy to Load and Transport

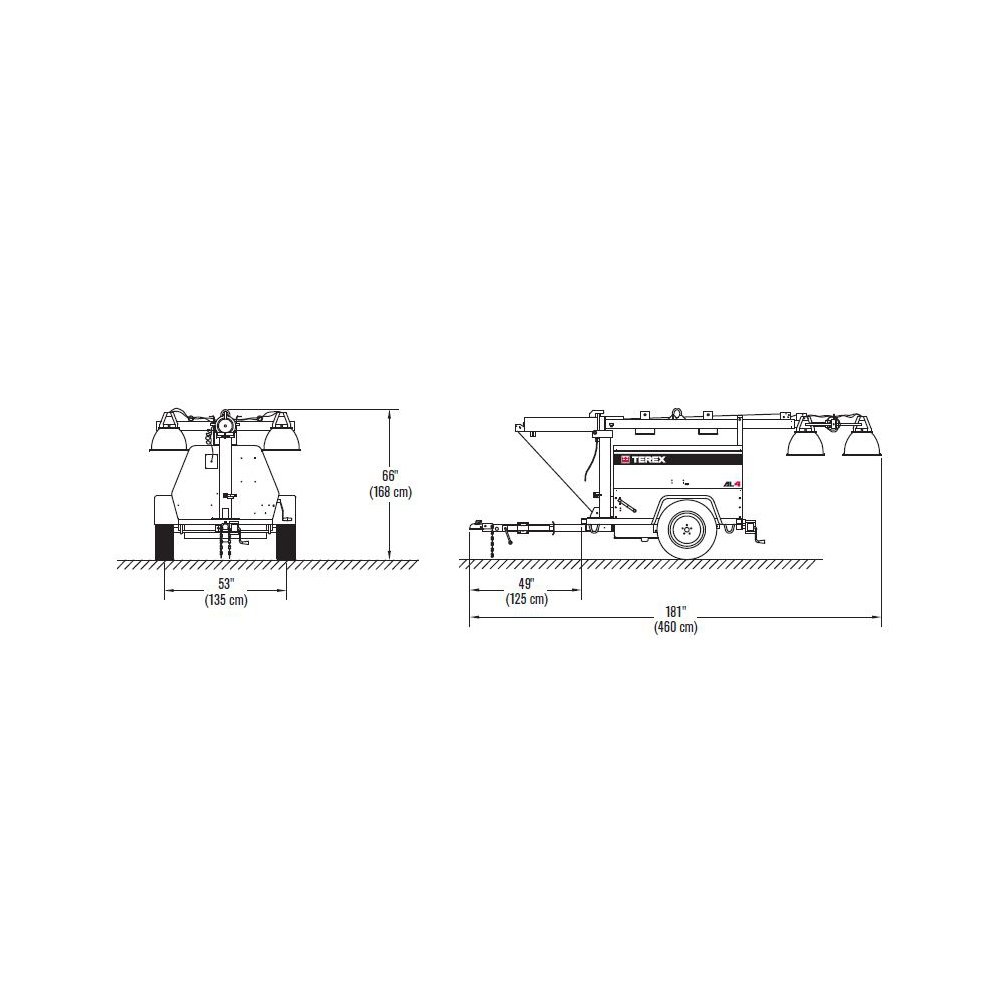

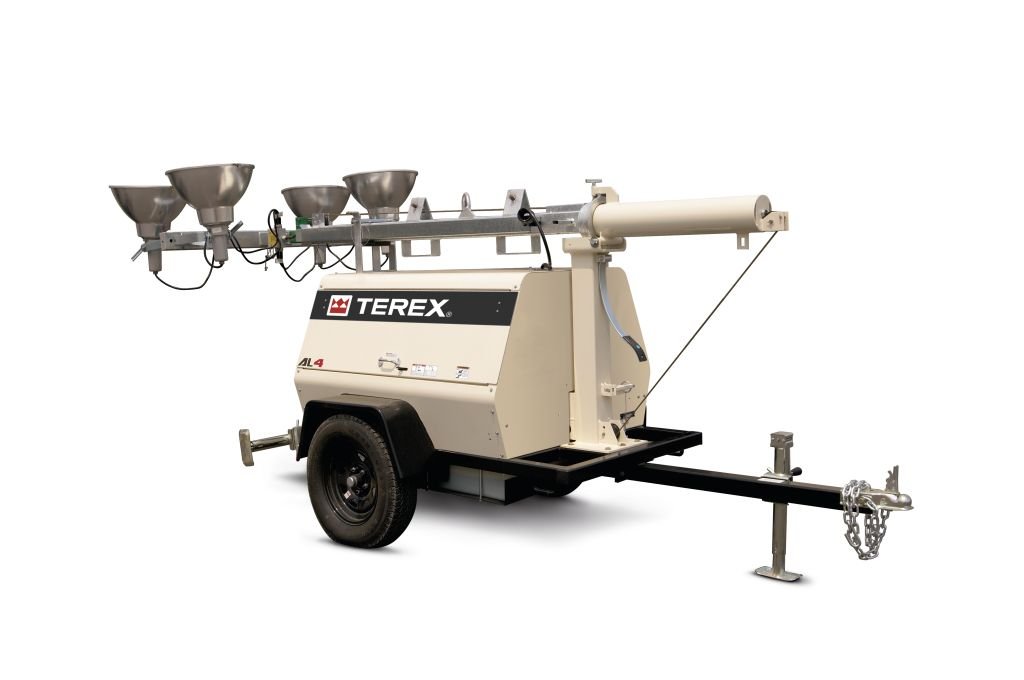

The AL 4 has a single point lifting eye, fork lift pockets for placement at difficult to reach job sites, and galvanized outriggers with pre-set position stops to ensure proper spacing. The light tower has a 2" (50.8 mm) ball coupler for towing, is set on (2) 15" wheels, weighs 1,950 lbs (885 kg) with no fuel, and has an axle rating of 3,500 lbs (1558 kg) for travel on rough roads. Department of Transportation (DoT) approved tail lights are affixed to the back of the tower for safe transportation.

About Light Towers

Light tower units are used for illuminating event and work sites to maximize nighttime productivity and consist of a tower with a durable base and mast, with a set of lights at the top of the mast that can be rotated and positioned as necessary. Light towers are used for many different applications, including construction, mining, and sporting events. For industrial use only.

About Terex Corporation

Terex Corporation manufactures heavy equipment for material handling, mining, road building, and construction. The company, headquartered in Westport, CT, makes equipment under the Terex, Powerscreen, and Genie brands. Genie products include personnel and material lifts, booms, light towers, and telehandlers.

From construction sites to sporting events, this tower is built to deliver consistent, reliable light.

View detailed PDF.
