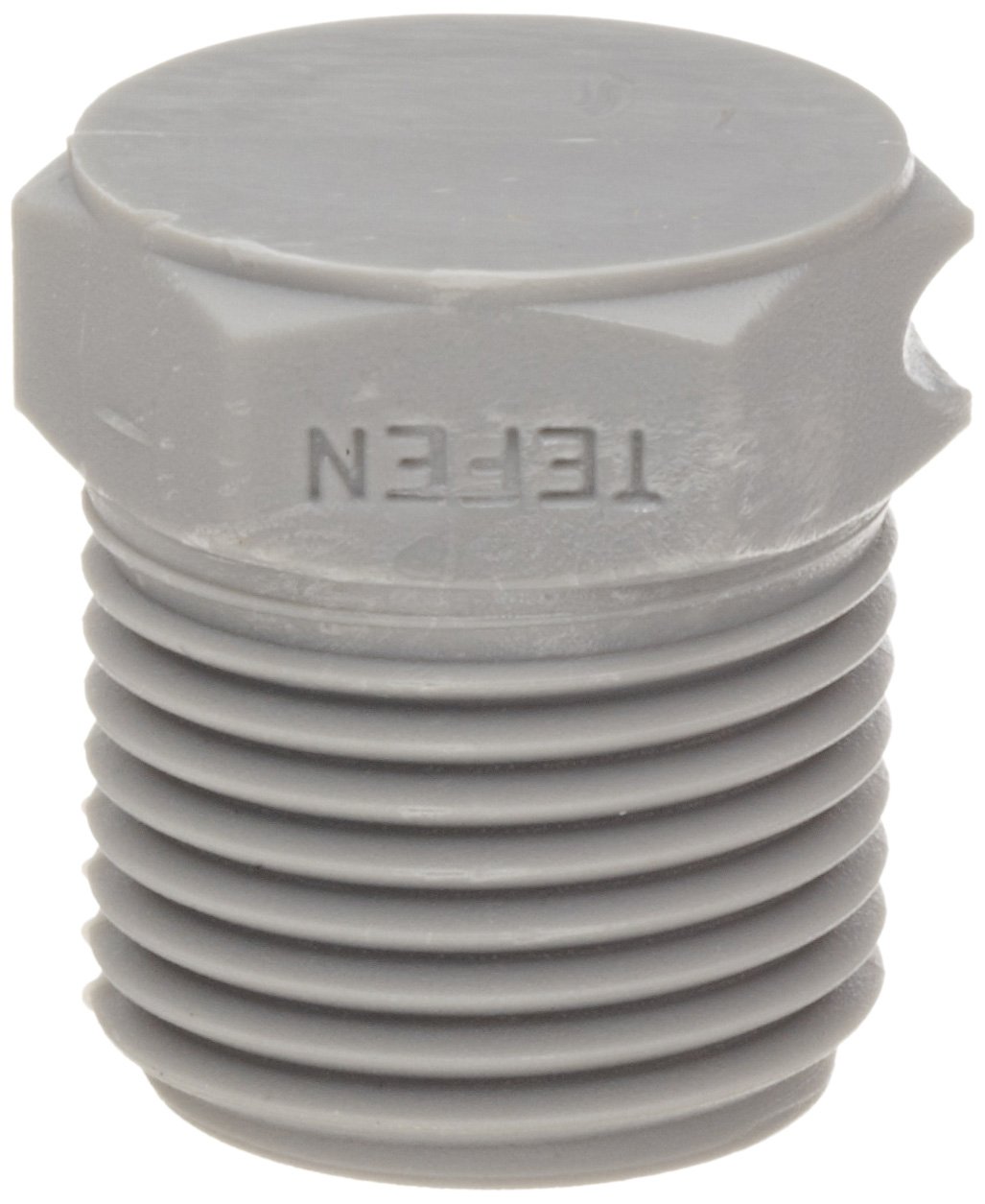

Tefen Nylon 6/6 Pipe Fitting, Hex Plug, Gray, NPT Male

Be the first to review this item

Product Specifications
Item Shape
Plug
Material Type
Nylon
Pressure Rating Class
Not Rated
Color Name
Gray
Brand Name
Tefen
Upper Temperature Range
230  Degrees Fahrenheit
Specification Met
NSF , ANSI 61
Style Name
Threaded
UNSPSC Code
40170000
Maximum Working Pressure
200  PSI
LowerTemperature Range
-5  Degrees Fahrenheit
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Dec 1? Order in-stock items in the next 2 days 3 hrs 32 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-3 of 3
Pipe Size Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-3 of 3
1/8" 10 B006OGE1H2 yes $4.94 Buy Options
1/2" 10 B006OGE01E yes $6.73 Buy Options
3/4" 10 B006OGE26C yes $9.54 Buy Options

Key Features

  • Hex plug for closing the end of a pipe or fitting
  • Male National Pipe Taper (NPT) threads for connecting to a female threaded pipe
  • Nylon 6-6 for high strength and flexibility, abrasion resistance, and a higher melting temperature than Nylon 6
  • Working pressure of up to 200 psi
  • Meets NSF/ANSI standard 61 for drinking (potable) water

Product Description

The Tefen hex plug pipe fitting is made of gray nylon 6-6 and has a male National Pipe Taper (NPT) threaded connection. This hex plug fitting inserts into a pipe or fitting to close and terminate its end and has a hexagonal head for an increased bearing surface when adjusting the fitting with a wrench. It has male NPT threads for connecting to a female threaded pipe, creating a tighter seal than straight threads. This fitting is made of nylon 6-6 for high strength and flexibility, resistance to chemicals and abrasion, and a higher melting temperature than Nylon 6. The working pressure for this fitting is up to 200 pounds per square inch (psi), or 14 bar. This fitting meetings National Sanitation Foundation (NSF)/American National Standards Institute (ANSI) standard 61 for use with drinking (potable) water.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Tefen Advanced Plastic Solutions manufactures plastic fittings for pneumatic, automation, and irrigation applications. The company, founded in 1970, meets International Organization for Standardization (ISO) 9001:2000 standards for quality assurance.
