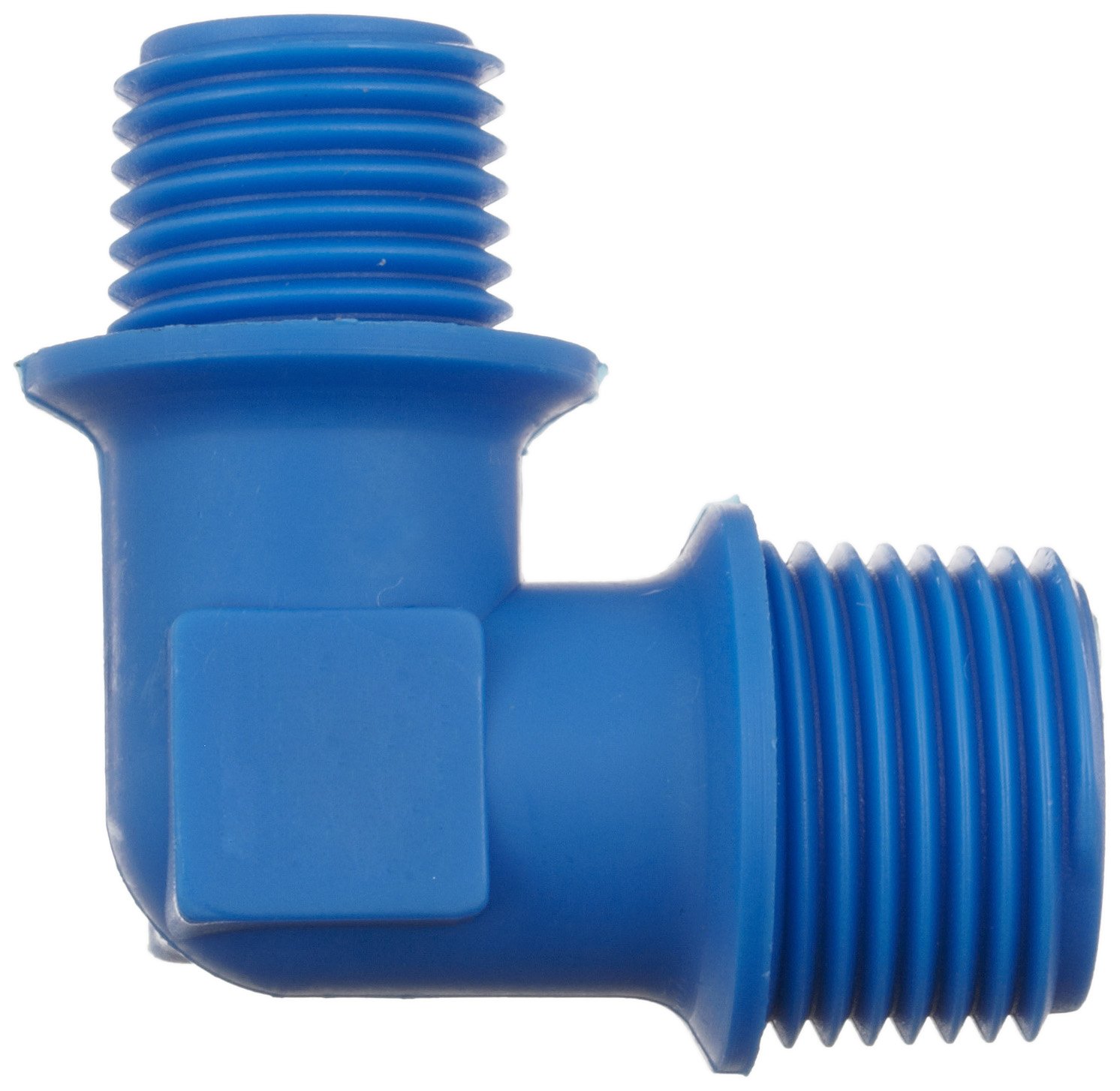

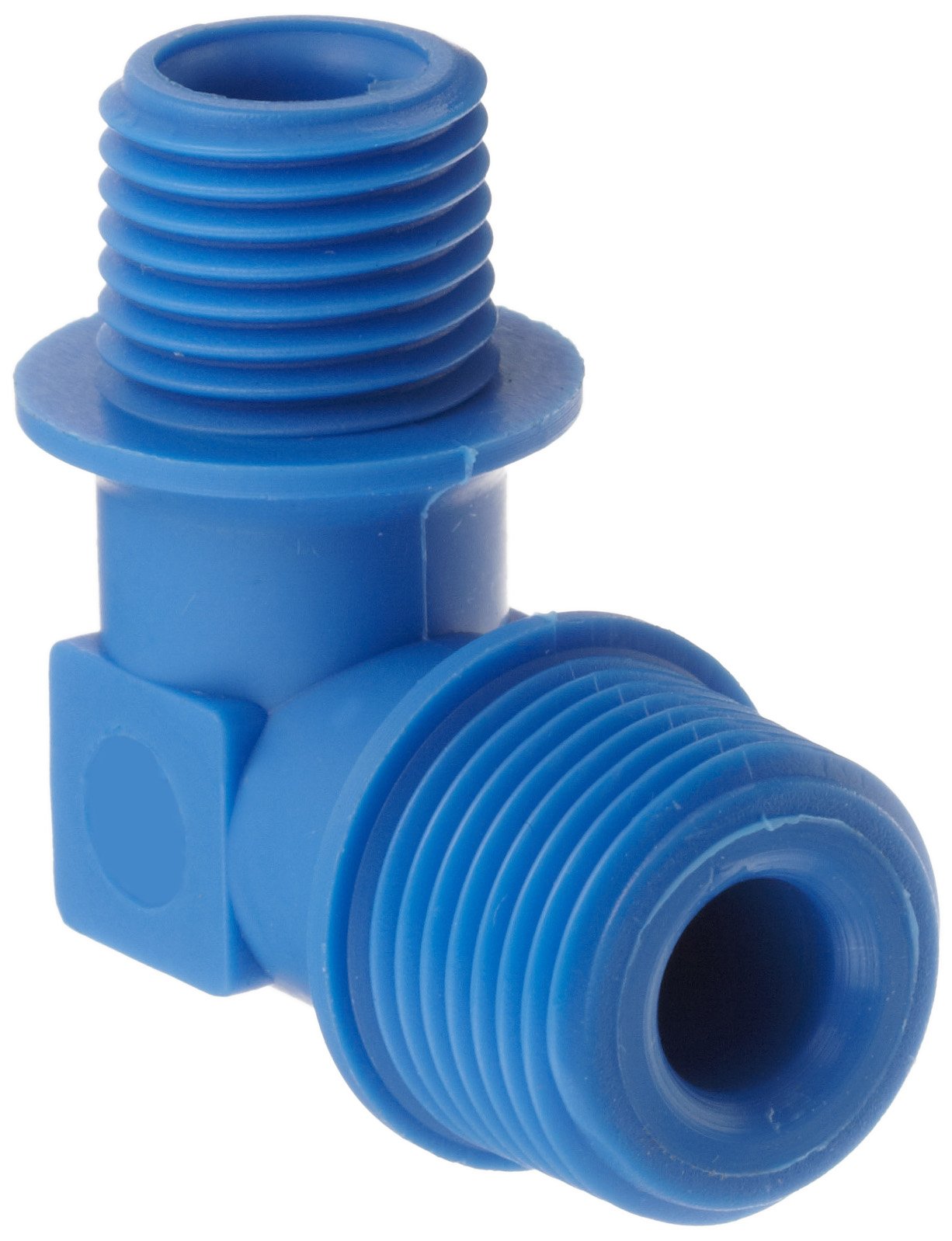

Tefen Nylon 6/6 Pipe Fitting, 90 Degree Elbow, Blue, BSPT Male

Be the first to review this item

Product Specifications
Item Shape
90 Degree Elbow
Material Type
Nylon
Pressure Rating Class
Not Rated
Color Name
Blue
Brand Name
Tefen
Upper Temperature Range
230  Degrees Fahrenheit
UNSPSC Code
40170000
Style Name
Threaded
Maximum Working Pressure
200  PSI
LowerTemperature Range
-5  Degrees Fahrenheit
System of Measurement
Inch

This item is no longer available

Free Standard Shipping! on orders over $50.00.
(limited-time offer, certain restrictions apply) (Details)

  • Share
Currently showing 1-6 of 6
Pipe Size Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-6 of 6
1/8" 10 B006OGBVD4 yes $6.16 Buy Options
1/4" 10 B006OGBUPI yes $9.68 Buy Options
3/8" 10 B006OGBVPW yes $3.92 Buy Options
3/8" x 1/4" 10 B006OGBW38 yes $10.03 Buy Options
1/2" 5 B006OGBU1M yes $6.13 Buy Options
1/2" x 3/8" 5 B006OGBUGM yes $5.74 Buy Options

Key Features

  • 90-degree elbow for connecting two pipes or fittings at an angle
  • Male British Standard Pipe Taper (BSPT) threads for connecting to female threaded pipes
  • Nylon 6-6 for high strength and flexibility, abrasion resistance, and a higher melting temperature than Nylon 6
  • Working pressure of up to 200 psi
  • Meets NSF/ANSI standard 61 for drinking (potable) water

Product Description

The Tefen 90-degree elbow pipe fitting is made of blue nylon 6-6 and has male British Standard Pipe Taper (BSPT) threaded connections. This 90-degree elbow fitting, or "ell," connects two pipes at a 90-degree angle to change the direction of flow between pipes. It has male BSPT threads for connecting to female threaded pipes, creating a tighter seal than straight threads. This fitting is made of nylon 6-6 for high strength and flexibility, resistance to chemicals and abrasion, and a higher melting temperature than Nylon 6. The working pressure for this fitting is up to 200 pounds per square inch (psi), or 14 bar. This fitting meetings National Sanitation Foundation (NSF)/American National Standards Institute (ANSI) standard 61 for use with drinking (potable) water.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Tefen Advanced Plastic Solutions manufactures plastic fittings for pneumatic, automation, and irrigation applications. The company, founded in 1970, meets International Organization for Standardization (ISO) 9001:2000 standards for quality assurance.
