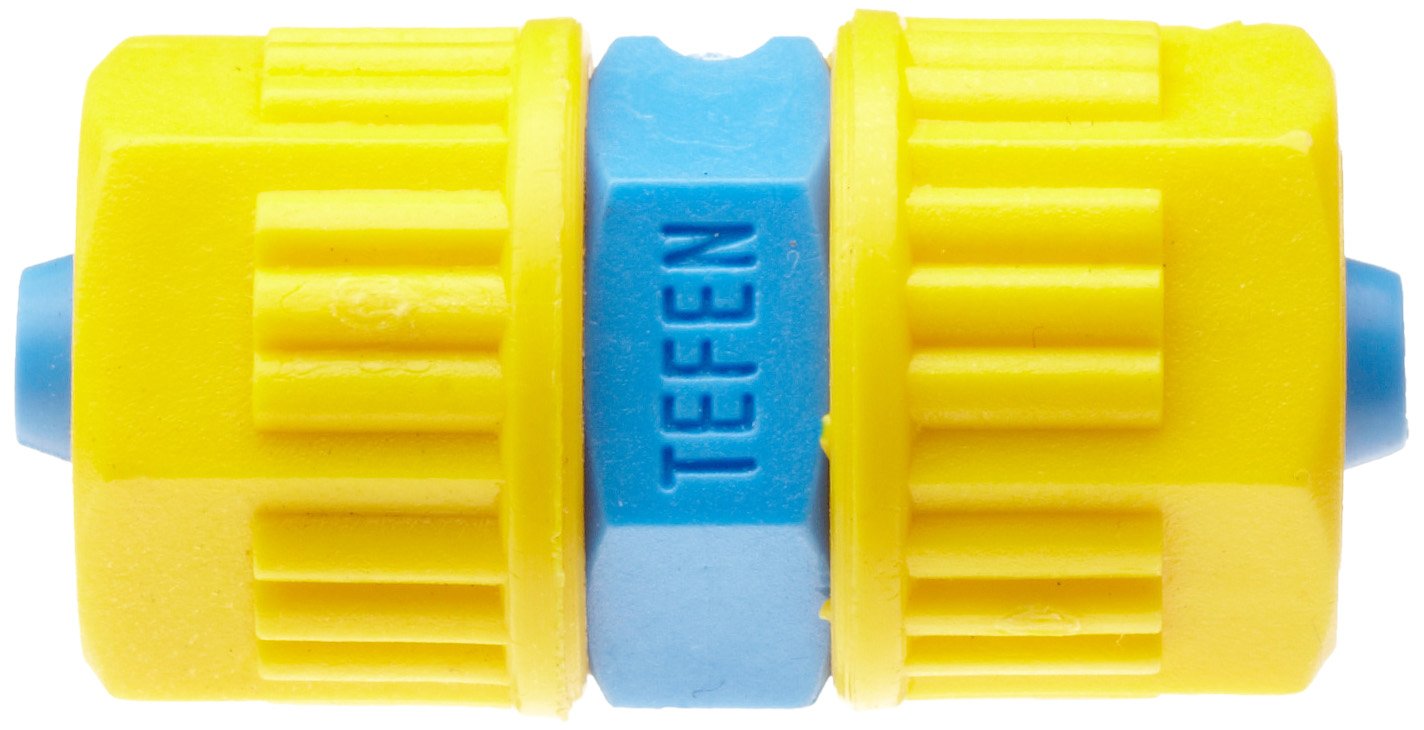

Tefen Fiberglass Polypropylene Compression Tube Fitting, Union, Yellow/Blue, Tube OD

Be the first to review this item

Product Specifications
Item Shape
Union
Color Name
Yellow/Blue
Material Type
Polypropylene (PP)
Brand Name
Tefen
Upper Temperature Range
194  Degrees Fahrenheit
Style Name
Compression
Maximum Working Pressure
200  PSI
Overall Length
n/a  inches
LowerTemperature Range
39.2  Degrees Fahrenheit
System of Measurement
Inch

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Apr 18? Order in-stock items in the next 10 hrs 11 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-3 of 3
Tube Size Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-3 of 3
1/4" 5 B006OG77VE 1 $7.92 Buy Options
5/16" 5 B006OG78V8 1 $8.12 Buy Options
1/2" 5 B006OG76UG 1 $12.44 Buy Options

Key Features

  • Union for connecting and disconnecting two pipes more easily than couplings
  • Fitting connects to tubing on both ends
  • Fiberglass reinforced polypropylene for resistance to chemicals and fertilizers
  • Operating temperatures range from 39.2 to 194 degrees F
  • Working pressure of up to 200 psi

Product Description

The Tefen compression tube fitting is made of fiberglass polypropylene and connects to tubing on both ends. This union fitting has a threaded connection that can be screwed or unscrewed to connect or disconnect pipes more easily than couplings. This fitting is made of fiberglass reinforced polypropylene for indoor, outdoor, and field applications, and is resistant to chemicals and fertilizers. The operating temperatures range from 39.2 to 194 degrees F. The working pressure for this fitting is up to 200 pounds per square inch (psi).

Pipe and tube fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. Compression fittings do not require tools or sealants, and are useful in installations where a heat source, such as a soldering torch, is prohibited. When purchasing fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Tefen Advanced Plastic Solutions manufactures plastic fittings for pneumatic, automation, and irrigation applications. The company, founded in 1970, meets International Organization for Standardization (ISO) 9001:2000 standards for quality assurance.
