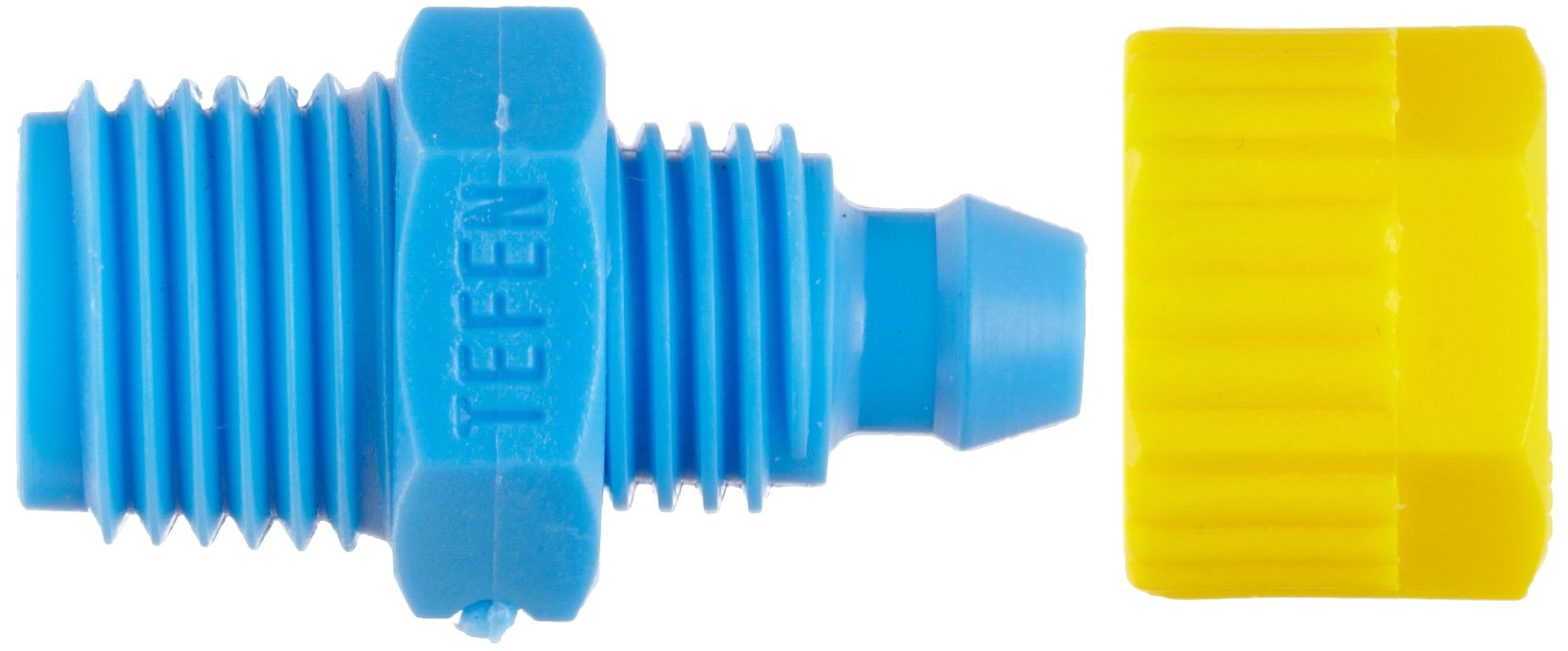

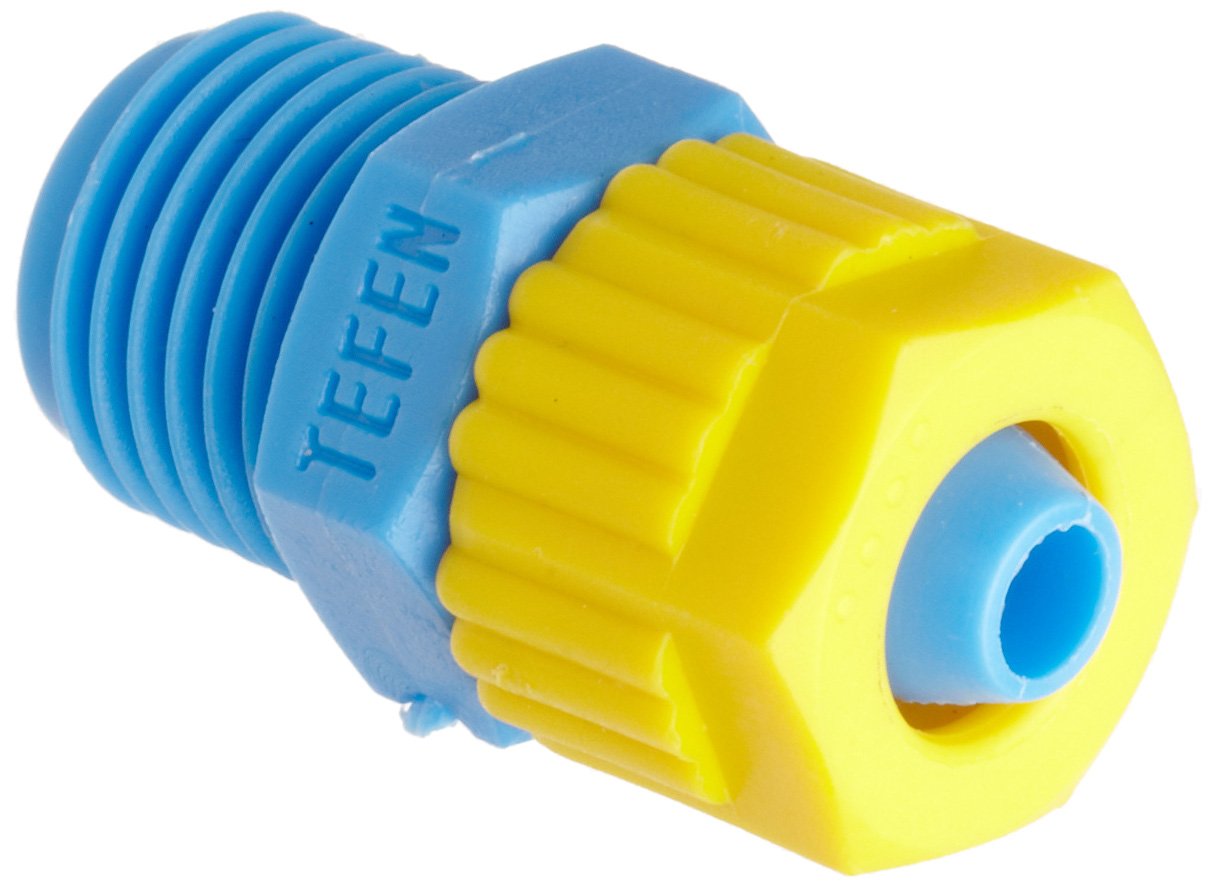

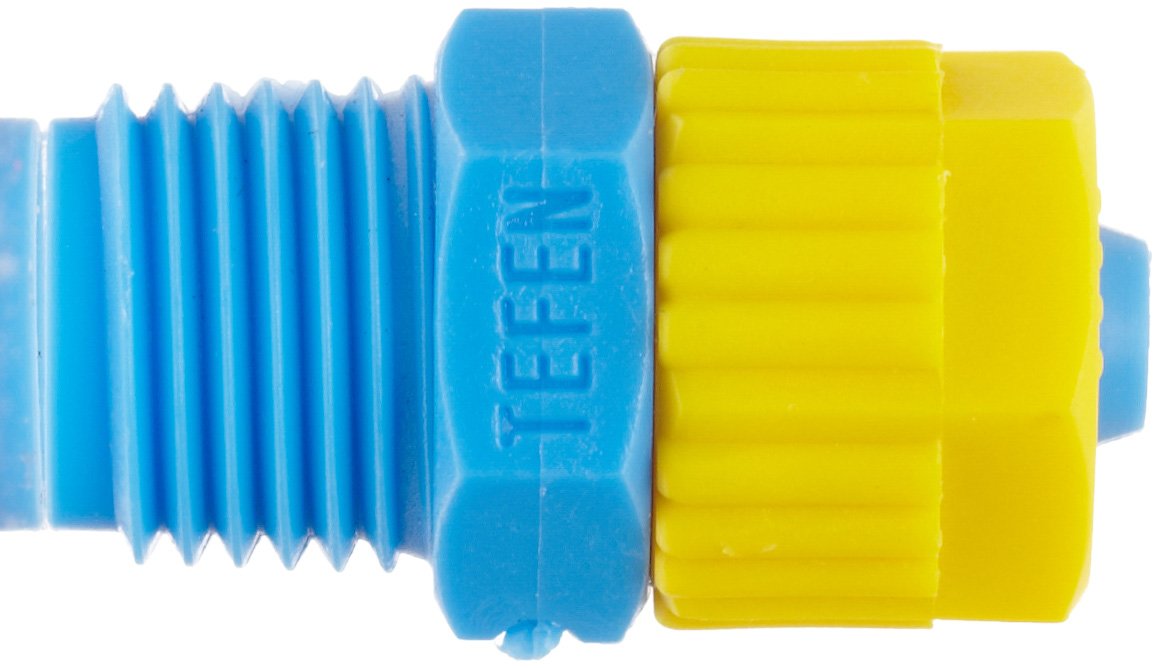

Tefen Fiberglass Polypropylene Compression Tube Fitting, Adapter, Yellow/Blue, Tube OD x BSPT Male

Be the first to review this item

Product Specifications
Item Shape
Adapter
Material Type
Polypropylene (PP)
Color Name
Yellow/Blue
Brand Name
Tefen
Upper Temperature Range
194  Degrees Fahrenheit
UNSPSC Code
40183100
Style Name
Compression
Maximum Working Pressure
200  PSI
LowerTemperature Range
39.2  Degrees Fahrenheit
System of Measurement
Inch
Overall Length
n/a  inches

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Fri, Sep 19? Order in-stock items in the next 5 hrs 11 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-14 of 14
Size name ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All
Currently showing 1-14 of 14
1/2" Tube OD x 1/2" BSPT Male B006OG5L1W yes $10.61 Buy Options
1/2" Tube OD x 1/4" BSPT Male B006OG5LJE yes $6.67 Buy Options
1/2" Tube OD x 3/8" BSPT Male B006OG5M16 yes $9.02 Buy Options
1/4" Tube OD x 1/2" BSPT Male B006OG5MIY yes $7.06 Buy Options
1/4" Tube OD x 1/4" BSPT Male B006OG5N56 yes $6.90 Buy Options
1/4" Tube OD x 1/8" BSPT Male B006OG5NLA yes $5.50 Buy Options
1/4" Tube OD x 3/4" BSPT Male B006OG5O6O Usually ships in 1 to 2 months $10.01 Buy Options
3/8" Tube OD x 1/2" BSPT Male B006OG5OQE yes $7.82 Buy Options
3/8" Tube OD x 1/4" BSPT Male B006OG5PPY Usually ships in 1 to 2 months $7.50 Buy Options
3/8" Tube OD x 3/4" BSPT Male B006OG5QBW yes $5.73 Buy Options
3/8" Tube OD x 3/8" BSPT Male B006OG5QVM yes $7.03 Buy Options
5/16" Tube OD x 1/4" BSPT Male B006OG5RH0 yes $5.63 Buy Options
5/16" Tube OD x 1/8" BSPT Male B006OG5S2E yes $5.81 Buy Options
5/16" Tube OD x 3/8" BSPT Male B006OG5SI8 yes $5.90 Buy Options

Key Features

  • Adapter for connecting pipes or fittings of different types
  • Push-to-connect fitting connects to pipes or tubing on one end and has a BSPT male connector on the other
  • Made of fiberglass reinforced polypropylene for resistance to chemicals and fertilizers
  • Working pressure of up to 200 psi
  • For use in indoor, outdoor, and field hydraulic applications

Product Description

This Tefen adapter fitting is made of fiberglass polypropylene and has tube and BSPT male connectors. It connects pipes or fittings with different end types, diameters, or materials. It is a push-to-connect fitting that connects to pipes or tubing on one end and has a British Standard Pipe Taper (BSPT) male connector on the other. It is made of fiberglass reinforced polypropylene for indoor, outdoor, and field applications, and is resistant to chemicals and fertilizers. The working pressure for this fitting is up to 200 pounds per square inch (psi), or 14 bar, and it is resistant to chemicals and fertilizers making it suitable for use in indoor, outdoor, and field hydraulic applications.

Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. Push-to-connect compression fittings do not require tools or sealants, and are useful in installations where a heat source, such as a soldering torch, is prohibited. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Tefen Advanced Plastic Solutions manufactures plastic fittings for pneumatic, automation, and irrigation applications. The company, founded in 1970, meets International Organization for Standardization (ISO) 9001:2000 standards for quality assurance.
