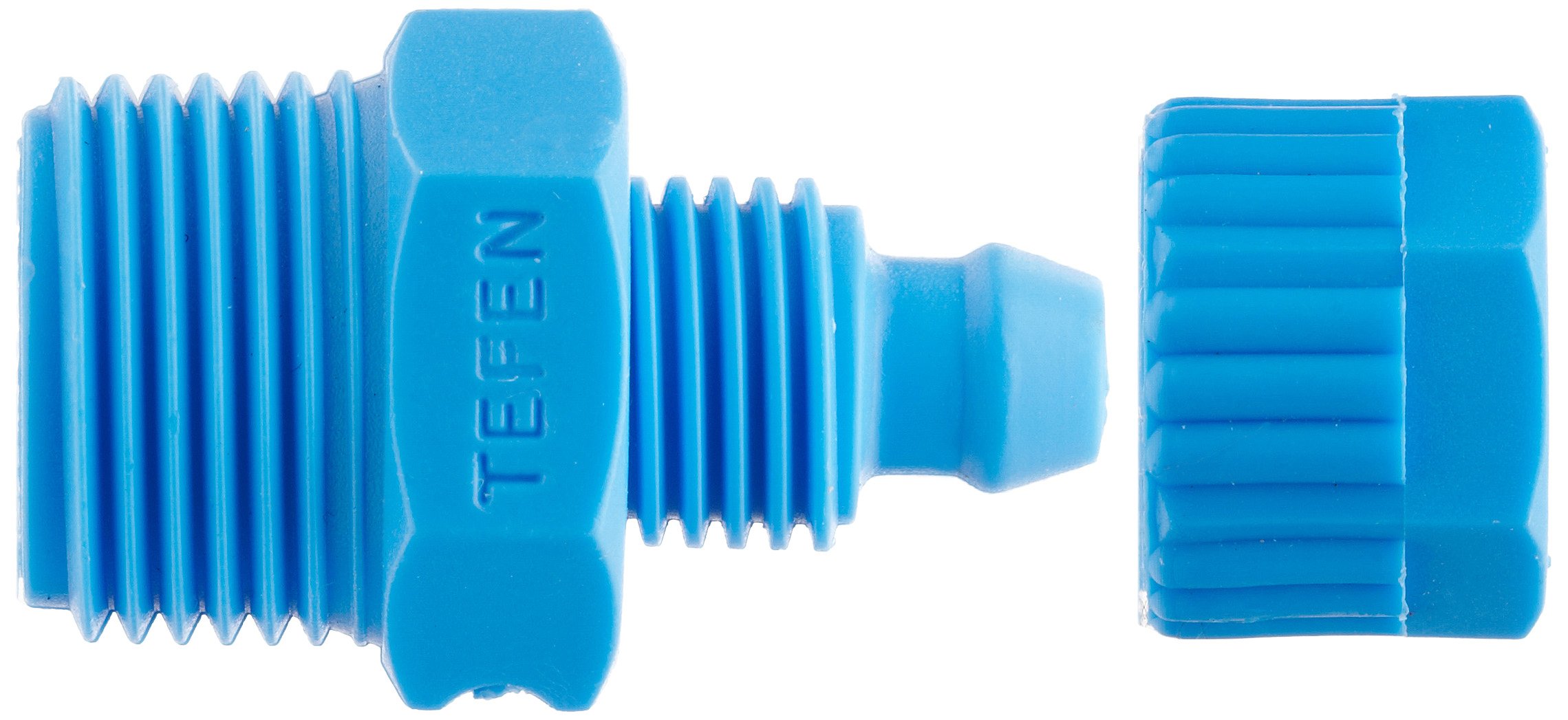

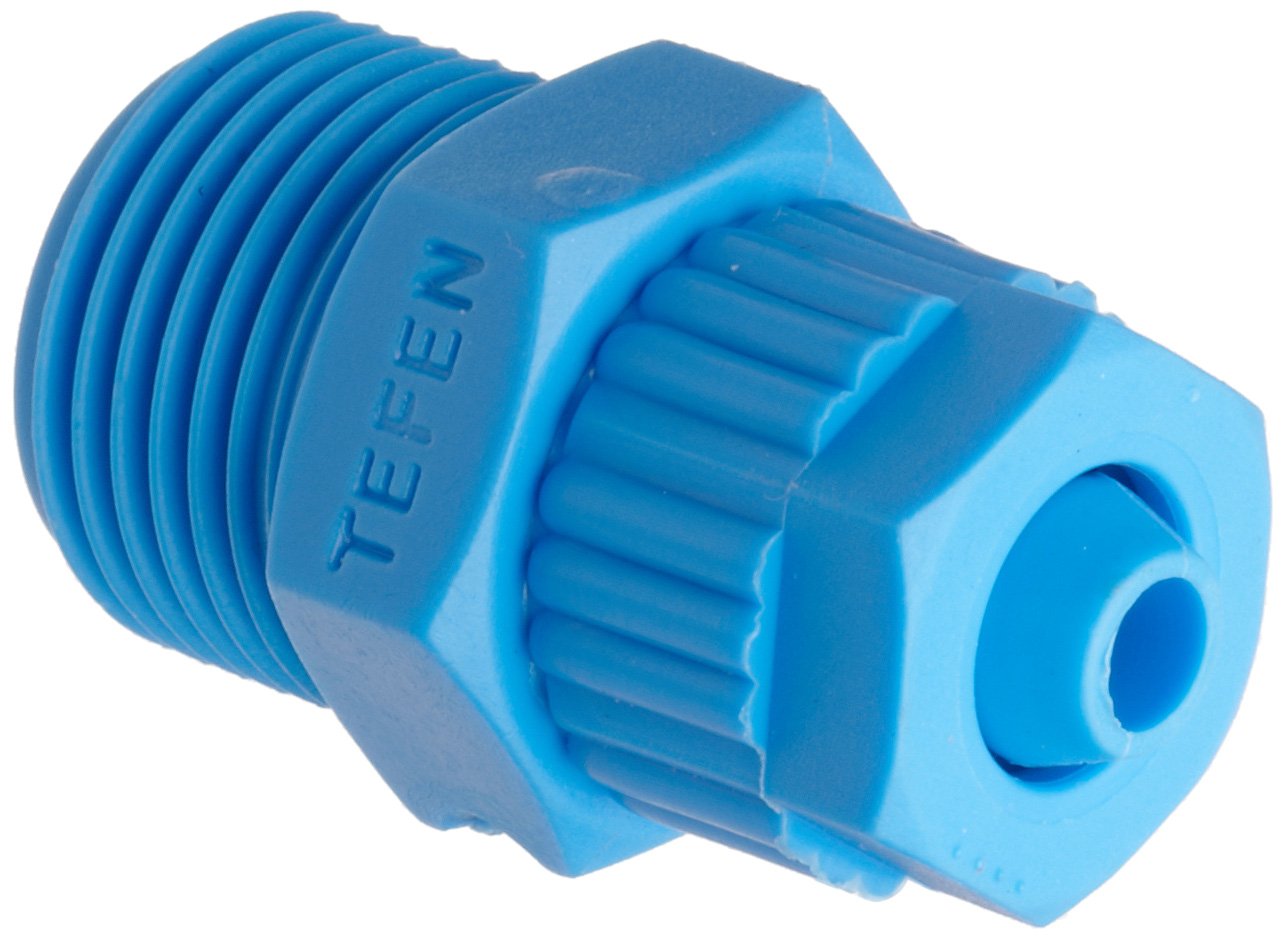

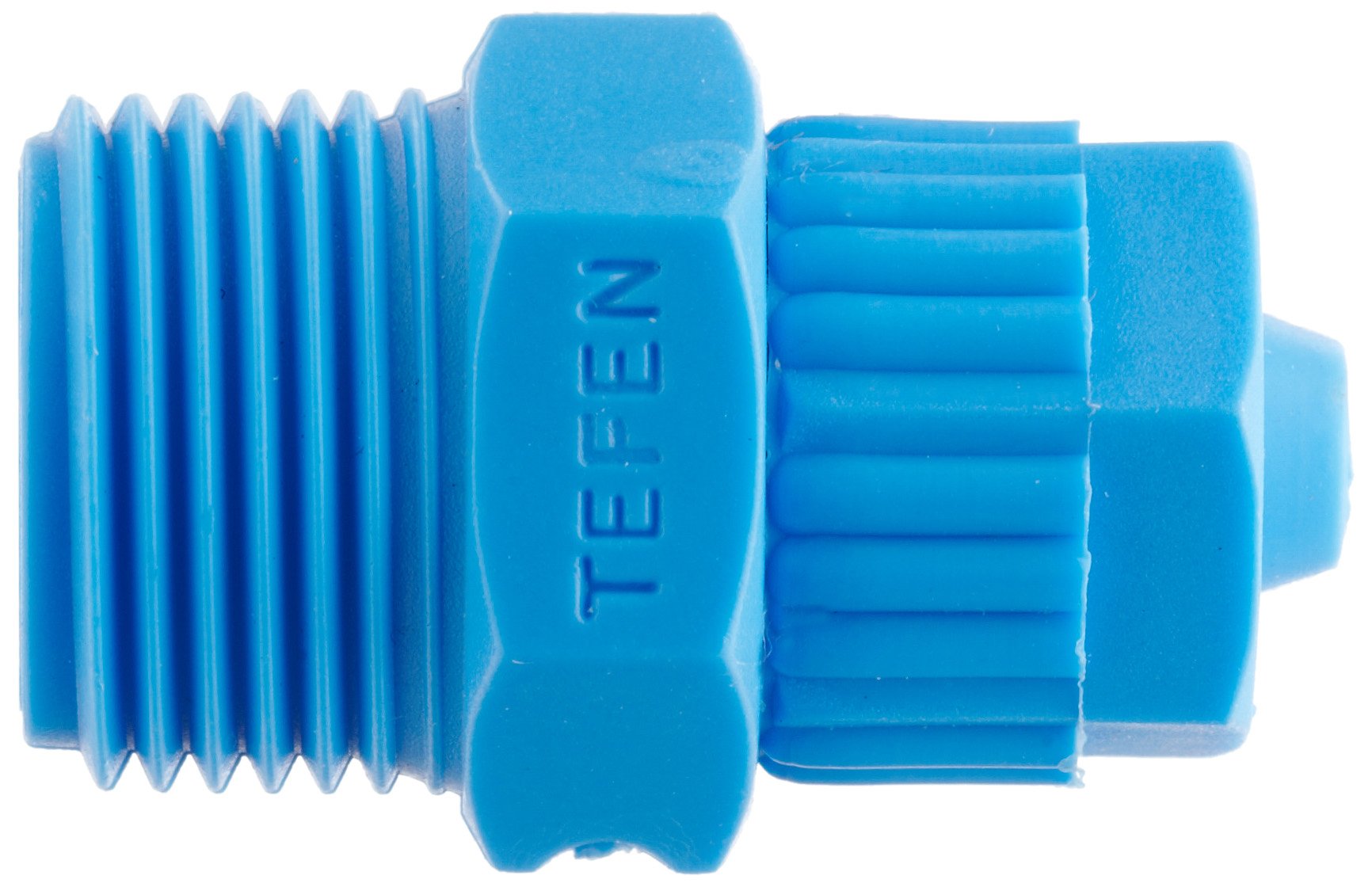

Tefen Fiberglass Polypropylene Compression Tube Fitting, Adapter, Blue, Tube OD x BSPT Male, Metric

Be the first to review this item

Product Specifications
Item Shape
Adapter
Material Type
Polypropylene (PP)
Color Name
Blue
Brand Name
Tefen
Upper Temperature Range
194  Degrees Fahrenheit
UNSPSC Code
40183100
Style Name
Compression
Maximum Working Pressure
200  PSI
LowerTemperature Range
39.2  Degrees Fahrenheit
System of Measurement
Metric
Length
n/a  inches

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Thu, Oct 2? Order in-stock items in the next 9 hrs 7 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-18 of 18
Pipe Size Pkg Qty ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All
Currently showing 1-18 of 18
6 mm Tube OD x 1/8" BSPT Male 5 B006OG522U yes $6.98 Buy Options
6 mm Tube OD x 1/4" BSPT Male 5 B006OG51NA yes $5.92 Buy Options
6 mm Tube OD x 3/8" BSPT Male 5 B006OG53JM yes $5.49 Buy Options
6 mm Tube OD x 1/2" BSPT Male 5 B006OG513K yes $7.10 Buy Options
6 mm Tube OD x 3/4" BSPT Male 5 B006OG52NE yes $5.62 Buy Options
8 mm Tube OD x 1/8" BSPT Male 5 B006OG555Y yes $5.92 Buy Options
8 mm Tube OD x 1/4" BSPT Male 5 B006OG54PA yes $8.98 Buy Options
8 mm Tube OD x 3/8" BSPT Male 5 B006OG564E yes $5.89 Buy Options
8 mm Tube OD x 1/2" BSPT Male 5 B006OG5446 yes $7.48 Buy Options
8 mm Tube OD x 3/4" BSPT Male 5 B006OG55OU yes $8.03 Buy Options
10 mm Tube OD x 1/4" BSPT Male 5 B006OG4VTU yes $7.01 Buy Options
10 mm Tube OD x 3/8" BSPT Male 5 B006OG4X98 yes $8.67 Buy Options
10 mm Tube OD x 1/2" BSPT Male 5 B006OG4VG8 yes $8.98 Buy Options
10 mm Tube OD x 3/4" BSPT Male 5 B006OG4WRQ yes $9.55 Buy Options
12 mm Tube OD x 1/4" BSPT Male 5 B006OG4ZXW yes $6.52 Buy Options
12 mm Tube OD x 3/8" BSPT Male 5 B006OG4YCY yes $9.07 Buy Options
12 mm Tube OD x 1/2" BSPT Male 5 B006OG4YTW yes $8.95 Buy Options
12 mm Tube OD x 3/4" BSPT Male 5 B006OG4XY8 yes $10.60 Buy Options

Key Features

  • Adapter fitting to connect two tubes with different end types
  • Metric tube connection on one end and metric male BSPT connection on the other
  • Fiberglass reinforced polypropylene for strength, resistance to chemicals and fertilizers, and insulation against heat and electricity
  • Maximum working pressure 14 bar (200 psi) at 20 degrees C
  • Maximum operating temperature range of 39.2 to 194 degrees F (4 to 90 degrees C)

Product Description

This Tefen adapter compression tube fitting, in blue, is made of fiberglass-reinforced polypropylene, has a metric tube connection and a metric male BSPT connection, and is suitable for use in hydraulic applications. This fitting is made of fiberglass-reinforced polypropylene for strength, resistance to chemicals and fertilizers, and insulation against heat and electricity. It connects two metric tubes of different end types. The tube connection is pushed into the connector and secured with a nut by tightening and the male British Standard Pipe Taper (BSPT) end connects to a female threaded tube, creating a tighter seal than straight threads. It has a maximum operating pressure rating of 14 bar, or 200 pounds per square inch (psi), at 20 degrees C and an operating temperature range of 39.2 to 194 degrees F (4 to 90 degrees C). This adapter compression tube fitting is suitable for use in outdoor, indoor and field hydraulic system applications.

Tube fittings are components used for connecting, branching, terminating, and changing the direction of tubing in pneumatic and hydraulic systems. They are made of brass, stainless steel, PBT (polybutylene terephthalate), and other materials that resist corrosion and wear. Tube fittings have various types of connections, including threaded, welded, barbed, and push-to-connect (also called one-touch). Push-to-connect connections do not require tools or sealants. Tube fittings are used in various applications, including machine tools, airplane and truck controls, and automated production lines, among others.

Tefen Advanced Plastic Solutions manufactures plastic fittings for pneumatic, automation, and irrigation applications. The company, founded in 1970, meets International Organization for Standardization (ISO) standard 9001:2000.
