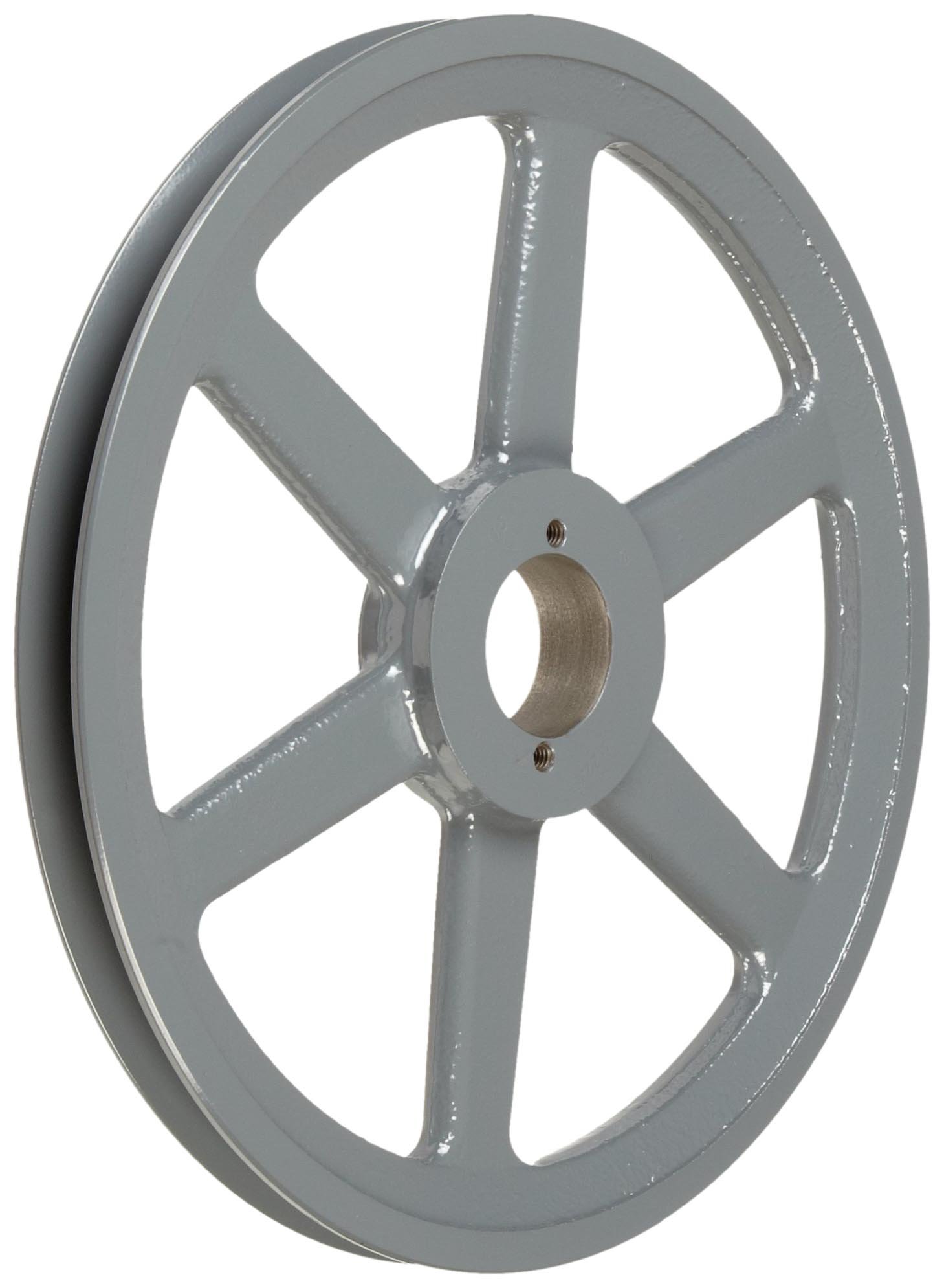

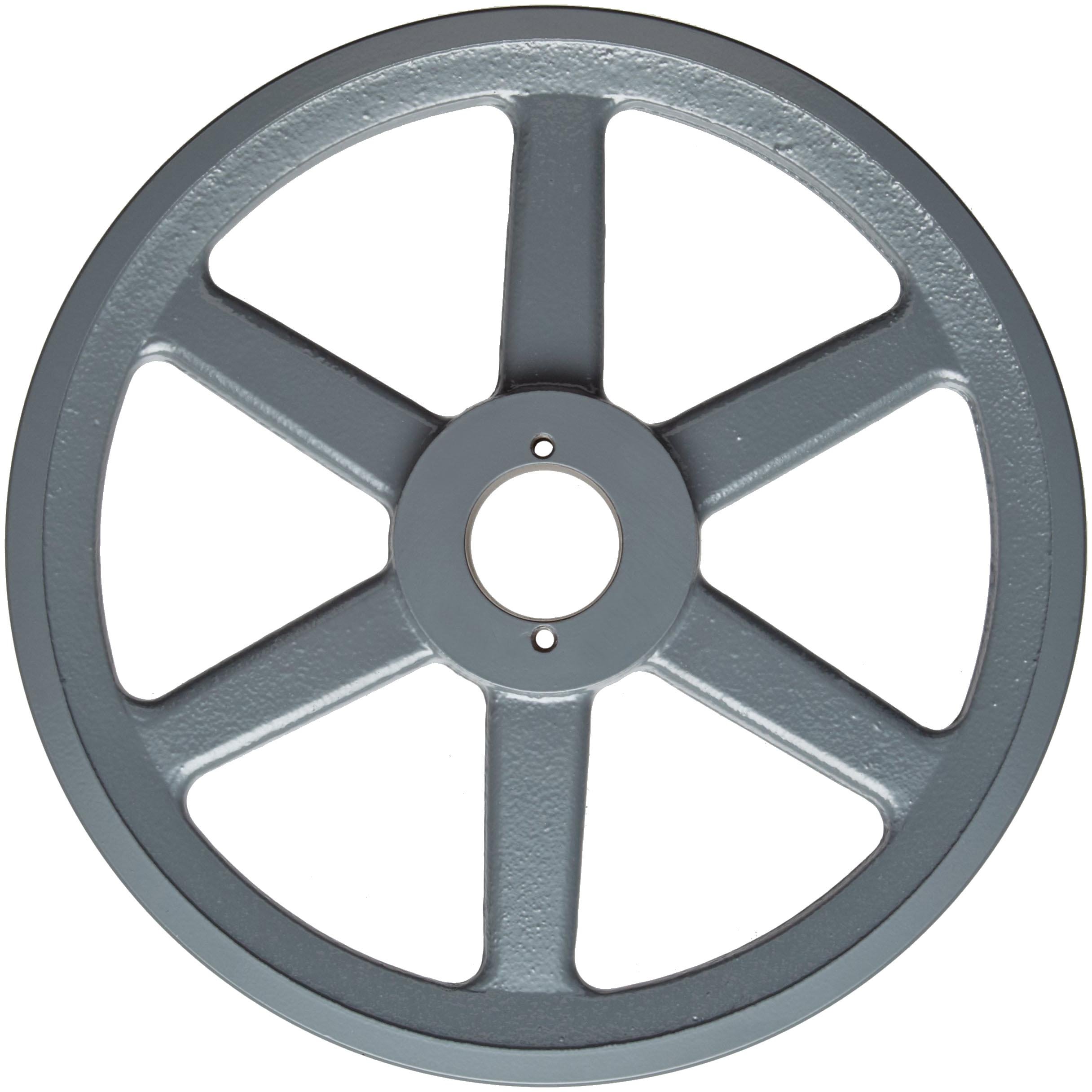

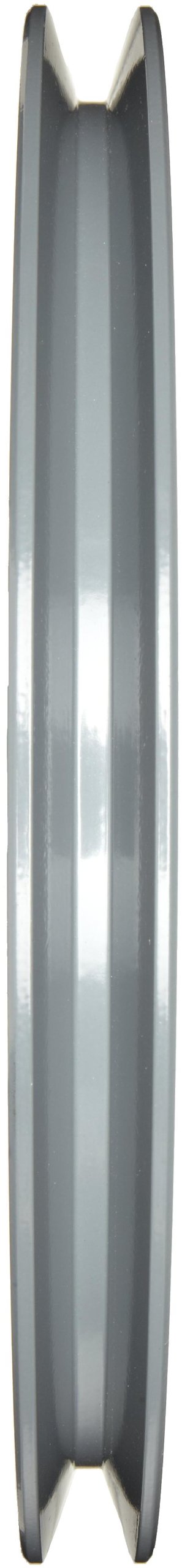

TB Woods BK115 FHP QT Bushed, 11.25" Outside Body Diameter V-Belt Sheave
Be the first to review this item
ASIN B003N17NQW
Specifications for this item
- Body Outside Diameter
- 11.25 inches
- Brand Name
- TB Woods
- EAN
- 0698672200547
- Exterior Finish
- paint
- Face Width
- 0.88 inches
- Hub Diameter
- 2.75 inches
- Hub Projection
- 0.06 inches
- Material Type
- Cast Iron
- Max Rotational Speed
- 2230 RPM
- Number of Items
- 1
- Outside Diameter
- 11.25 inches
- Overall Length
- 1.25 inches
- Part Number
- BK115
- Pitch
- 10.9 inches
- System of Measurement
- Inch
- UPC
- 698672200547
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Tuesday, May 21? Order in-stock items in the next 1 day 17 hours 46 minutes and choose One-Day Shipping at checkout.
Key Features
- Easy-mount, Sure-Grip Quick Detachable (QD) bushings
- Bored to size from 1/2 TO 1-1/2 inches
- Capacities to 15 horsepower
- Efficient, economical and lightweight
Package Details
Shipping Weight:
7 pounds
Package Size:
11.7 x 11.4 x 1.2 inches
Product Description
TB Wood’s light-duty sheaves are available in two types, both with one and two grooves. "A" sheaves are made to accommodate A (4L) belts; "B" sheaves are made for A (4L) or B (5L) belts. The two lines of sheaves have identical pitch diameters when using A or 4L belts. Wood’s light-duty sheaves can be equipped with Wood’s "QT" Sure-Grip QD-type bushings, quick-detachable tapered bushings that are split through flange and tapered surface to provide a true clamp that is comparable to a shrink fit.
