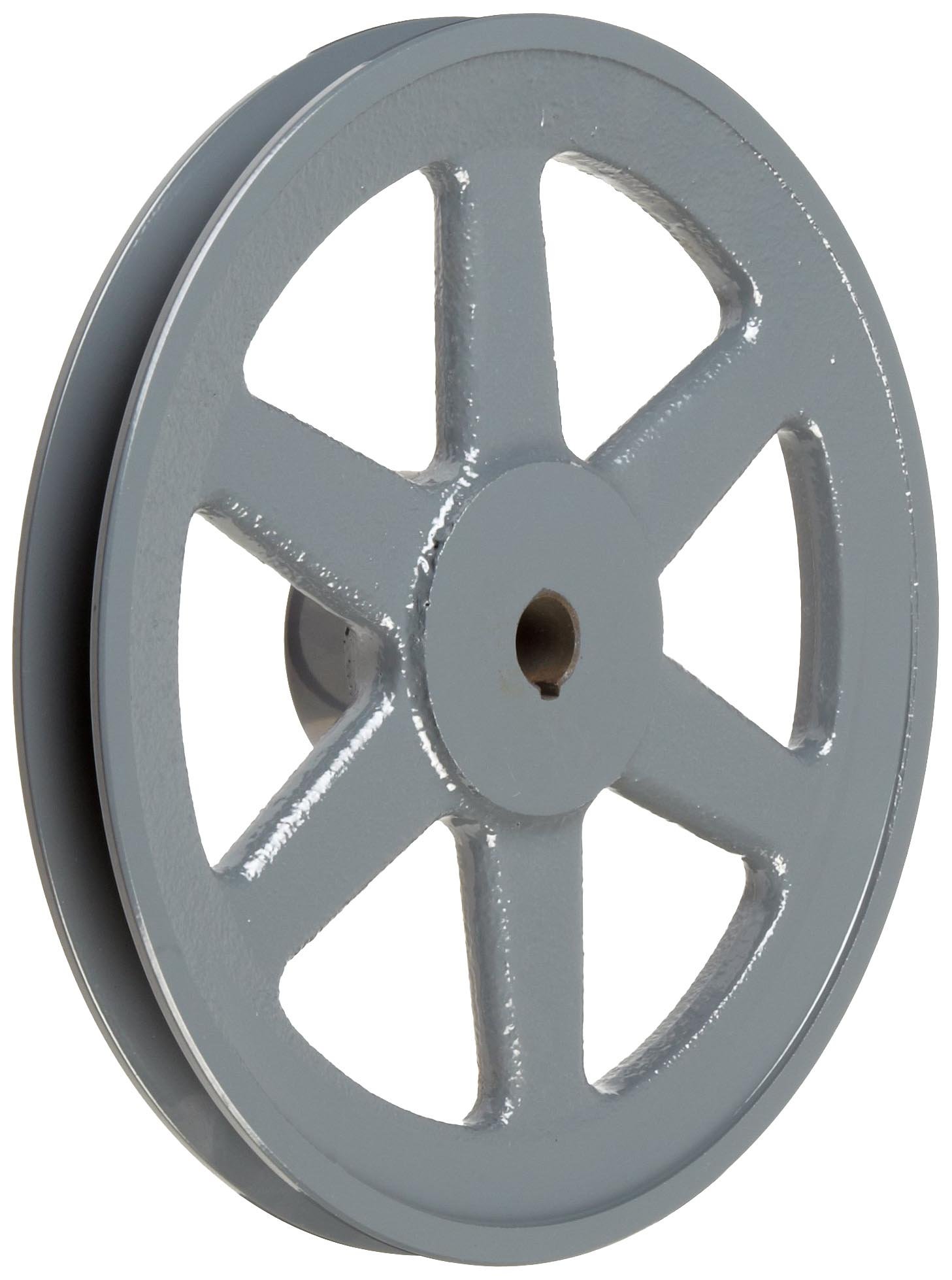

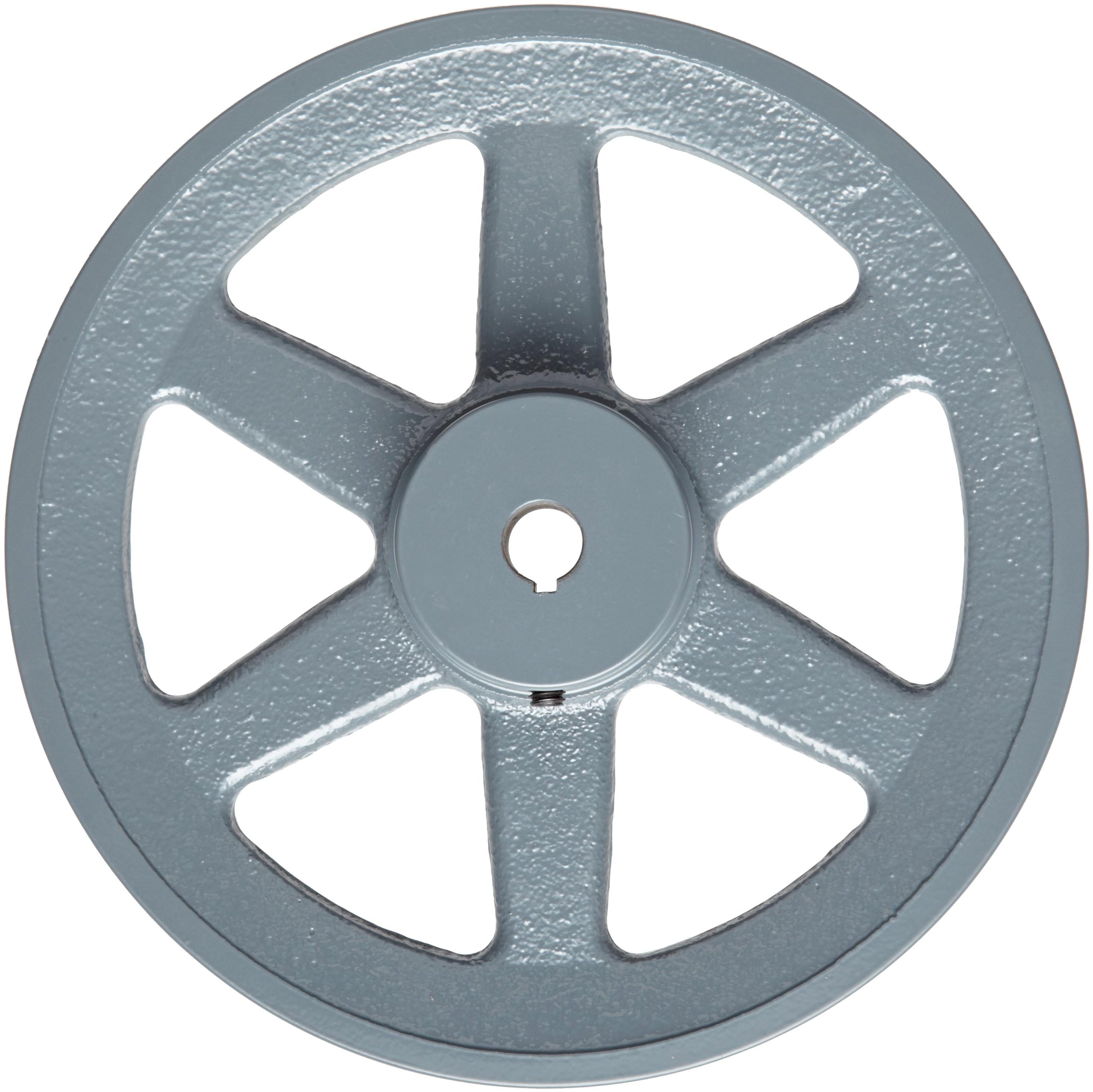

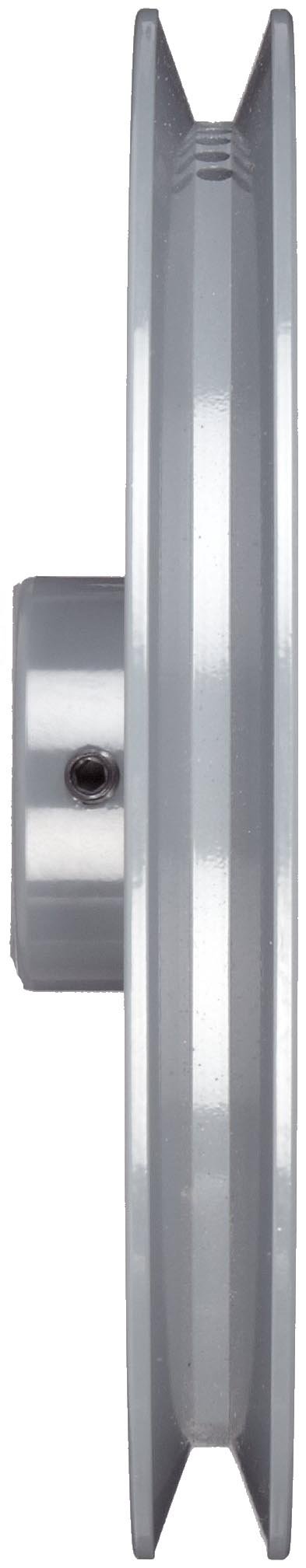

TB Woods FHP Bored-to-Size V-Belt Sheave, A Belt Section, 1 Groove, Cast Iron

Be the first to review this item

Product Specifications
Brand Name
TB Woods

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Tue, Nov 25? Order in-stock items in the next 16 hrs 54 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 21 Next 1 »
Outside Diameter Bore Diameter Max Rotational Speed

Datum ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the (and Amazon) catalog.


If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

All All All All
Currently showing 1-20 of 21 Next 1 »
1.55" 0.50"     B003N17IXK yes $12.43 Buy Options
3.25" 1.00" 7700 max rpm Unknown B003N17K7Y yes $7.14 Buy Options
3.75" 1.13"     B003N17KNS yes $18.77 Buy Options
4.95" 1.13"     B003N17KZ6 yes $39.79 Buy Options
4.95" 0.50"     B003N17KZG Usually ships in 4 to 6 weeks $39.07 Buy Options
4.95" 0.88"     B003N17L0A yes $9.87 Buy Options
4.95" 1.00"     B003N17KYW yes $13.05 Buy Options
5.25" 1.00"     B003N17L0U yes $38.04 Buy Options
5.25" 1.19"     B003N17L1O yes $40.52 Buy Options
5.25" 0.94"     B003N17L1Y yes $40.71 Buy Options
5.25" 0.75"     B003N17L28 yes $38.04 Buy Options
5.25" 0.63"     B003N17L2I yes $10.04 Buy Options
5.45" 0.50"     B003N17LBY Usually ships in 4 to 6 weeks $14.26 Buy Options
5.45" 0.63"     B003N17LIM yes $14.26 Buy Options
5.45" 0.88"     B003N17LIW yes $43.49 Buy Options
5.45" 0.94"     B003N17LFK yes $25.95 Buy Options
5.45" 0.75"     B003N17LIC yes $14.26 Buy Options
5.45" 1.19"     B003N17LDW yes $43.49 Buy Options
7.95" 0.63"     B003N17MEA yes $16.45 Buy Options
7.95" 1.00"     B003N17MCC yes $65.04 Buy Options

Key Features

  • Classical V-belt sheave fits widely available, classical profile V-belts suitable for use in many existing drive designs
  • Cast iron for resistance to wear and galling
  • A belt or cross section
  • One groove for single belt use

Product Description

This TB Woods FHP bored-to-size V-belt sheave with an A belt section is made of cast iron and comes with one groove. It is a classical V-belt sheave that fits a variety of widely available, classical profile V-belts suitable for use in many existing power transmission drives. This pulley is made of cast iron for resistance to wear, corrosion, and galling. It has an A cross section and one groove for use with single belts. V-belt pulleys (sheaves) are used in a wide range of mechanical and electronic drives, including HVAC units, farm machinery, food processing equipment, and home appliances, among others.

V-belt pulleys (sheaves) are the component in a power transmission drive that transmits power to the belt. Typically made of cast iron, the pulleys and the V-belts that loop around them match in form – wide (classical) or narrow, single or multi-grooved. V-belt pulleys are found in drive designs in the agriculture, textile, printing, mining, and office equipment industries.

TB Wood's manufactures sheaves, V-belts, couplings, bushings, and other power transmission products. Founded in 1857, it is based in Chambersburg, PA.
