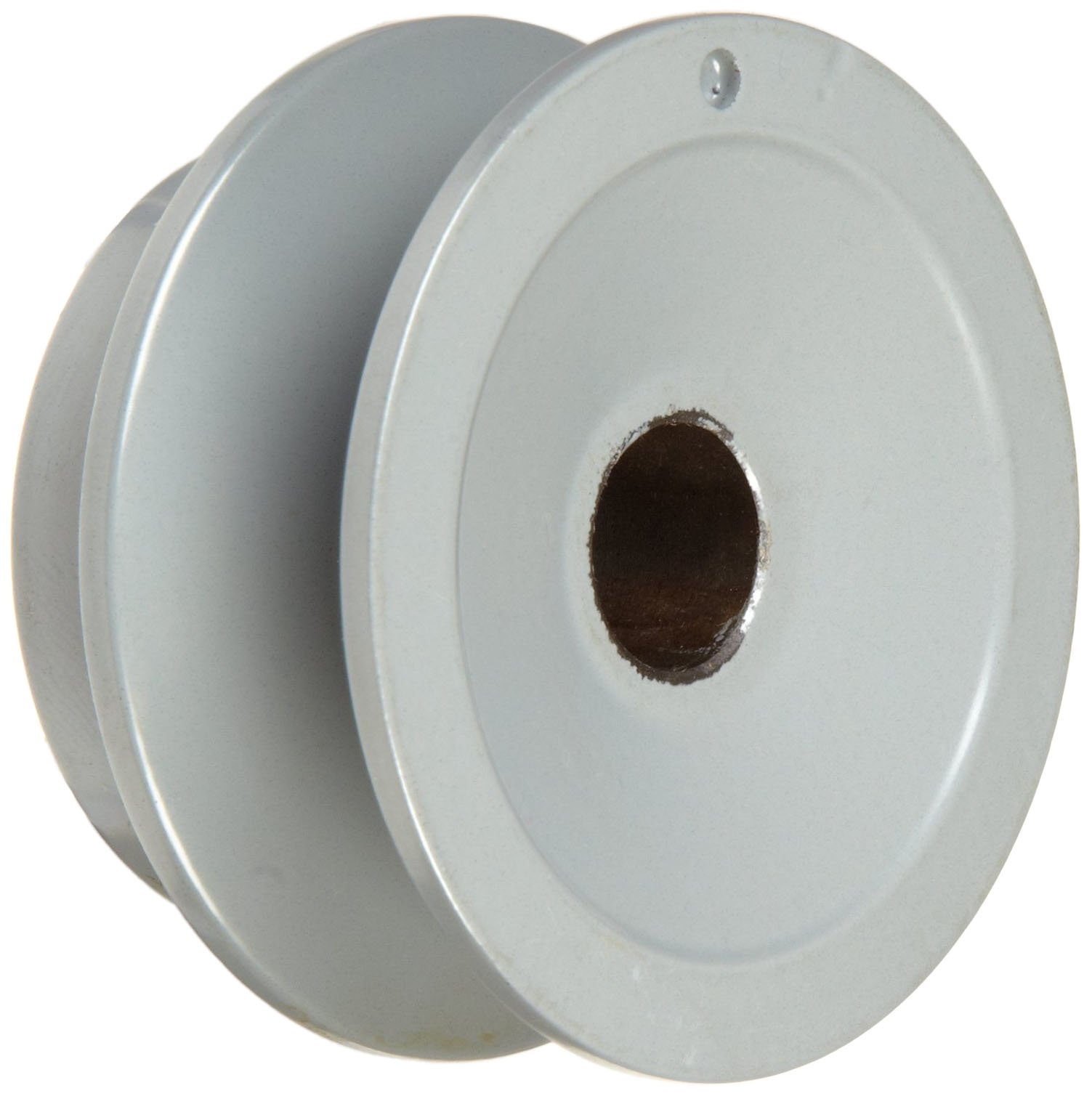

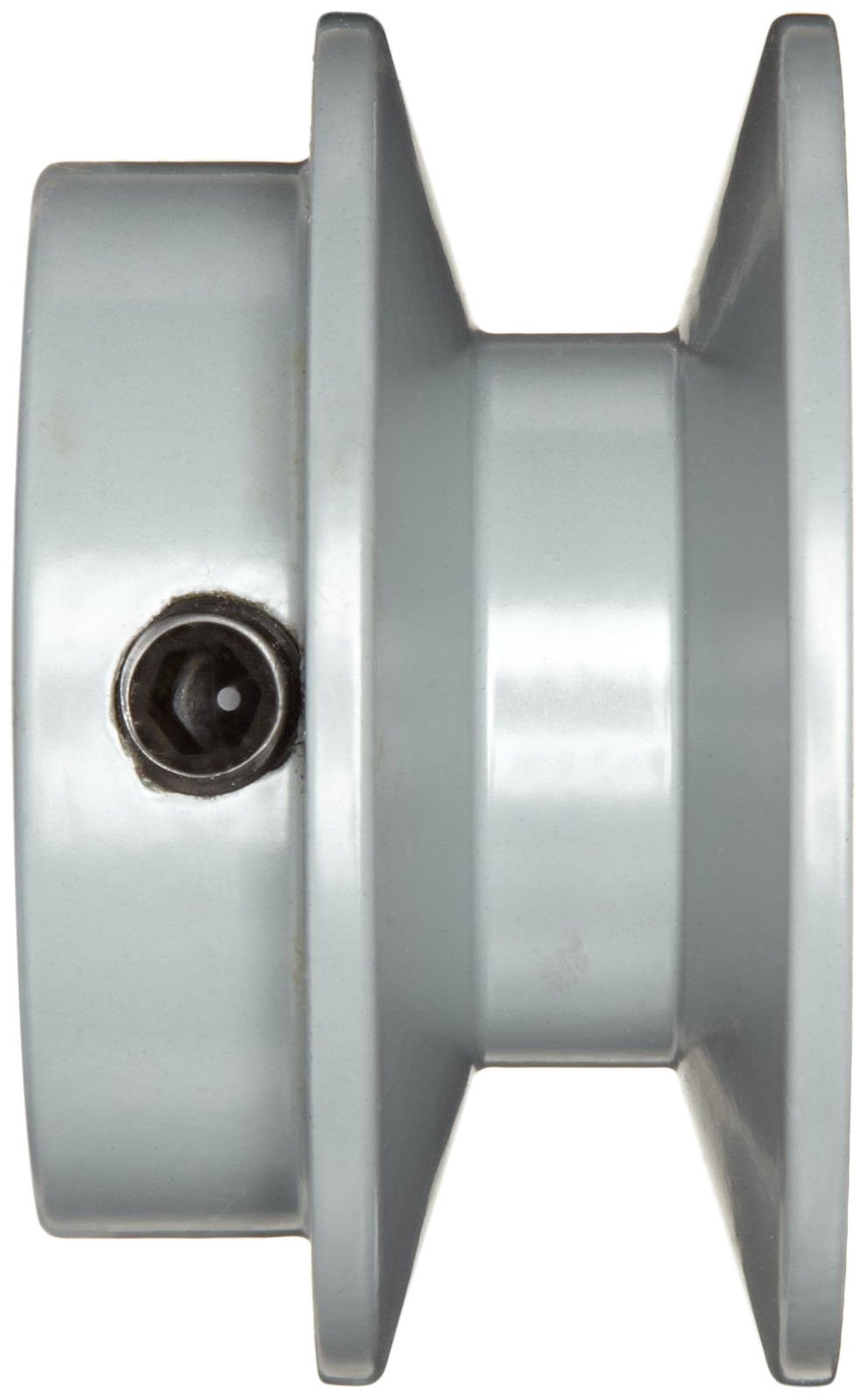

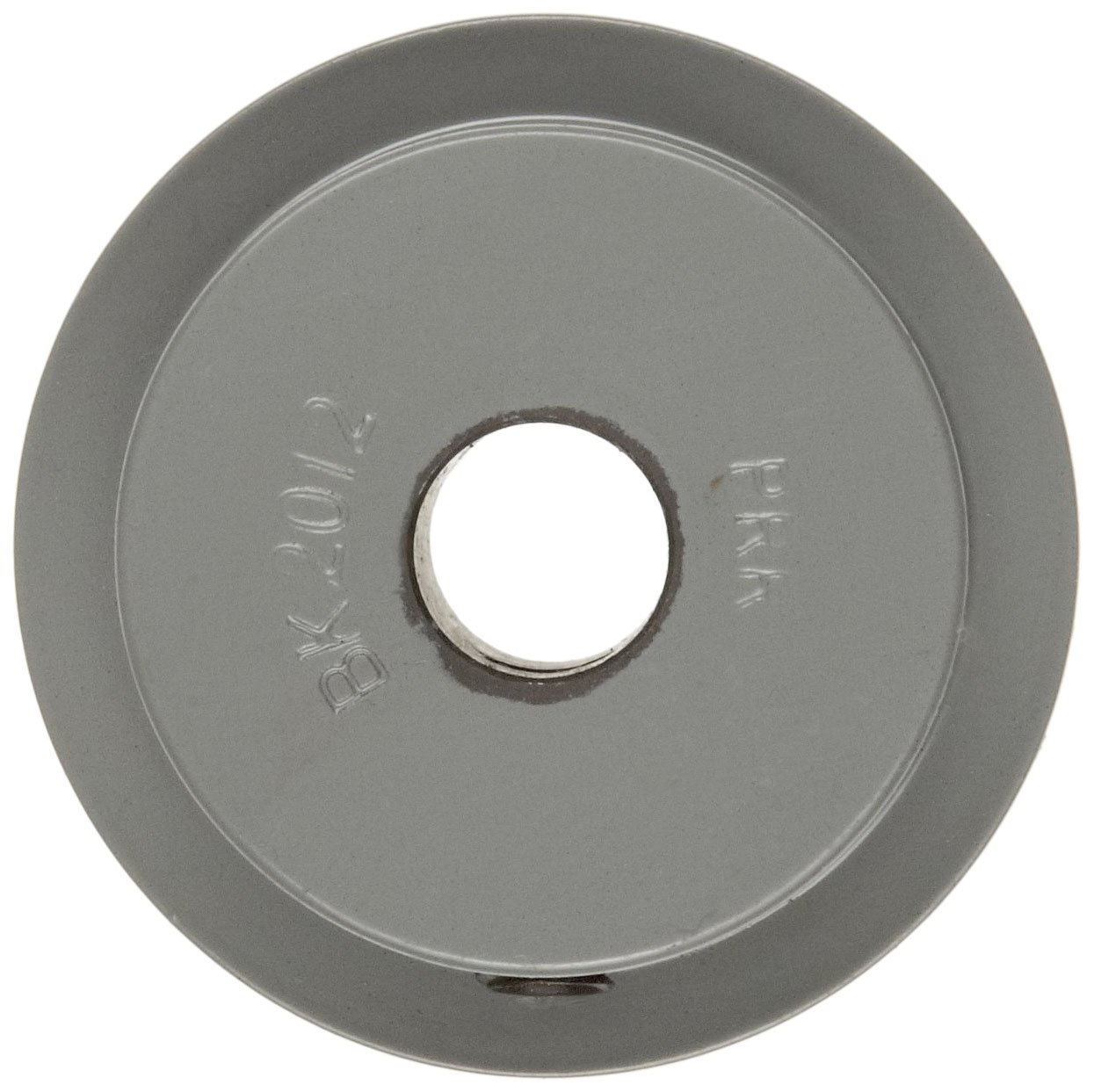

TB Woods BK2012 FHP Bored-To-Size, 2.15" Outside Body Diameter, 0.5" Bore Diameter V-Belt Sheave
Be the first to review this item
ASIN B003N17OSY
Specifications for this item
- Body Outside Diameter
- 2.15 inches
- Bore Diameter
- 0.50 inches
- Brand Name
- TB Woods
- EAN
- 0698672154659
- Exterior Finish
- paint
- Face Width
- 0.81 inches
- Hub Diameter
- 1.6875 inches
- Hub Projection
- 0.44 inches
- Material Type
- Iron
- Max Rotational Speed
- 11630 RPM
- Number of Items
- 1
- Outside Diameter
- 2.15 inches
- Overall Length
- 1.09 inches
- Part Number
- BK2012
- Pitch
- 1.8 inches
- System of Measurement
- Inch
- UPC
- 698672154659
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Friday, May 24? Order in-stock items in the next 12 hours 6 minutes and choose One-Day Shipping at checkout.
Key Features
- Easy-mount, Sure-Grip Quick Detachable (QD) bushings
- Bored to size from 1/2 TO 1-1/2 inches
- Capacities to 15 horsepower
- Efficient, economical and lightweight
Package Details
Shipping Weight:
0.6 pounds
Package Size:
2.8 x 2.8 x 1.3 inches
Product Description
TB Wood’s light-duty sheaves are available in two types, both with one and two grooves. "A" sheaves are made to accommodate A (4L) belts; "B" sheaves are made for A (4L) or B (5L) belts. The two lines of sheaves have identical pitch diameters when using A or 4L belts. Wood’s light-duty sheaves can be equipped with Wood’s "QT" Sure-Grip QD-type bushings, quick-detachable tapered bushings that are split through flange and tapered surface to provide a true clamp that is comparable to a shrink fit.
