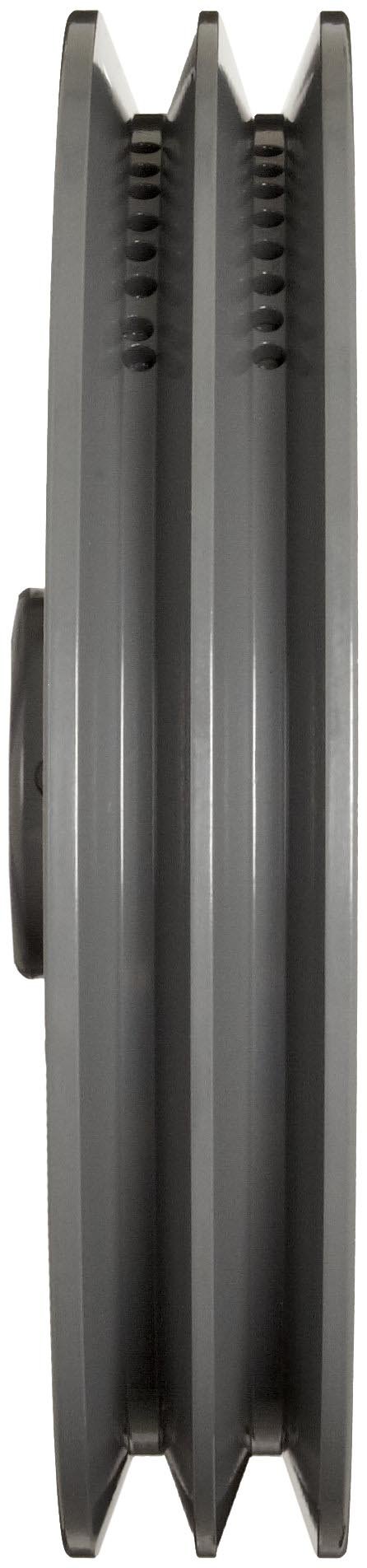

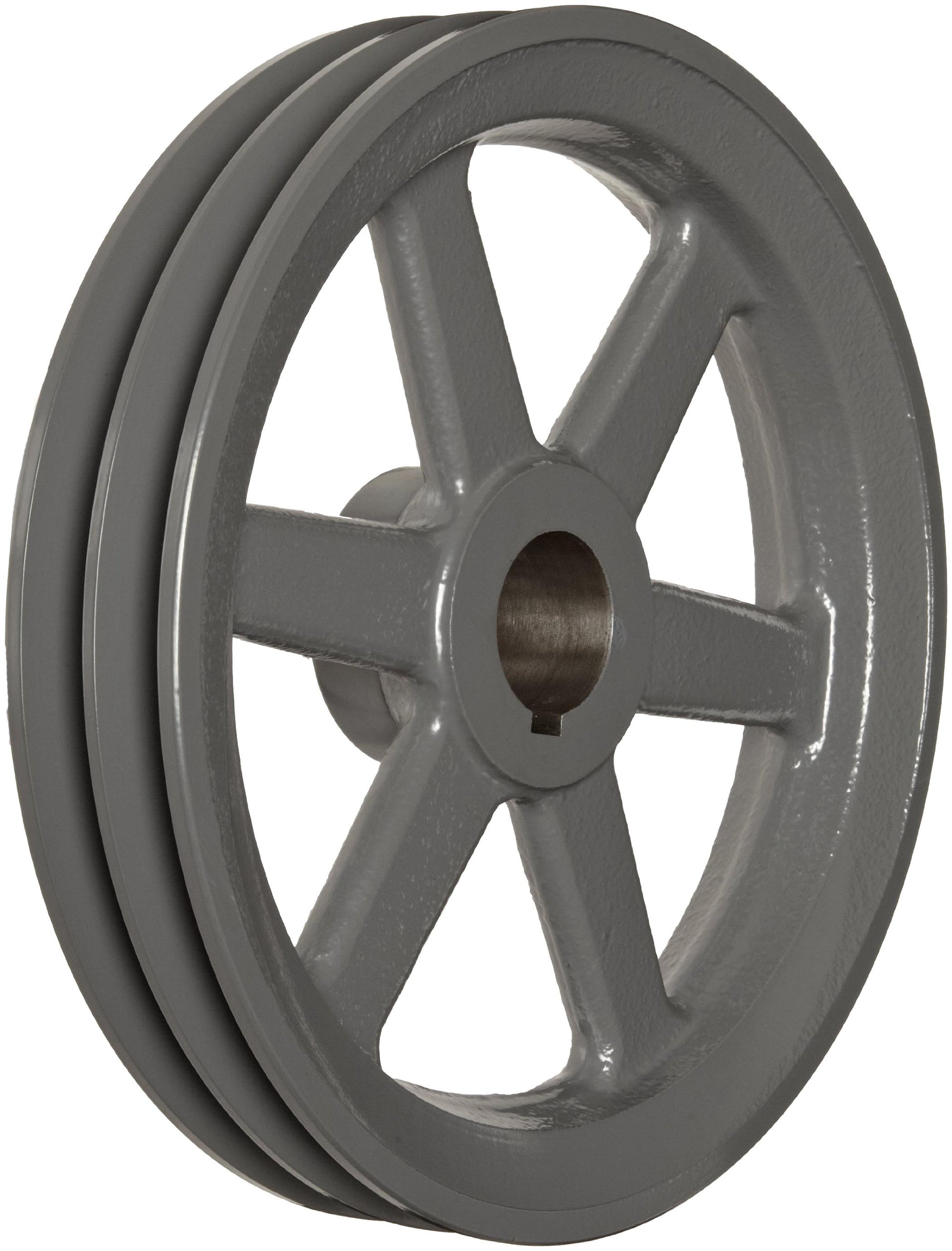

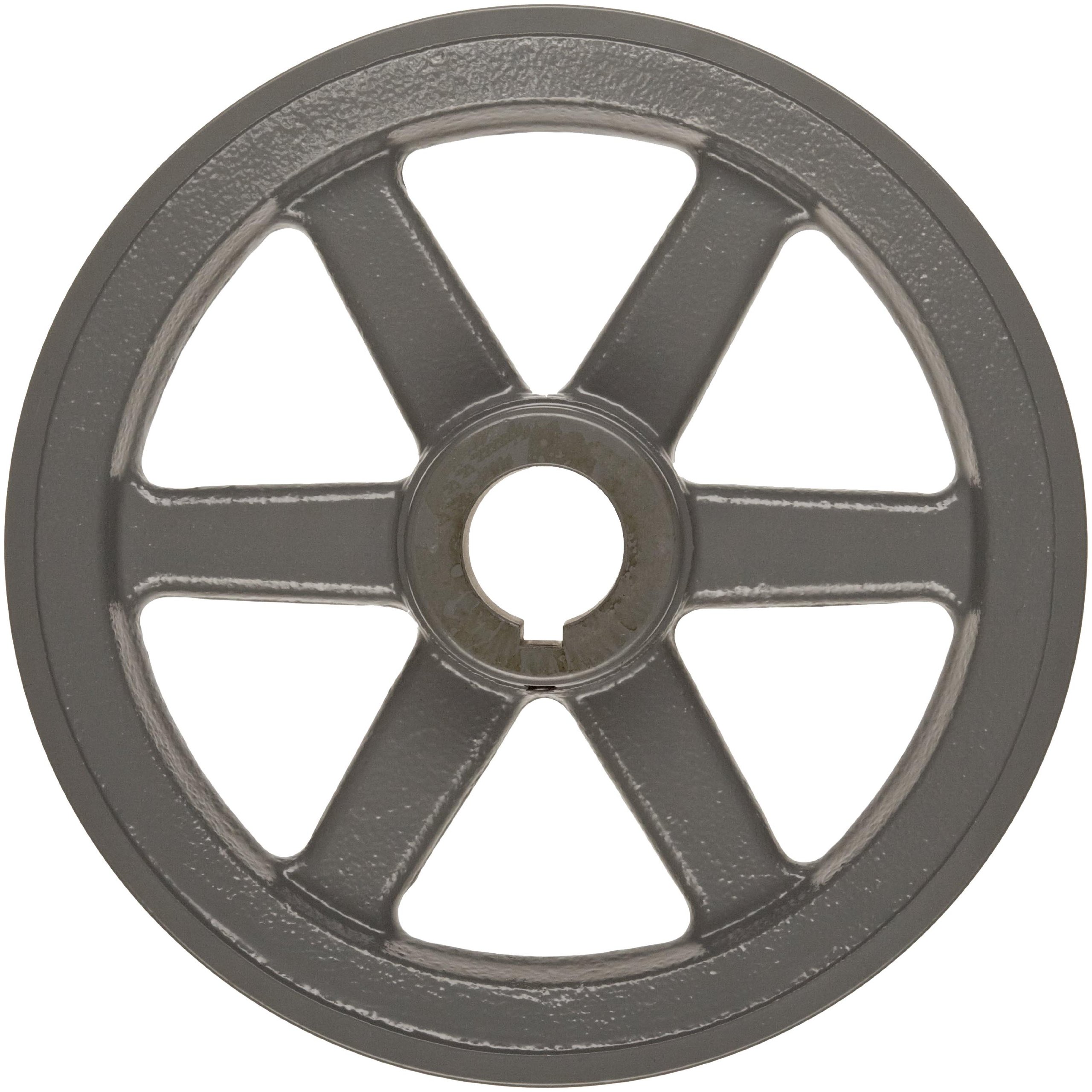

Click for larger image and other views Image is representative of the product family. Select individual products in the table below for more specific images and product specifications

How can we improve our images or Product Specifications?

TB Woods Bored-to-size V-Belt Sheave, A Belt Section, 2 Grooves, Cast Iron

Be the first to review this item

Product Specifications
UNSPSC Code
24101613
Brand Name
TB Woods

This item is no longer available

These items ship for FREE with 2-Day Shipping on orders over $50. (Details)

Want it delivered on Mon, Nov 3? Order in-stock items in the next 21 hrs 18 mins and choose One-Day Shipping at checkout.

  • Share
Currently showing 1-20 of 73 Next 20 »
Outside Diameter Bore Diameter Max Rotational Speed

Datum ASIN

The Amazon Standard Item Number (ASIN) uniquely identifies
the item in the AmazonSupply.com (and Amazon) catalog.

Available

If an item is currently out of stock, but has an estimated lead time, you can place an order now and we will ship it as soon as it is available.
You can also order more than we currently have in stock.
Read more about back orders in our help section.

Price
All All All All
Currently showing 1-20 of 73 Next 20 »
2.05" 0.63" 12200 max rpm Unknown B003N17EVG yes $37.47 Buy Options
2.05" 0.75" 12200 max rpm Unknown B003N17EV6 yes $8.42 Buy Options
2.15" 0.63" 11630 max rpm Unknown B003N17EWK yes $9.49 Buy Options
2.15" 0.75" 11630 max rpm Unknown B003N17EWA yes $27.07 Buy Options
2.25" 0.63" 11120 max rpm Unknown B003N17EXO yes $15.24 Buy Options
2.25" 0.50" 11120 max rpm Unknown B003N17EX4 yes $36.78 Buy Options
2.35" 0.88" 10640 max rpm Unknown B003N17EZ2 yes $41.24 Buy Options
2.35" 0.63" 10640 max rpm Unknown B003N17EYS yes $38.72 Buy Options
2.35" 0.75" 10640 max rpm Unknown B003N17EYI yes $40.50 Buy Options
2.35" 1.00" 10640 max rpm Unknown B003N17EY8 yes $13.82 Buy Options
2.55" 0.88" 9810 max rpm Unknown B003N17F0G yes $41.52 Buy Options
2.55" 0.63" 9810 max rpm Unknown B003N17F06 Usually ships in 1 to 3 months $16.89 Buy Options
2.55" 1.00" 9810 max rpm Unknown B003N17EZC yes $41.52 Buy Options
2.65" 0.63" 9440 max rpm Unknown B003N17F10 yes $10.91 Buy Options
2.65" 0.75" 9440 max rpm Unknown B003N17F0Q yes $45.60 Buy Options
2.75" 0.63" 9100 max rpm Unknown B003N17F2Y yes $47.34 Buy Options
2.75" 0.75" 9100 max rpm Unknown B003N17F2O yes $11.14 Buy Options
2.75" 1.00" 9100 max rpm Unknown B003N17F1K Temporarily out of stock. Order now and we'll deliver when available. $47.34 Buy Options
2.85" 0.75" 8780 max rpm Unknown B003N17F3S yes $29.31 Buy Options
2.85" 1.00" 8780 max rpm Unknown B003N17F3I yes $50.25 Buy Options

Key Features

  • Classical V-belt sheave fits widely available, classical profile V-belts suitable for use in many existing drive designs
  • Cast iron for resistance to wear and galling
  • A belt or cross section
  • Two grooves for multiple or banded belt use

Product Description

This TB Woods bored-to-size V-belt sheave with an A belt section is made of cast iron and comes with two grooves. It is a classical V-belt sheave that fits a variety of widely available, classical profile V-belts suitable for use in many existing power transmission drives. This pulley is made of cast iron for resistance to wear, corrosion, and galling. It has an A cross section and two grooves for use with multiple or banded belts. V-belt pulleys (sheaves) are used in a wide range of mechanical and electronic drives, including HVAC units, farm machinery, food processing equipment, and home appliances, among others.

V-belt pulleys (sheaves) are the component in a power transmission drive that transmits power to the belt. Typically made of cast iron, the pulleys and the V-belts that loop around them match in form – wide (classical) or narrow, single or multi-grooved. V-belt pulleys are found in drive designs in the agriculture, textile, printing, mining, and office equipment industries.

TB Wood's manufactures sheaves, V-belts, couplings, bushings, and other power transmission products. Founded in 1857, it is based in Chambersburg, PA.
