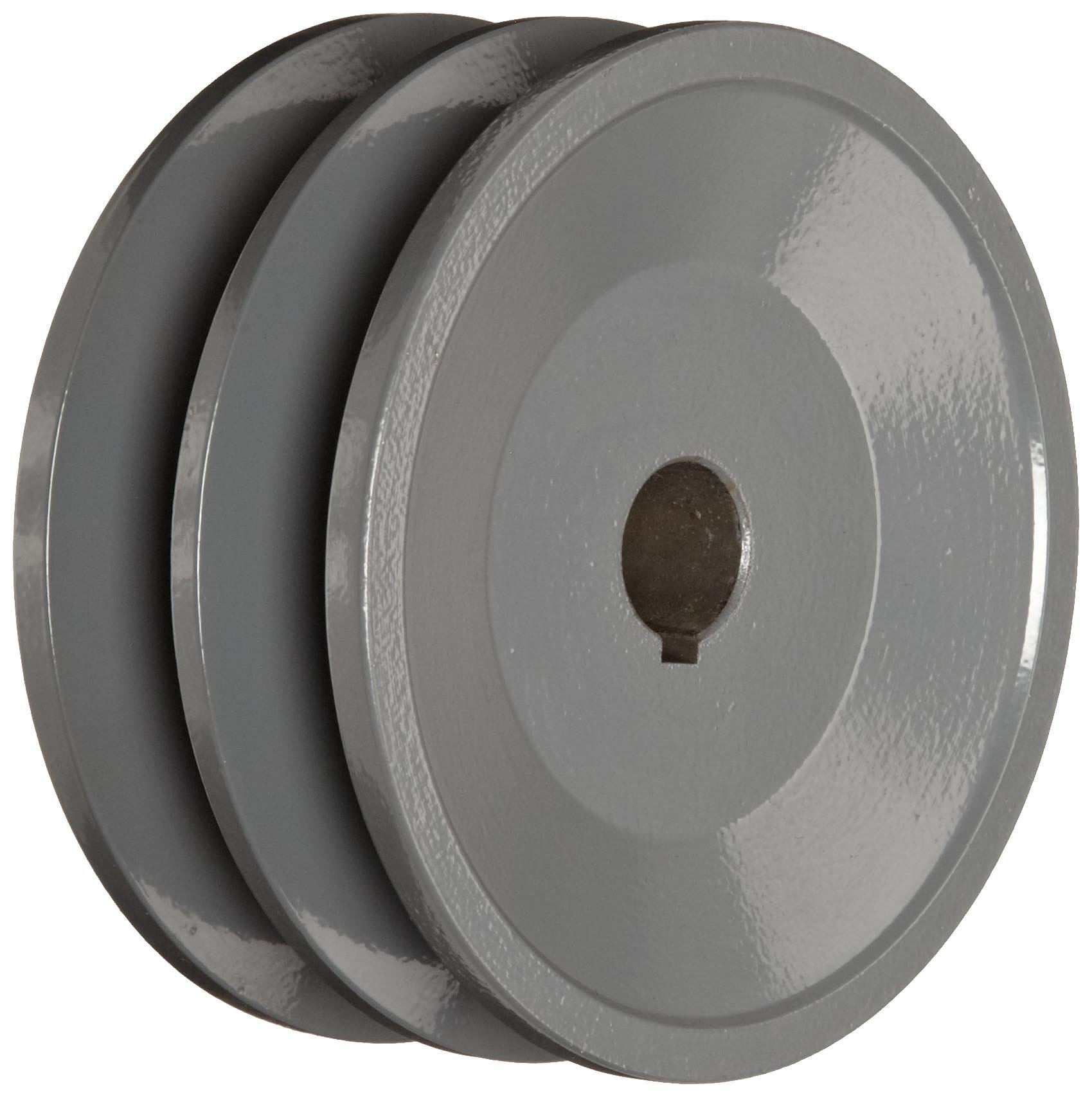

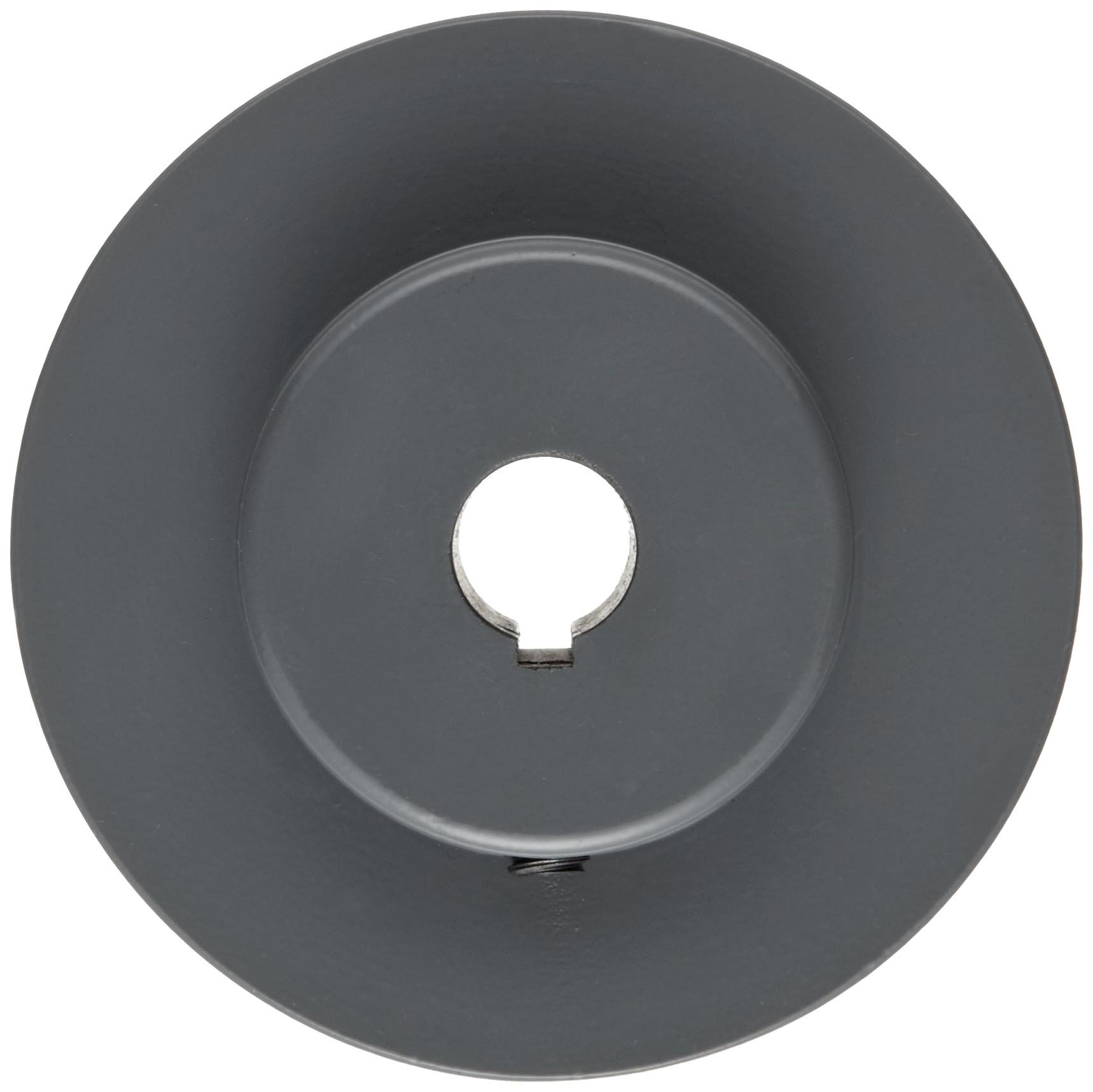

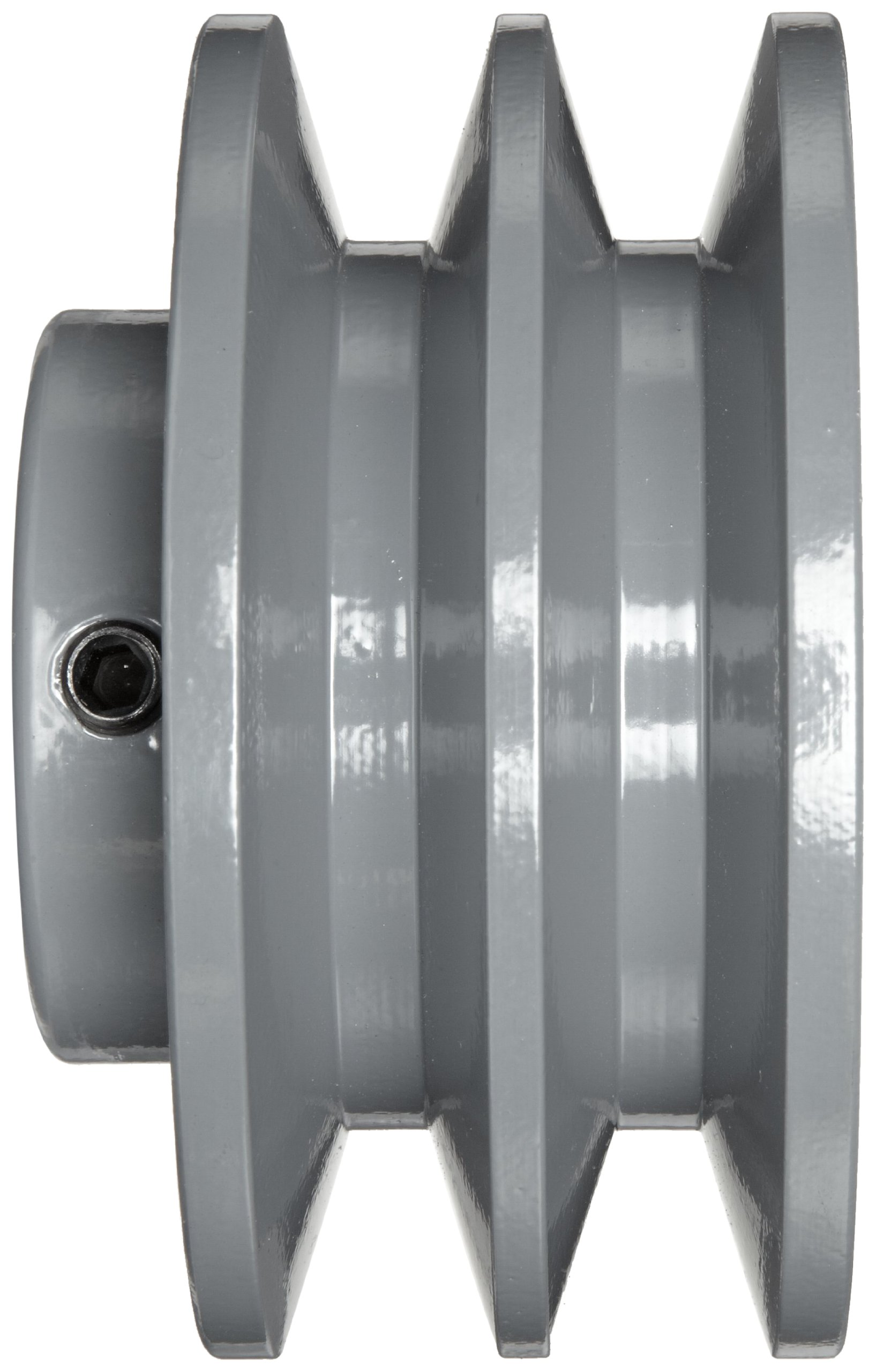

TB Woods 2BK3658 FHP Bored-To-Size, 3.75" Outside Body Diameter, 0.625" Bore Diameter V-Belt Sheave
Be the first to review this item
ASIN B003N17HQ8
Specifications for this item
- Body Outside Diameter
- 3.75 inches
- Bore Diameter
- 0.63 inches
- Brand Name
- TB Woods
- EAN
- 0698672150729
- Exterior Finish
- paint
- Face Width
- 1.75 inches
- Hub Diameter
- 2.125 inches
- Hub Projection
- 0.47 inches
- Material Type
- Iron
- Max Rotational Speed
- 6670 RPM
- Number of Items
- 1
- Outside Diameter
- 3.75 inches
- Overall Length
- 1.97 inches
- Part Number
- 2BK3658
- Pitch
- 3.4 inches
- System of Measurement
- Inch
- UPC
- 698672150729
This item ships for FREE with 2-Day Shipping on orders over $50. (Details)
Want it delivered on Tuesday, May 28? Order in-stock items in the next 22 hours 3 minutes and choose One-Day Shipping at checkout.
Key Features
- Easy-mount, Sure-Grip Quick Detachable (QD) bushings
- Bored to size from 1/2 TO 1-1/2 inches
- Capacities to 15 horsepower
- Efficient, economical and lightweight
Package Details
Shipping Weight:
3.8 pounds
Package Size:
5.7 x 5.7 x 1.6 inches
Product Description
TB Wood’s light-duty sheaves are available in two types, both with one and two grooves. "A" sheaves are made to accommodate A (4L) belts; "B" sheaves are made for A (4L) or B (5L) belts. The two lines of sheaves have identical pitch diameters when using A or 4L belts. Wood’s light-duty sheaves can be equipped with Wood’s "QT" Sure-Grip QD-type bushings, quick-detachable tapered bushings that are split through flange and tapered surface to provide a true clamp that is comparable to a shrink fit.
