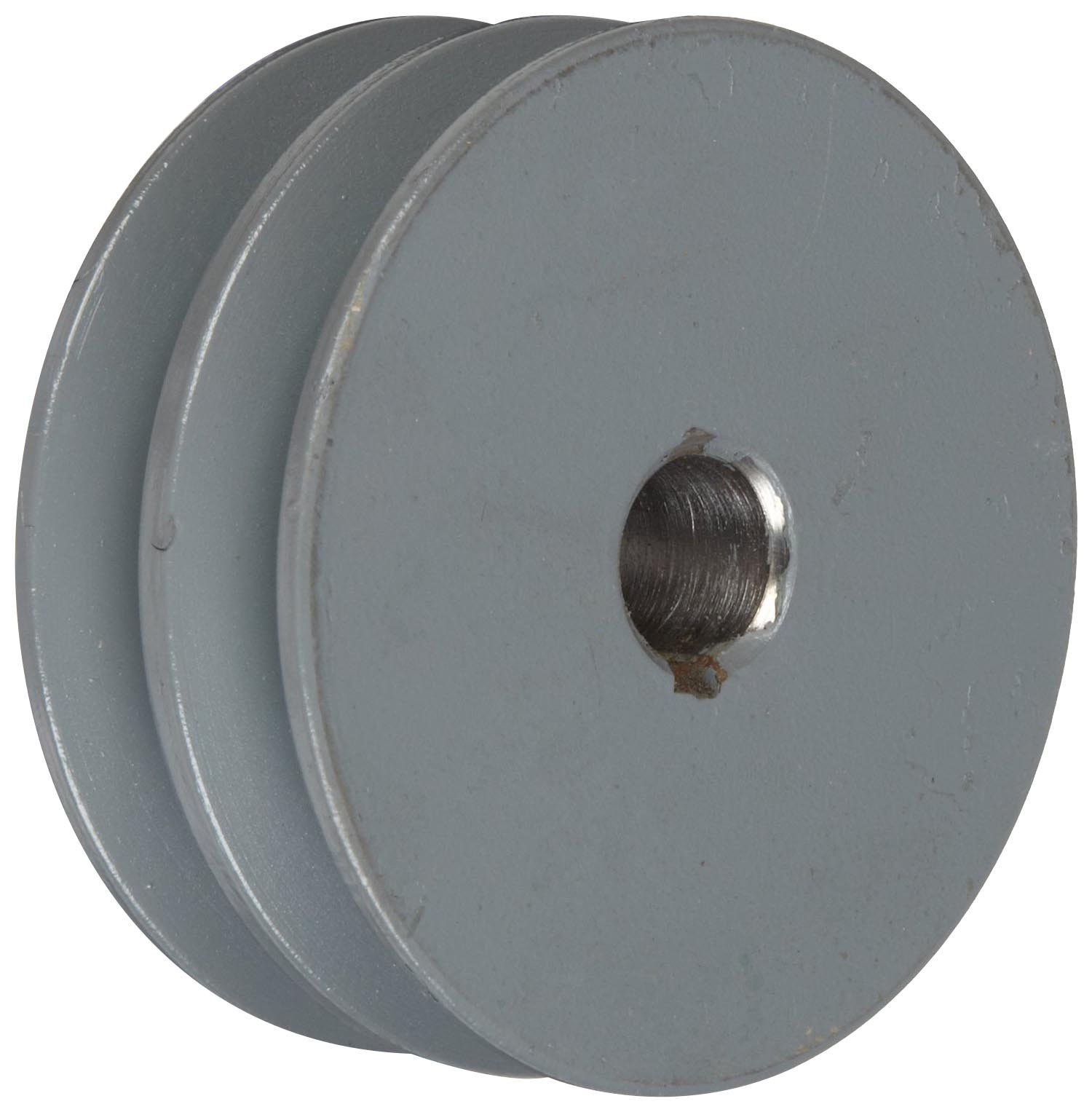

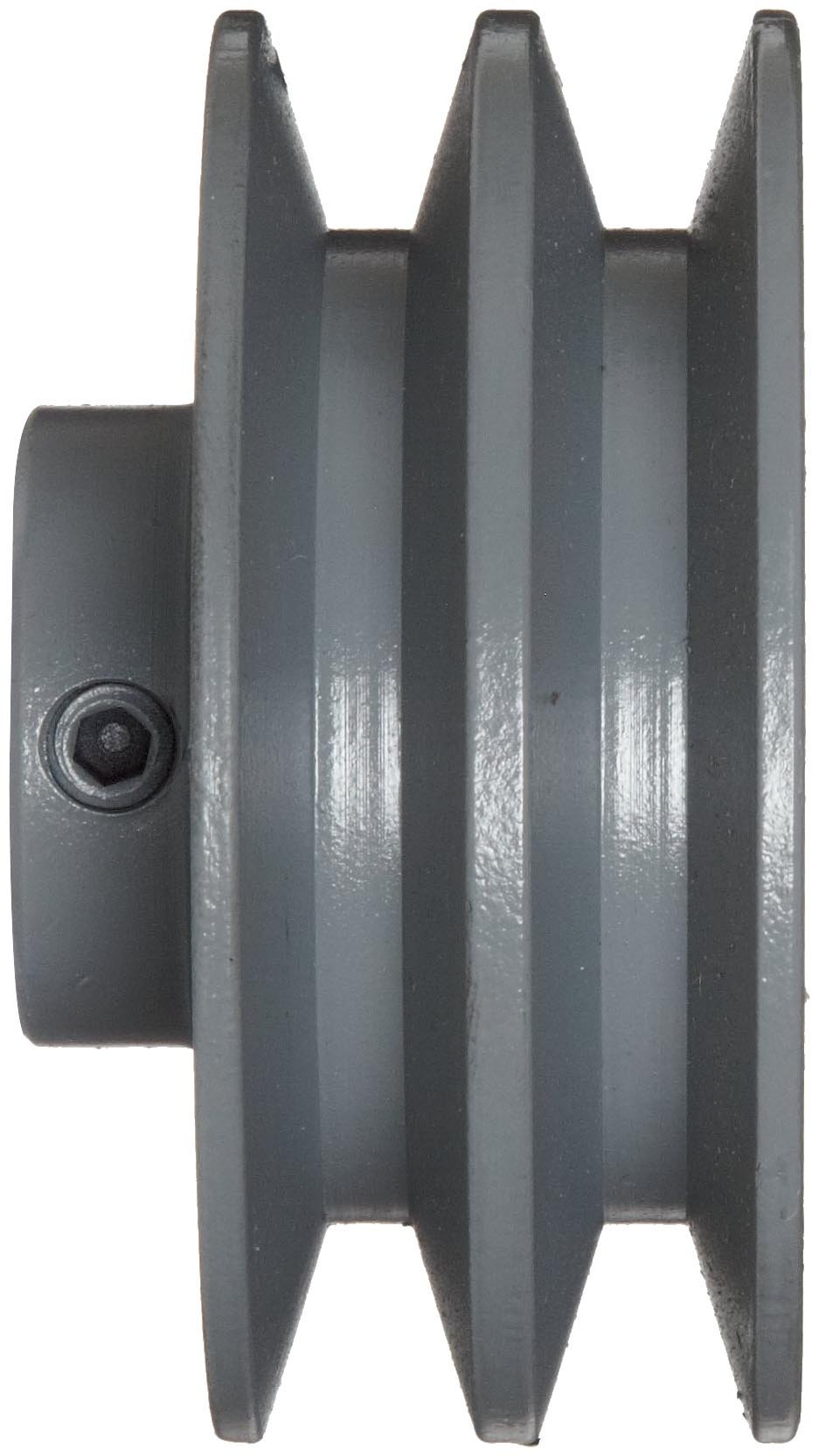

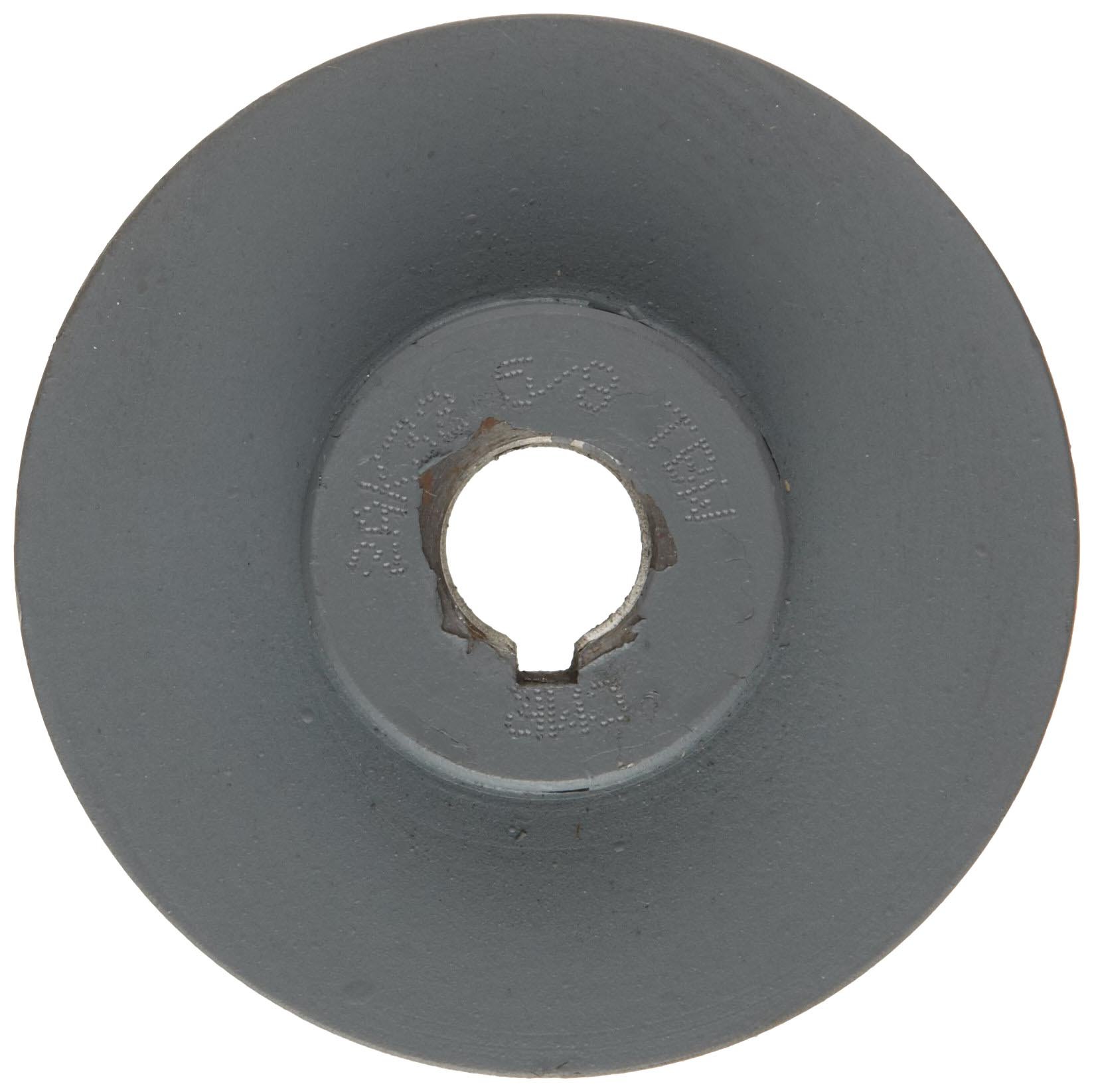

TB Woods 2AK3258 FHP Bored-To-Size, 3.25" Outside Body Diameter, 0.625" Bore Diameter V-Belt Sheave

Be the first to review this item

ASIN B003N17F88

Specifications for this item
Pitch
3  inches
Bore Diameter
0.63  inches
Part Number
2AK3258
Brand Name
TB Woods
Max Rotational Speed
7700  RPM
Hub Projection
0.47  inches
Face Width
1.38  inches
Number of Items
1
Material Type
Cast Iron
UPC
698672140928
Outside Diameter
3.25  inches
Body Outside Diameter
3.25  inches
EAN
0698672140928
Exterior Finish
paint
UNSPSC Code
24101613
System of Measurement
Inch
Overall Length
1.66  inches
Hub Diameter
1.875  inches

This item is no longer available

This item is NOT eligible for "Free Standard Shipping on orders over $50.00" promotion. (Details)

  • Share

This item has already been added to

Update Quantity Cancel

Select a List Create New List


You can add a description later

Key Features

  • Easy-mount, Sure-Grip Quick Detachable (QD) bushings
  • Bored to size from 1/2 TO 1-1/2 inches
  • Capacities to 15 horsepower
  • Efficient, economical and lightweight

Package Details

Shipping Weight: 2 pounds
Package Size: 4.6 x 4.3 x 2.1 inches

Product Description

TB Wood’s light-duty sheaves are available in two types, both with one and two grooves. "A" sheaves are made to accommodate A (4L) belts; "B" sheaves are made for A (4L) or B (5L) belts. The two lines of sheaves have identical pitch diameters when using A or 4L belts. Wood’s light-duty sheaves can be equipped with Wood’s "QT" Sure-Grip QD-type bushings, quick-detachable tapered bushings that are split through flange and tapered surface to provide a true clamp that is comparable to a shrink fit.
